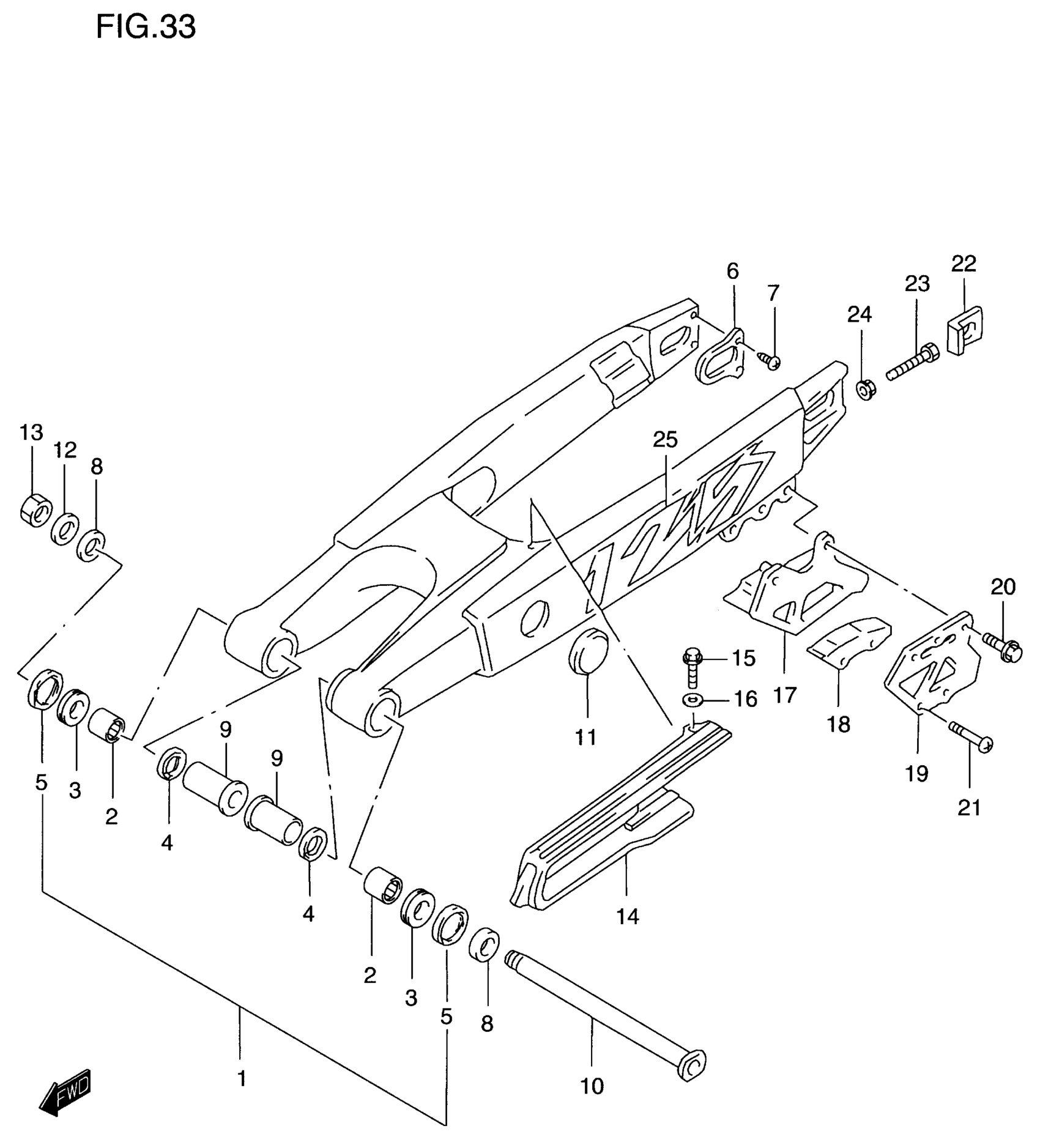

Suzuki RM125 (2000) REAR SWINGING ARM (MODEL T) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 7

61000-36E00

Unavailable

2

BEARING (22X29X30)

09263-22017

$20.38

3

BEARING, OUTER (22X35X2)

09263-22064

$30.12

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.46

5

SEAL, OUTER

61262-36E00

$6.52

6

PLATE, INNER

61128-28E00

Unavailable

7

SCREW (5X8)

09126-05009

$2.29

8

SPACER, PIVOT OUTER

61251-36E01

$12.39

9

SPACER, PIVOT INNER

61252-36E00

$60.85

10

SHAFT, PIVOT

61211-28C00

$61.42

11

CAP

09250-35003

$3.10

12

WASHER This part replaces 08322-01163.

08322-0116A

$1.86

13

NUT

09159-16007

$11.37

14

BUFFER, CHAIN TOUCH DEFENSE

61273-36E02

Unavailable

15

BOLT This part replaces 01547-06163.

01547-0616B

$2.43

16

WASHER

09169-06057

$2.92

17

GUIDE, CHAIN

61341-27C20

$50.88

18

DEFENSE, CHAIN GUIDE

61348-27C20

$35.32

19

PLATE, GUIDE OUTER

61342-28E00

$67.93

20

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

21

SCREW, UNDER (6X40)

09126-06013

$2.81

22

WASHER, CHAIN ADJUSTER

61445-28E10

Unavailable

23

BOLT (8X50)

09100-08287

$2.80

24

NUT

09159-08034

$1.62

25

EMBLEM, SWINGING ARM

68381-36E00-E8T

Unavailable
