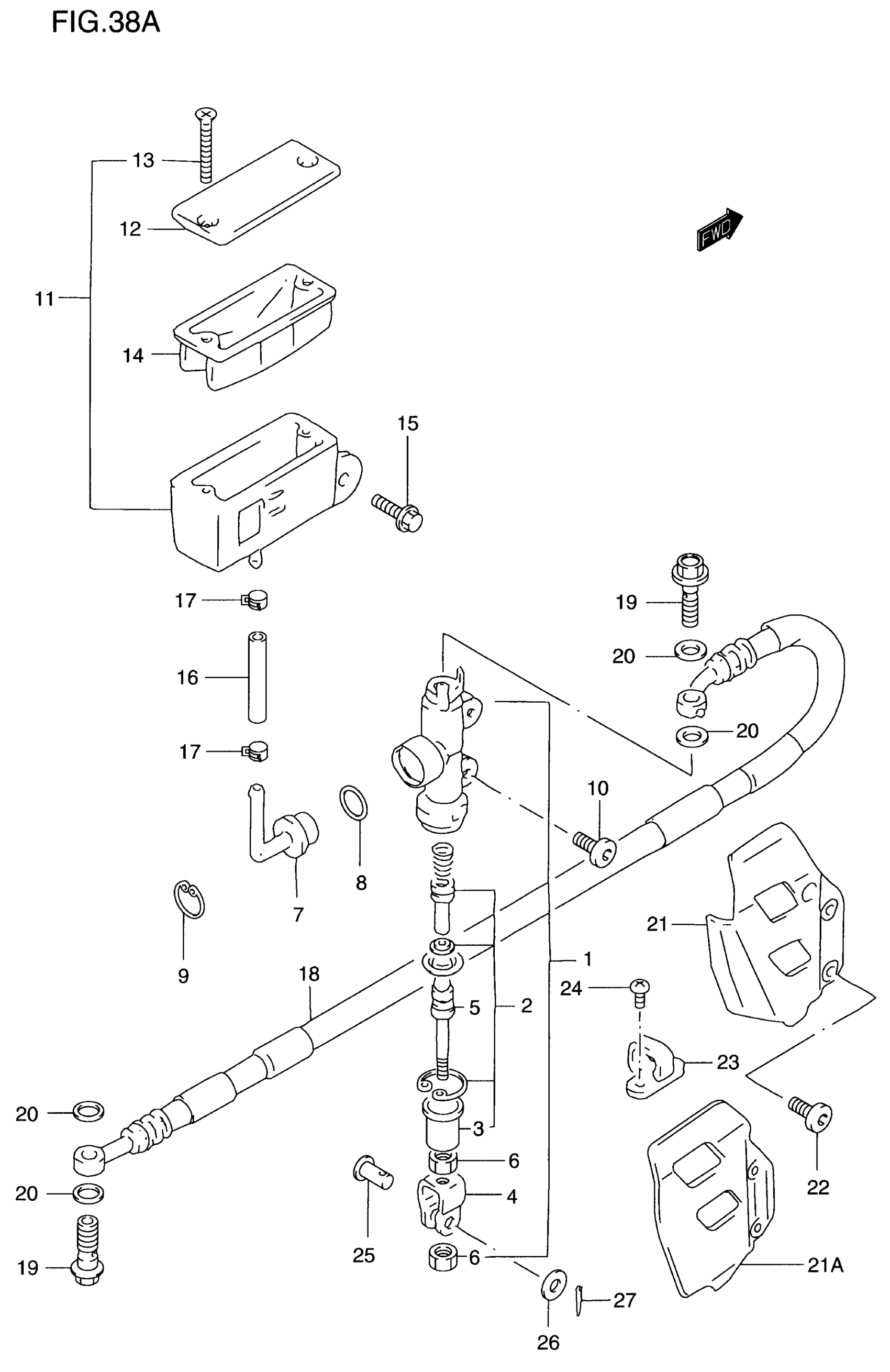

Suzuki RM125 (2000) REAR MASTER CYLINDER (MODEL V/W/X/Y) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-36E00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-00B21

$17.02

5

ROD, PUSH

69670-36E00

$29.65

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00B20

$7.01

8

O RING

69686-34200

$2.93

9

CIRCLIP

69674-00B20

$3.97

10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.38

11

TANK ASSY,RESER | Includes Item(s) 12 - 14 This part replaces 69740-36E00.

69740-36E01

$69.88

12

CAP

59669-27C01

$23.32

13

SCREW

69689-36E00

$3.23

14

DIAPHRAGM

59667-14500

$10.12

15

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

16

HOSE, RESERVOIR TANK (L:85) | CUT L:70

59731-42E00

$16.65

17

CLAMP

69735-00B20

$4.10

18

HOSE,RR BRAKE This part replaces 69480-36E00.

69480-36E02

Unavailable

19

UNION This part replaces 09360-10042.

09360-10062

$6.43

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

GUARD, REAR MASTER CYLINDER | MODEL V

43571-44E00

Unavailable

21

GUARD, REAR MASTER CYLINDER | MODEL W

43571-36E20

$58.92

21A

GUARD, REAR MASTER CYLINDER | MODEL X/Y

43570-36E00

Unavailable

22

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.38

23

GUIDE RR BRAKE (HOLE 1-5.5) | MODEL V This part replaces 61196-27C30.

61196-27C50

$6.17

23

GUIDE RR BRAKE (HOLE 1-5.5) | MODEL W/X/Y This part replaces 61196-27C30.

61196-27C50

$6.17

24

SCREW | MODEL V This part replaces 02142-05103.

02142-0510B

$1.78

24

SCREW | MODEL W/X/Y This part replaces 02142-05103.

02142-0510B

$1.78

25

PIN

09200-08048

$2.92

26

WASHER | MODEL V

09160-08074

Unavailable

26

WASHER | MODEL W/X/Y This part replaces 09160-08119.

09160-08090

$2.39

27

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
