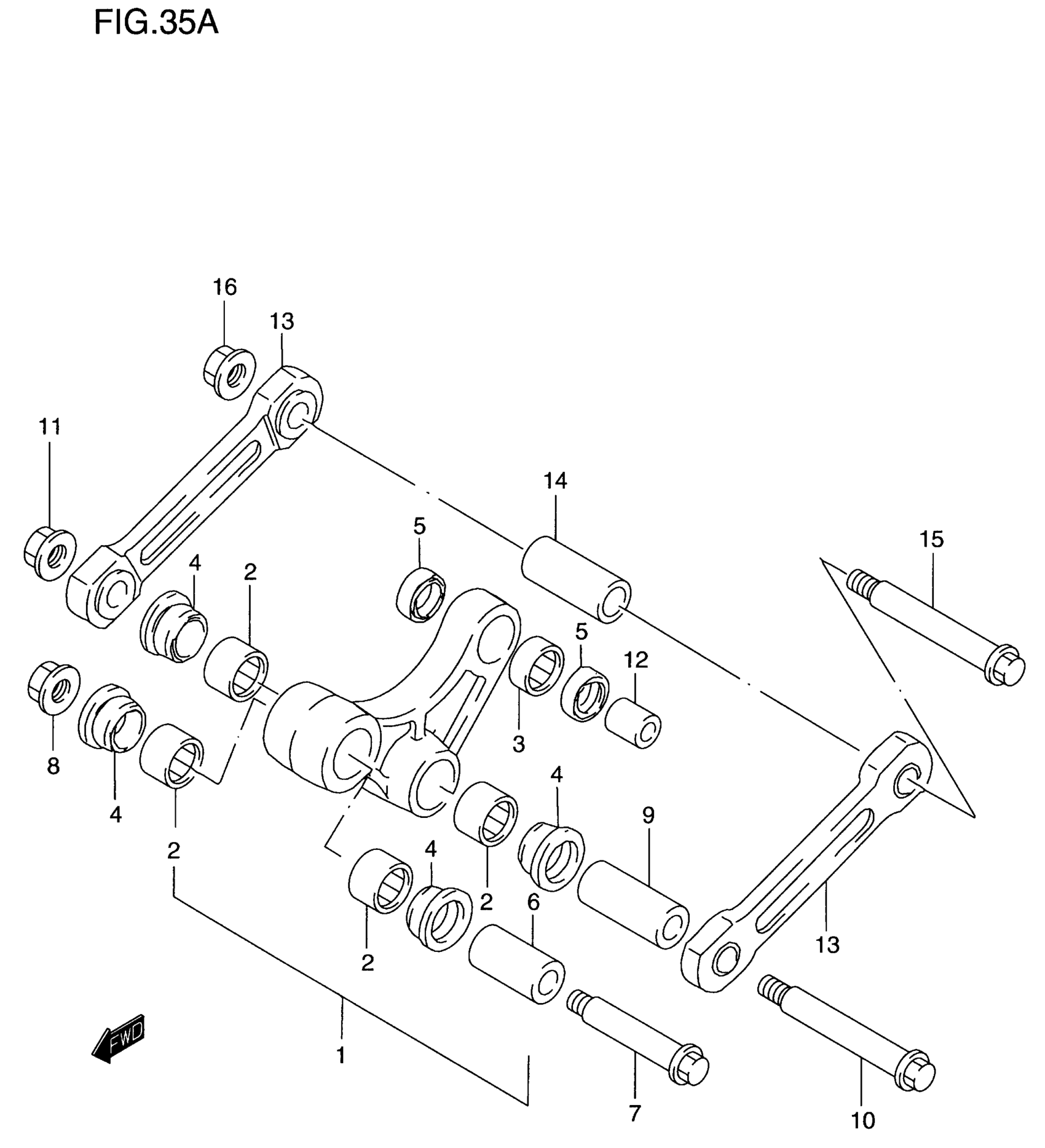

Suzuki RM125 (2000) REAR CUSHION LEVER (MODEL W/X) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 3

62600-37820

Unavailable

2

BEARING (22X28X20)

09263-22066

Unavailable

3

BEARING (20X26X12)

09263-20083

$22.49

4

SEAL (21.3X34X5.7)

62624-37E00

$8.46

5

SEAL (20X26X4.5)

09284-20001

$4.31

6

SPACER, FRONT (15X22X45)

62317-37E00

Unavailable

7

BOLT, FRONT (12X76) This part replaces 62658-37E00.

62658-37E01

$15.02

8

NUT This part replaces 08319-31128.

08319-3112A

$3.38

9

SPACER, CENTER (15X22X57)

62646-37E00

Unavailable

10

BOLT, CENTER (12X100) This part replaces 62621-37E00.

62621-37E01

$25.87

11

NUT This part replaces 08319-31128.

08319-3112A

$3.38

12

SPACER, REAR (10X20X22)

62684-36E00

$18.70

13

ROD, REAR CUSHION LEVER | MODEL W This part replaces 62640-37E00.

62640-37E11

$204.12

13

ROD, REAR CUSHION LEVER | MODEL X This part replaces 62640-37E01.

62640-37E11

$204.12

14

SPACER, ROD (15X22X57)

62646-37E00

Unavailable

15

BOLT, CENTER (12X100) This part replaces 62621-37E00.

62621-37E01

$25.87

16

NUT This part replaces 08319-31128.

08319-3112A

$3.38
