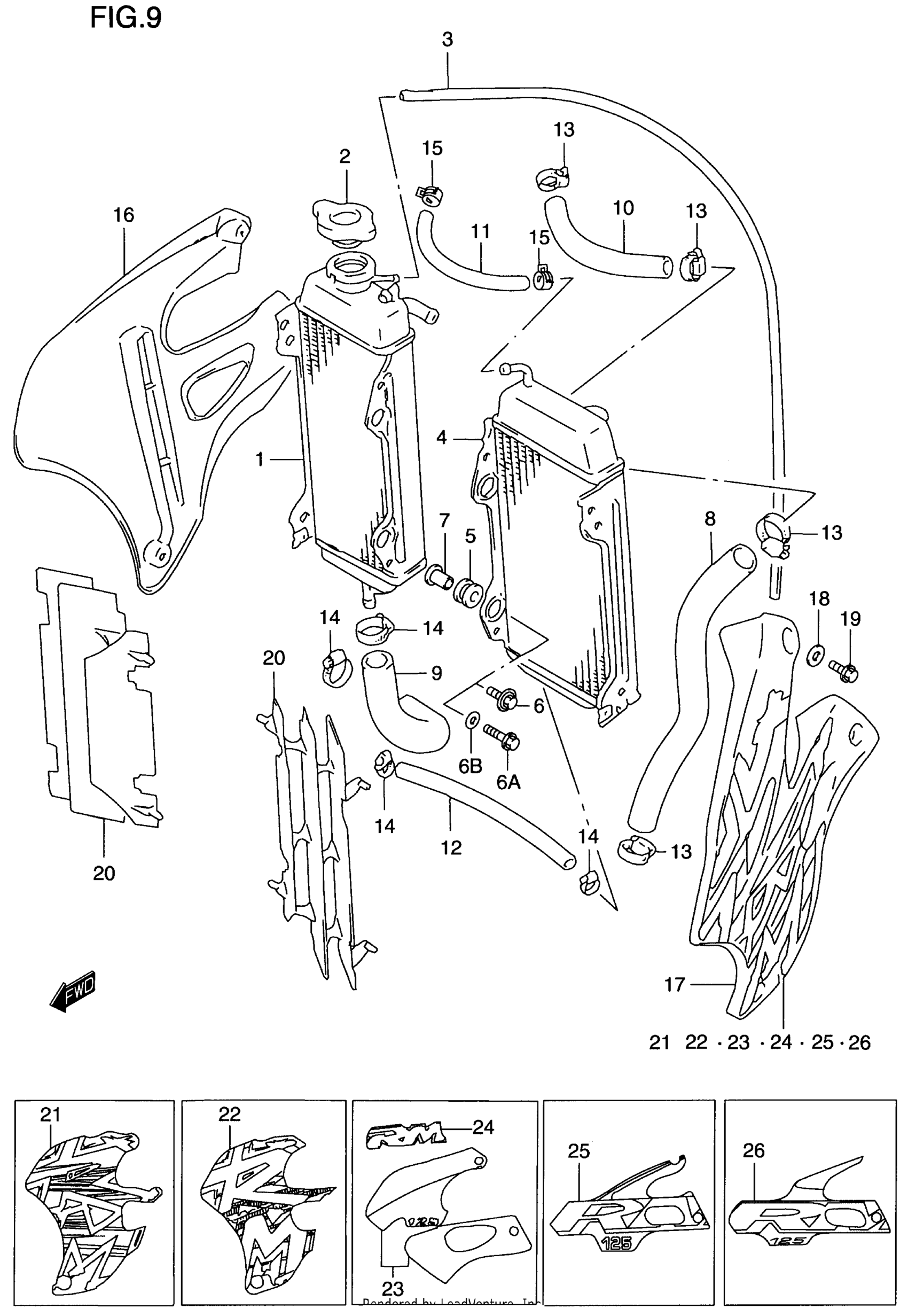

Suzuki RM125 (2000) RADIATOR Diagram

#

Description
Price

1

RADIATOR, RH | MODEL T/V

17710-36E00

Unavailable

1

RADIATOR, RH | MODEL W/X/Y

17710-36E10

Unavailable

2

CAP, RADIATOR | MODEL T/V/W/X This part replaces 17730-12C01.

17730-08J00

$42.50

2

CAP, RADIATOR | MODEL Y This part replaces 17730-12C20.

17730-08J00

$42.50

3

HOSE (5X8X2000) | MODEL T/V L:2000(r)650 This part replaces 09351-50801-00B.

09351-50803-00B

$9.10

3

HOSE, OVER FLOW | MODEL W/X/Y L:2000(r)650

09351-50803-00B

$9.10

4

RADIATOR, LH | MODEL T/V

17720-36E00

Unavailable

4

RADIATOR, LH | MODEL W/X/Y

17720-36E10

Unavailable

5

CUSHION, SUPPORT

17787-19A00

$3.56

6

BOLT (6X25) | MODEL T/V/W

09116-06147

$3.20

6A

BOLT, FINAL GEAR CASE COVER | MODEL X/Y This part replaces 01547-06253.

01547-0625B

$2.45

6B

WASHER (6.5X24X1.2) | MODEL X/Y

09160-06114

$2.03

7

SPACER

09180-06243

$5.46

8

HOSE, INLET | MODEL T/V

17851-36E00

Unavailable

8

HOSE, INLET | MODEL W/X/Y

17851-36E10

Unavailable

9

HOSE, OUTLET | MODEL T/V

17852-43D00

Unavailable

9

HOSE, OUTLET | MODEL W/X/Y

17852-36E10

Unavailable

10

HOSE, JOINT NO.2 | MODEL T/V This part replaces 17853-36E00.

17853-29E00

$16.32

10

HOSE, JOINT NO.2 | MODEL W/X/Y This part replaces 17853-44E00.

17853-29E00

$16.32

11

HOSE, BYPASS | MODEL T This part replaces 17854-13A00.

17854-13810

Unavailable

11

HOSE, BYPASS | MODEL V/W/X/Y

17854-13810

Unavailable

12

HOSE, JOINT NO.2 | MODEL T This part replaces 17854-43D00.

17854-43810

$13.32

12

HOSE, JOINT NO.2 | MODEL V/W/X/Y

17854-43810

$13.32

13

CLAMP

09402-28511

$6.88

14

CLAMP

09402-22511

$7.05

15

CLIP

09401-13414

$2.62

16

COVER, RADIATOR RH (PURPLE) | MODEL T This part replaces 17761-36E00-Z62.

17761-36E01-Z62

Unavailable

16

COVER, RADIATOR RH (PURPLE) | MODEL V

17761-36E01-Z62

Unavailable

16

COVER, RADIATOR RH (BLACK) | MODEL W

17761-36E01-019

Unavailable

16

COVER, RADIATOR RH (YELLOW) | MODEL X This part replaces 17761-36E10-25Y.

17761-36E11-25Y

Unavailable

16

COVER, RADIATOR RH (YELLOW) | MODEL Y

17761-36E11-25Y

Unavailable

17

COVER, RADIATOR LH (PURPLE) | MODEL T This part replaces 17762-36E00-Z62.

17762-36E01-Z62

Unavailable

17

COVER, RADIATOR LH (PURPLE) | MODEL V

17762-36E01-Z62

Unavailable

17

COVER, RADIATOR LH (BLACK) | MDOEL W

17762-36E01-019

Unavailable

17

COVER, RADIATOR LH (YELLOW) | MODEL X This part replaces 17762-36E10-25Y.

17762-36E11-25Y

Unavailable

17

COVER, RADIATOR LH (YELLOW) | MODEL Y

17762-36E11-25Y

Unavailable

18

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49

19

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

20

LOUVER, RADIATOR

17831-36E00

$19.07

21

EMBLEM, RADIATOR COVER RH | MODEL T

68661-36E00-E8S

Unavailable

21

EMBLEM, RADIATOR COVER LH | MODEL T

68671-36E00-E8S

Unavailable

22

EMBLEM, RADIATOR COVER RH | MODEL V

68661-36E10-G7E

Unavailable

22

EMBLEM, RADIATOR COVER LH | MODEL V

68671-36E10-G7E

Unavailable

23

TAPE SET, RADIATOR COVER RH | MODEL W

68660-36E20-K0A

Unavailable

23

TAPE SET, RADIATOR COVER LH | MODEL W

68670-36E20-K0A

Unavailable

24

EMBLEM, RADIATOR COVER RH | MODEL W

68661-36E30-E9Y

Unavailable

24

EMBLEM, RADIATOR COVER LH | MODEL W

68671-36E30-E9Y

Unavailable

25

TAPE, RADIATOR COVER RH | MODEL X

68660-36E30-YA7

Unavailable

25

TAPE, RADIATOR COVER LH | MODEL X

68670-36E30-YA7

Unavailable

26

TAPE, RADIATOR COVER RH | MODEL Y

68660-36E40-N8J

Unavailable

26

TAPE, RADIATOR COVER LH | MODEL Y

68670-36E40-N8J

Unavailable
