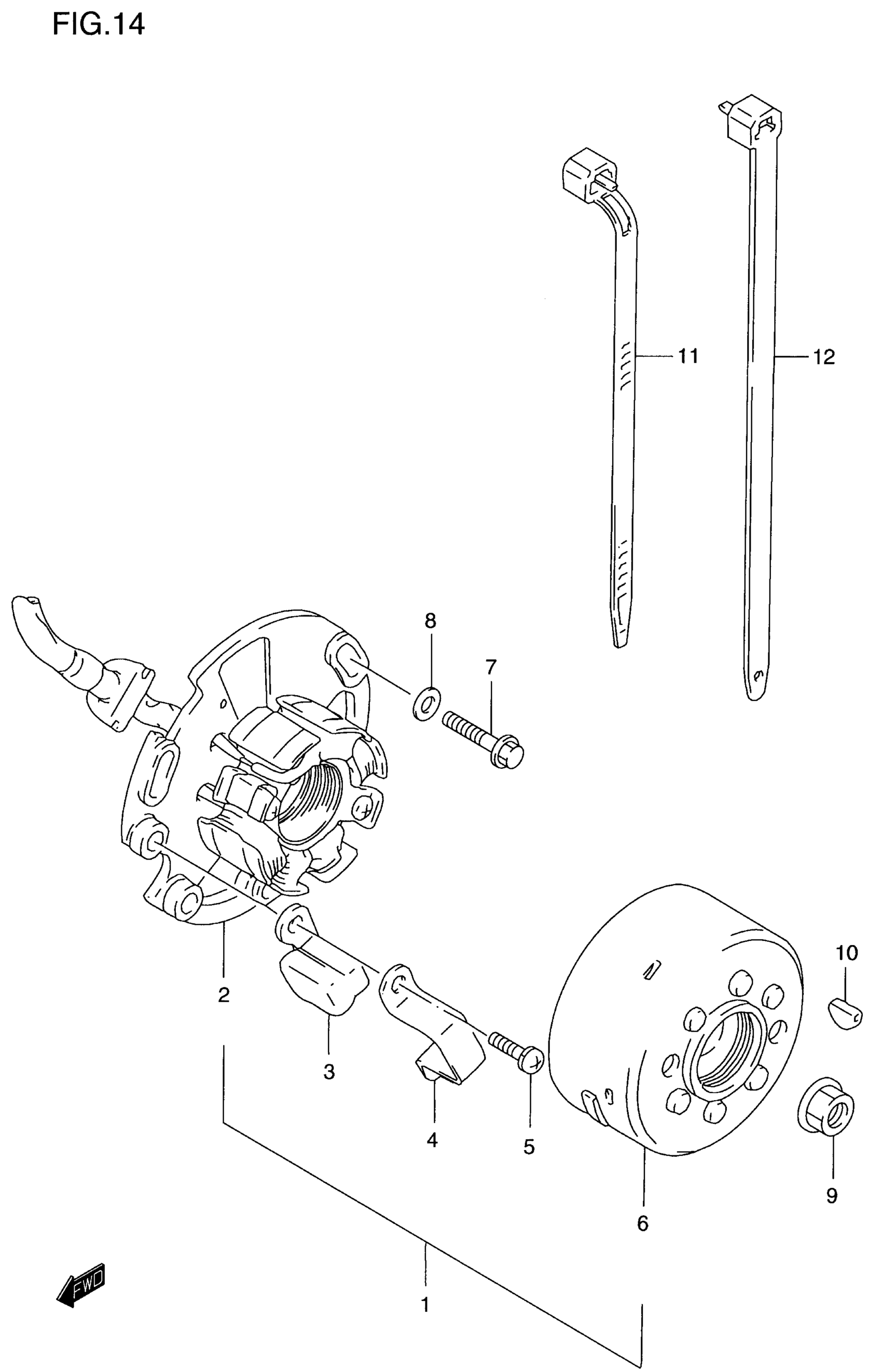

Suzuki RM125 (2000) MAGNETO (MODEL T/V) Diagram

#

Description
Price

1

MAGNETO ASSY | Includes Item(s) 2 - 6

32100-36E00

Unavailable

2

STATOR ASSY

32101-36E00

Unavailable

3

COIL, PICK UP

32150-05D00

Unavailable

4

HOLDER, PICK UP COIL

32157-27C01

Unavailable

5

SCREW This part replaces 02112-75163.

02112-7516A

$2.41

6

ROTOR

32102-43D11

Unavailable

7

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

8

WASHER (6.5X13X1.0) | MODEL T

09164-06003

$2.07

8

.WASHER | MODEL V This part replaces 08322-01063.

08322-0106B

$2.26

9

NUT This part replaces 08316-10103.

08316-1010B

$2.66

10

KEY

09420-04008

$3.42

11

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

12

CLAMP (L:235)

09407-25401

$4.66
