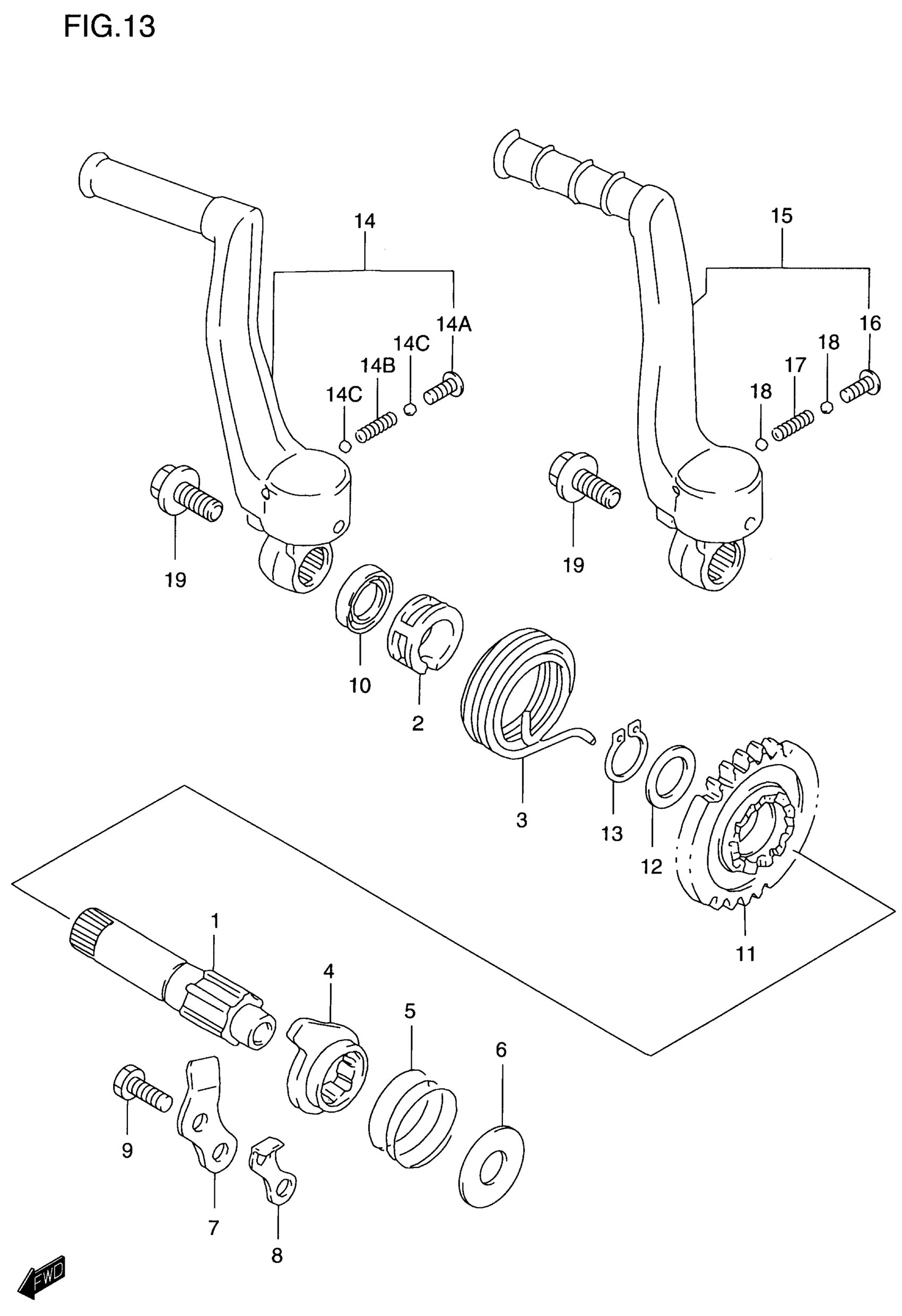

Suzuki RM125 (2000) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | MODEL T This part replaces 26211-27C00.

26211-27C02

$113.25

1

SHAFT, KICK STARTER | MODEL V/W/X/Y This part replaces 26211-27C01.

26211-27C02

$113.25

2

GUIDE, SPRING

26221-27C00

$5.35

3

SPRING

09448-45013

$12.50

4

STARTER, KICK | MODEL T/V This part replaces 26231-02B00.

26231-02B02

$36.17

4

STARTER, KICK | MODEL W/X/Y This part replaces 26231-02B01.

26231-02B02

$36.17

5

SPRING

09440-31002

$2.22

6

PLATE | MODEL T/V

08211-12301

$2.03

7

GUIDE, KICK STARTER

26232-40200

$7.08

8

STOPPER, KICK STARTER | MODEL T This part replaces 26233-40200.

26233-40201

$5.52

8

STOPPER, KICK STARTER | MODEL V

26233-40201

$5.52

9

BOLT This part replaces 01500-06123.

01500-0612A

$1.78

10

OIL SEAL (15.8X24X5)

09283-16004

$6.37

11

GEAR, KICK DRIVE (NT:27) | MODEL T/V/W/X This part replaces 26241-43D00.

26241-43D01

$107.47

11

GEAR, KICK DRIVE (NT:27) | MODEL Y

26241-43D01

$107.47

12

WASHER (16X24X0.50) | MODEL T This part replaces 08221-16245.

09181-16158

$2.71

12

WASHER (16X24X0.50) | MODEL V/W/X/Y

09181-16158

$2.71

13

CIRCLIP This part replaces 08331-31166.

08331-31169

$1.78

14

LEVER ASSY,KICK | MODEL T This part replaces 26300-27C34.

26300-36E11

Unavailable

14

LEVER ASSY,KICK | MODEL V; Includes Item(s) 14A - 14C This part replaces 26300-27C35.

26300-36E11

Unavailable

14A

SCREW (6X27.5)

09127-06016

$2.96

14B

SPRING

09440-05031

$1.49

14C

BALL

06111-07004

$1.49

15

LEVER ASSY,KICK | MODEL W/X/Y; Includes Item(s) 16 - 18 This part replaces 26300-36E10.

26300-36E11

Unavailable

16

SCREW (6X27.5)

09127-06016

$2.96

17

SPRING

09440-05031

$1.49

18

BALL

06111-07004

$1.49

19

BOLT (8X14)

09103-08253

$3.10
