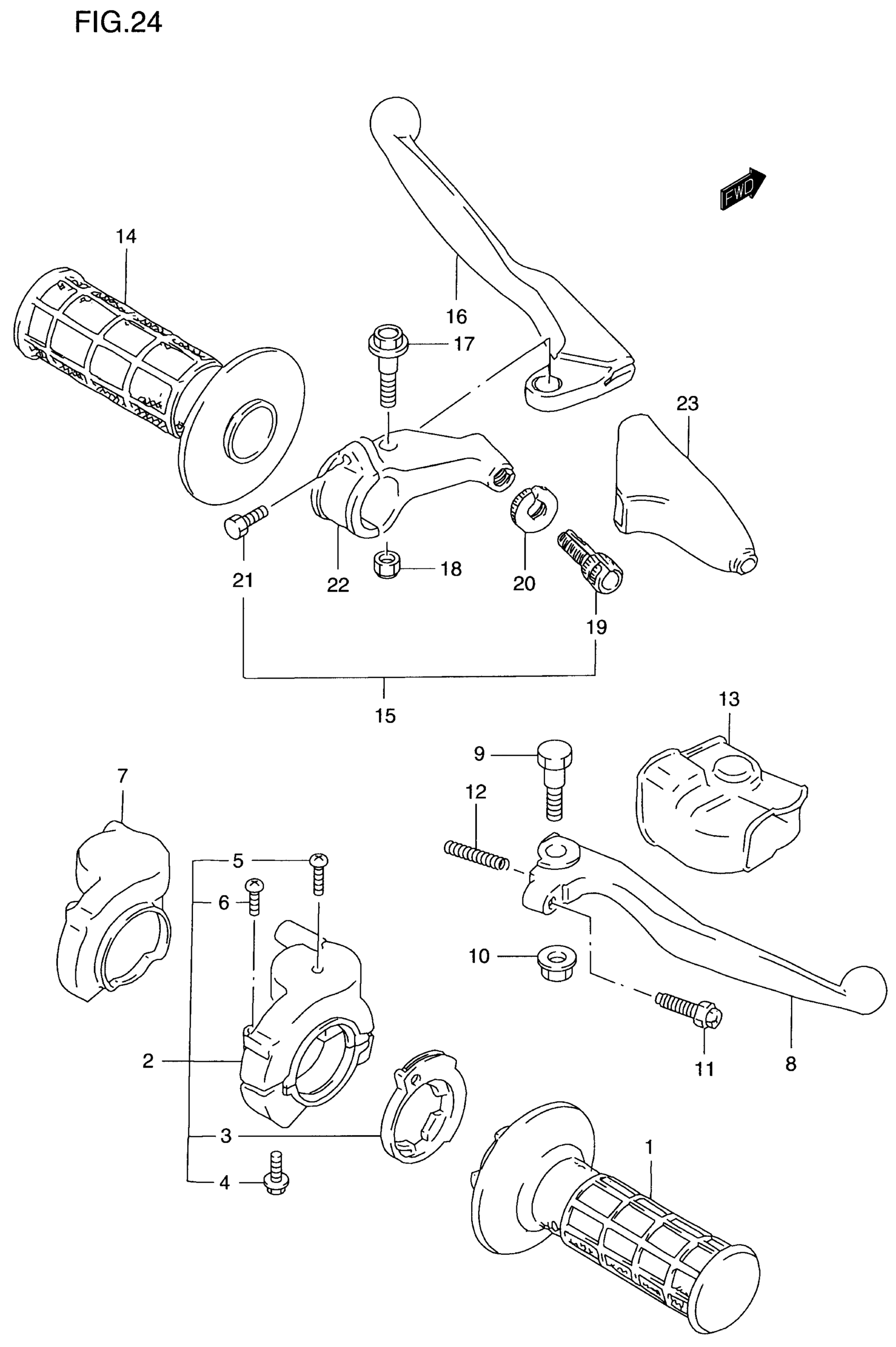

Suzuki RM125 (2000) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE | MODEL T/V/W/X

57110-28E00

Unavailable

1

GRIP, THROTTLE | MODEL Y

57110-36E01

$38.92

2

CASE ASSY, THROTTLE | Includes Item(s) 3 - 6

57100-28E01

$139.22

3

ROTOR

57114-28E00

$9.66

4

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

5

SCREW This part replaces 02122-04103.

02122-0410A

$1.49

6

SCREW This part replaces 02122-04163.

02122-0416A

$2.30

7

COVER, THROTTLE CASE

57129-28E01

$20.82

8

LEVER, BRAKE | MODEL T

57421-36E00

Unavailable

8

LEVER, BRAKE | MODEL V/W/X/Y

57421-36E10

$39.75

9

BOLT, BRAKE LEVER

57431-14500

$6.28

10

NUT | MODEL T/V/W This part replaces 57442-14500.

08316-1006B

$2.50

10

NUT | MODEL X/Y This part replaces 08316-10063.

08316-1006B

$2.50

11

BOLT, ADJUSTER

57430-36E00

$7.97

12

SPRING, RETURN

57318-14502

$4.48

13

COVER, BRAKE LEVER

57341-36E00

$19.93

14

GRIP LH | MODEL T/V/W/X

57211-27C00

$12.28

14

GRIP,L | MODEL T This part replaces 57211-36E01.

57211-28H00

$20.40

15

LEVER ASSY,CLUTCH | MODEL T This part replaces 57500-28C20.

57500-28C13

$82.52

15

LEVER ASSY,CLUT | MODEL V/W/X/Y; Includes Item(s) 16 - 22 This part replaces 57500-28C40.

57500-28C42

Unavailable

16

LEVER, CLUTCH | MODEL T

57621-28C20

Unavailable

16

LEVER, CLUTCH | MODEL V/W/X/Y

57621-28C40

$21.90

17

BOLT

57431-28C01

$8.47

18

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

19

ADJUSTER, CABLE

57441-28C10

$13.73

20

NUT

57442-28C00

$12.97

21

BOLT This part replaces 01500-05163.

01500-0516B

$2.15

22

BRACKET, HOLDER | MODEL T

57512-28C20

Unavailable

22

.BRACKET, CLUTCH LEVER HOLDER | MODEL V/W/X/Y

57512-28C00

$25.63

23

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.56
