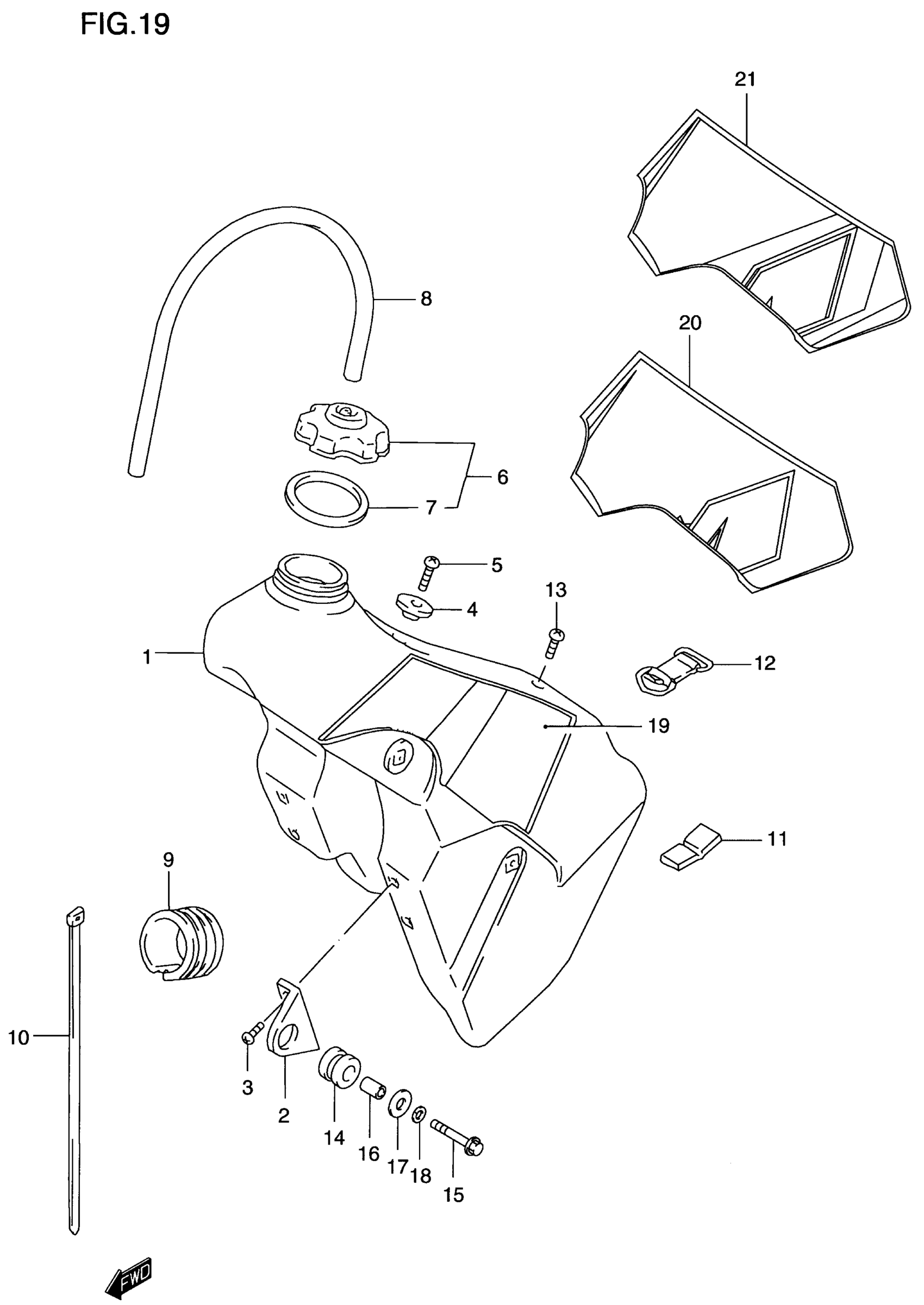

Suzuki RM125 (2000) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL (YELLOW) | Includes Item(s) 2 - 5

44110-36E00-25Y

Unavailable

2

BRACKET, FRONT

44131-27C01

$12.63

3

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

4

HOOK, SEAT FR

44132-27C01

$17.17

5

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

6

CAP SET,FUEL TA | Includes Item(s) 7 This part replaces 44200-27870.

44200-27871

$22.96

7

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$4.21

8

HOSE(5.3X10.5X6 This part replaces 09352-53103-600.

09355-53001-600

$9.35

9

CUSHION

44541-26C00

$18.02

10

CLAMP

09407-30402

$4.11

10

CLAMP

09407-14407

$3.57

11

CUSHION, REAR

09321-05006

Unavailable

12

BAND, REAR

44560-27C00

$7.69

13

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

14

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.74

15

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

16

SPACER | MODEL T This part replaces 09180-06062.

09180-06268

$2.19

16

SPACER | MODEL V/W/X/Y

09180-06268

$2.19

17

WASHER

09160-06114

$2.03

18

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.84

19

TAPE SET, FUEL TANK | MODEL W

68110-36E20-J5C

Unavailable

20

TAPE SET, FUEL TANK | MODEL X

68110-36E30-M2V

Unavailable

21

TAPE SET, FUEL TANK | MODEL Y

68110-36E40-N8H

Unavailable
