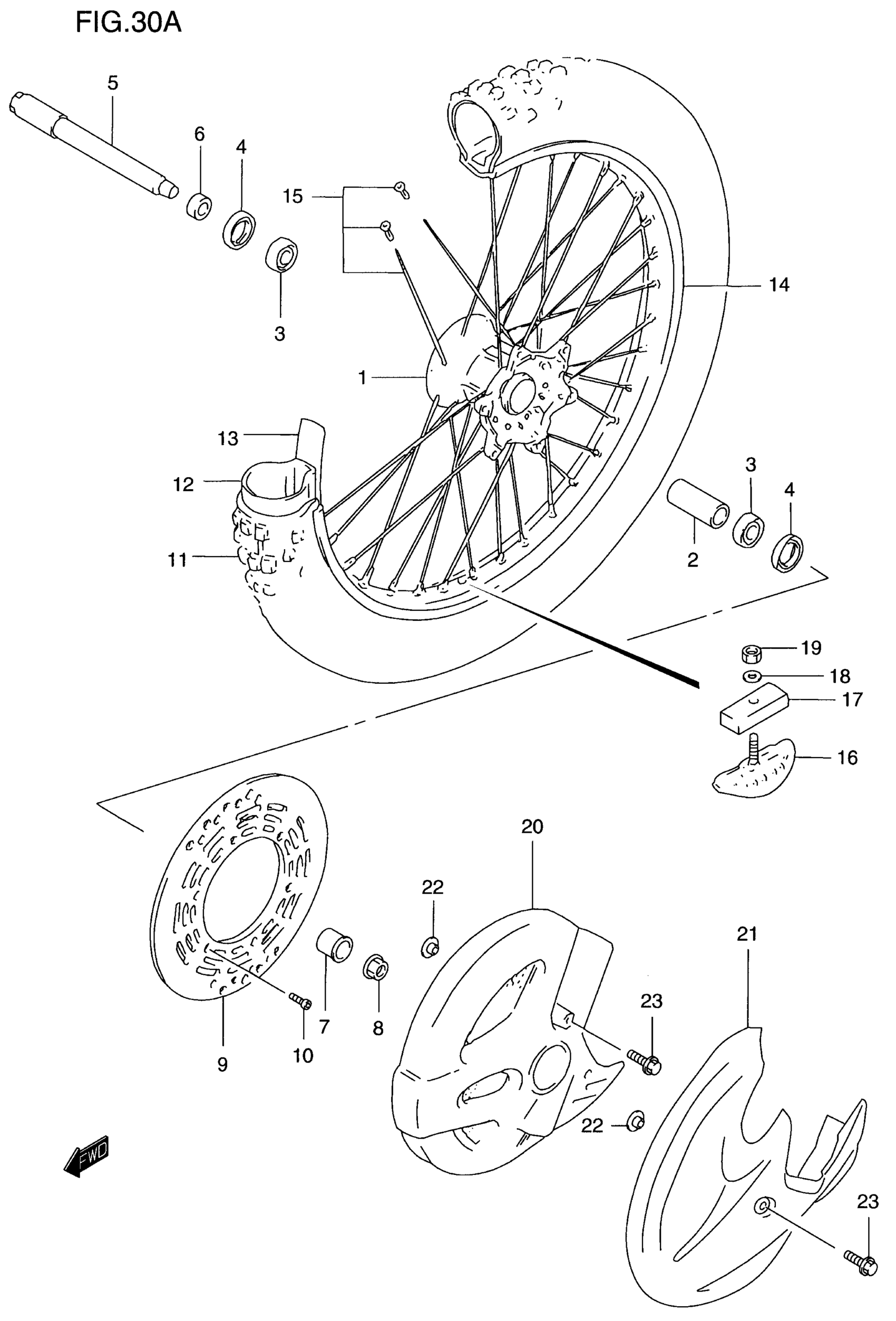

Suzuki RM125 (2000) FRONT WHEEL (MODEL V/W/X/Y) Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54111-36E10

Unavailable

2

SPACER, FRONT HUB (20.5X27.3X70)

54731-36E10

$25.75

3

BEARING This part replaces 08130-69047.

08130-6904B

$43.88

4

SEAL, FRONT HUB (25X37X6)

09283-25083

$8.37

5

AXLE, FRONT

54711-36E00

Unavailable

6

SPACER, AXLE RH (L:9.5)

54741-36E10

Unavailable

7

SPACER, AXLE LH (L:31)

54751-36E10

$17.84

8

NUT

09159-18016

$12.48

9

DISC, FRONT BRAKE

59221-28C00

Unavailable

10

SCREW, SHIFT PAWL LIFTER This part replaces 09120-06011.

09120-06014

$2.45

11

TIRE, FRONT (80/100-2151M K490)(DUNLOP) (80/100-2151M K490)(DUNLOP) (80/100-2151M D739FA)(DUNLOP) | MODEL V/W/X

55110-01B10

Unavailable

12

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$36.73

13

PROTECTOR, INNER TUBE

55261-14540

$3.83

14

RIM, FRONT WHEEL (1.60X21)

55311-36E00

Unavailable

15

SPOKE SET, FRONT WHEEL

55320-36E00

$167.93

16

STOPPER, BEAD

65270-14300

$52.73

17

CUSHION, BEAD STOPPER

65271-27C00

$7.42

18

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

19

NUT This part replaces 08310-00083.

08310-0008A

$1.84

20

COVER,FRONT BRA | MODEL V This part replaces 59231-36E01-25Y.

59231-36E02-25Y

Unavailable

21

COVER, FRONT BRAKE DISC (GRAY) | MODEL X/Y

59231-36E20-1KY

Unavailable

22

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49

23

BOLT (6X16)

09116-06170

$2.50
