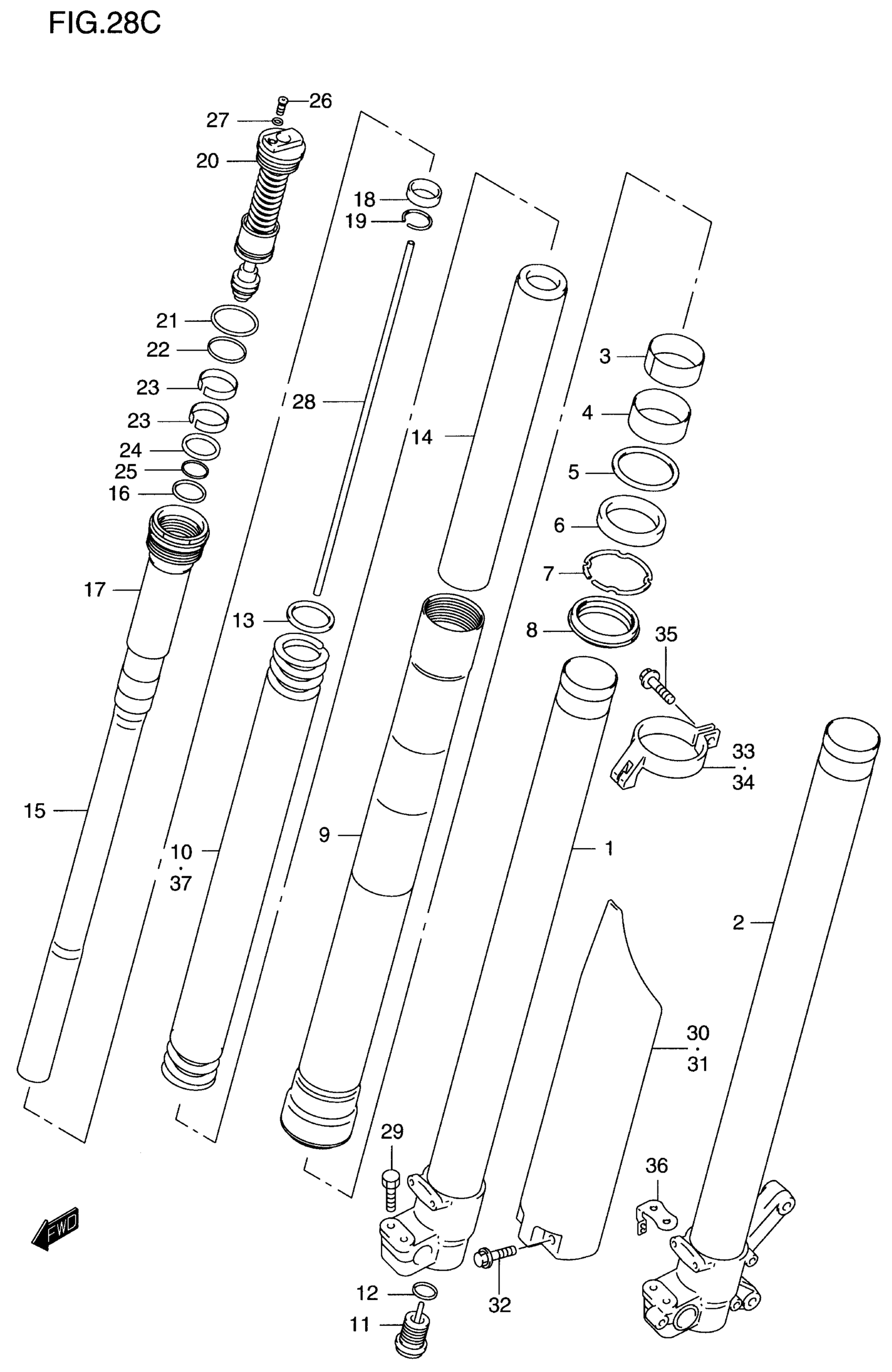

Suzuki RM125 (2000) FRONT DAMPER (MODEL X) Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-36E70

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 29

51104-36E70

Unavailable

1

TUBE, INNER RH

51110-36E60

Unavailable

2

TUBE, INNER LH

51120-36E60

Unavailable

3

BUSH, SLIDE

51121-36E60

Unavailable

4

BUSH, GUIDE

51167-36E60

Unavailable

5

..SPACER,SEAL

51158-36E00

$9.37

6

..SEAL,OIL

51153-36E00

$37.22

7

..RING,STOPPER

51156-36E00

$8.43

8

SEAL, DUST

51173-36E00

$38.65

9

TUBE, OUTER

51130-36E60

Unavailable

10

SPRING, FRONT (K=0.40)

51171-37E60

Unavailable

11

BOLT, CENTER

51170-36E20

Unavailable

12

O RING

51177-36E20

$4.10

13

STOPPER, SPRING

51355-36E60

Unavailable

14

COLLAR, SPRING

51176-36E60

Unavailable

15

ROD, DAMPER

51190-36E70

Unavailable

16

O RING This part replaces 62131-28E30.

62131-28E00

$5.00

17

SUB TANK

51198-36E60

Unavailable

18

VALVE, OIL LOCK

51157-36E70

Unavailable

19

RING, VALVE STOPPER

51154-36E60

Unavailable

20

BOLT, FORK

51351-36E70

Unavailable

21

O RING, UPPER

51117-36E60

$7.07

22

O RING, BOLT

51117-36E00

$6.93

23

BUSH, FORK BOLT SLIDE

51123-28E30

$15.22

24

O RING, CENTER

51174-36E40

$4.25

25

O RING, LOWER

51175-36E60

Unavailable

26

BOLT, PLUG

51357-28E30

$14.37

27

...O-RING

51358-28E30

$4.28

28

ROD, PUSH

51191-36E60

Unavailable

29

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.96

30

PROTECTOR, RH

51501-36E60

Unavailable

31

PROTECTOR, LH

51511-36E60

Unavailable

32

BOLT

58627-27C40

$3.77

33

GUIDE, PROTECTOR RH

51220-36E60

Unavailable

34

GUIDE, PROTECTOR LH

51210-36E60

Unavailable

35

BOLT, GUIDE PROTECTOR

01547-06207

$2.01

36

STOPPER, BRAKE HOSE LH

51231-36E60

Unavailable

37

SPRING, FRONT (SOFT,K=0.38) | OPT

51171-37E50

Unavailable

37

SPRING, FRONT (HARD,K=0.42) | OPT

51171-37E70

Unavailable
