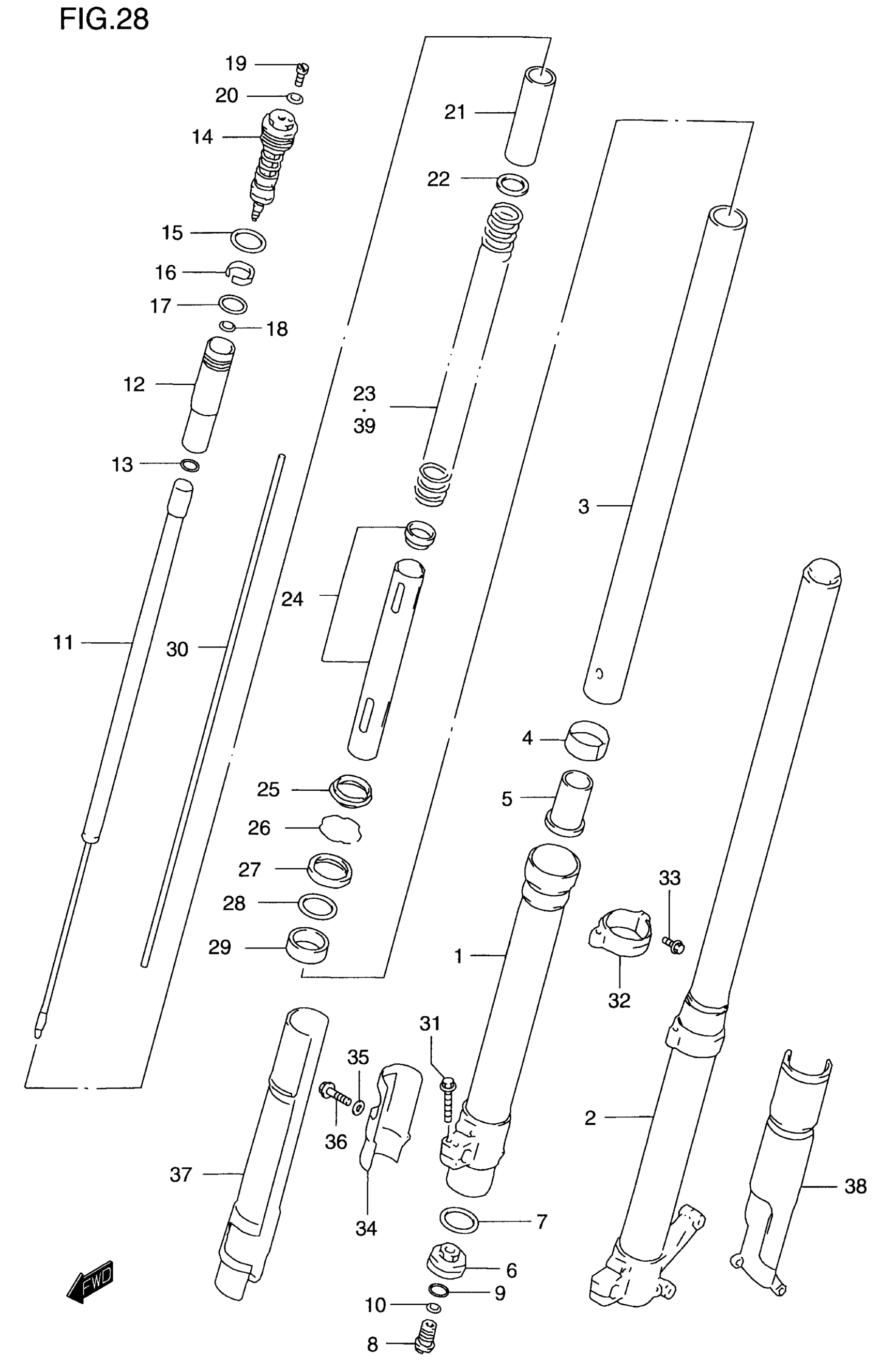

Suzuki RM125 (2000) FRONT DAMPER (MODEL T) Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-36E10

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 25

51104-36E10

Unavailable

1

TUBE, OUTER RH

51130-36E00

Unavailable

2

TUBE, OUTER LH

51140-36E00

Unavailable

3

TUBE, INNER

51110-36E00

Unavailable

4

BUSH, SLIDE

51121-36E00

Unavailable

5

PIECE, OIL LOCK

51195-36E00

Unavailable

6

PLATE, END

51205-36E00

Unavailable

7

O RING

51117-27C40

$6.22

8

BOLT, CENTER

51170-28E30

Unavailable

9

GASKET

51148-14D00

Unavailable

10

O RING

51177-28E30

Unavailable

11

ROD, DAMPER

51190-36E00

Unavailable

12

TANK, SUB

51198-36E00

Unavailable

13

O RING

51174-43D00

$4.82

14

BOLT, FORK

51351-36E00

Unavailable

15

O RING, UPPER

51117-36E00

$6.93

16

BUSH, FORK BOLT SLIDE

51123-28E30

$15.22

17

O RING, CENTER

51174-28E30

Unavailable

18

O RING This part replaces 51175-28E30.

51175-03B30

$6.05

19

BOLT, PLUG

51357-28E30

$14.37

20

...O-RING

51358-28E30

$4.28

21

COLLAR, SPRING

51197-36E00

Unavailable

22

JOINT, SPRING

51192-36E00

Unavailable

23

SPRING, FRONT (K=0.40)

51171-36E00

Unavailable

24

COLLAR, SPRING

51176-36E00

Unavailable

25

SEAL, DUST

51173-36E00

$38.65

26

..RING,STOPPER | Includes Item(s) 27 - 31

51156-36E00

$8.43

27

..SEAL,OIL

51153-36E00

$37.22

28

..SPACER,SEAL

51158-36E00

$9.37

29

BUSH, GUIDE

51167-36E00

Unavailable

30

ROD, PUSH

51191-28E30

Unavailable

31

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.96

32

GUIDE, FRONT PROTECTOR RH

51211-36E00

Unavailable

32

GUIDE, FRONT PROTECTOR LH

51221-36E00

Unavailable

33

BOLT This part replaces 58628-43D00.

01547-06207

$2.01

34

PROTECTOR, OUTER TUBE RH (YELLOW)

51551-36E00-25Y

Unavailable

35

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49

36

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

37

PROTECTOR, OUTER TUBE RH (YELLOW) (YELLOW) (YELLOW) | OPT

51551-36E10-25Y

Unavailable

39

SPRING, FRONT (K=0.38)(SOFT) | OPT

51171-36E10

Unavailable
