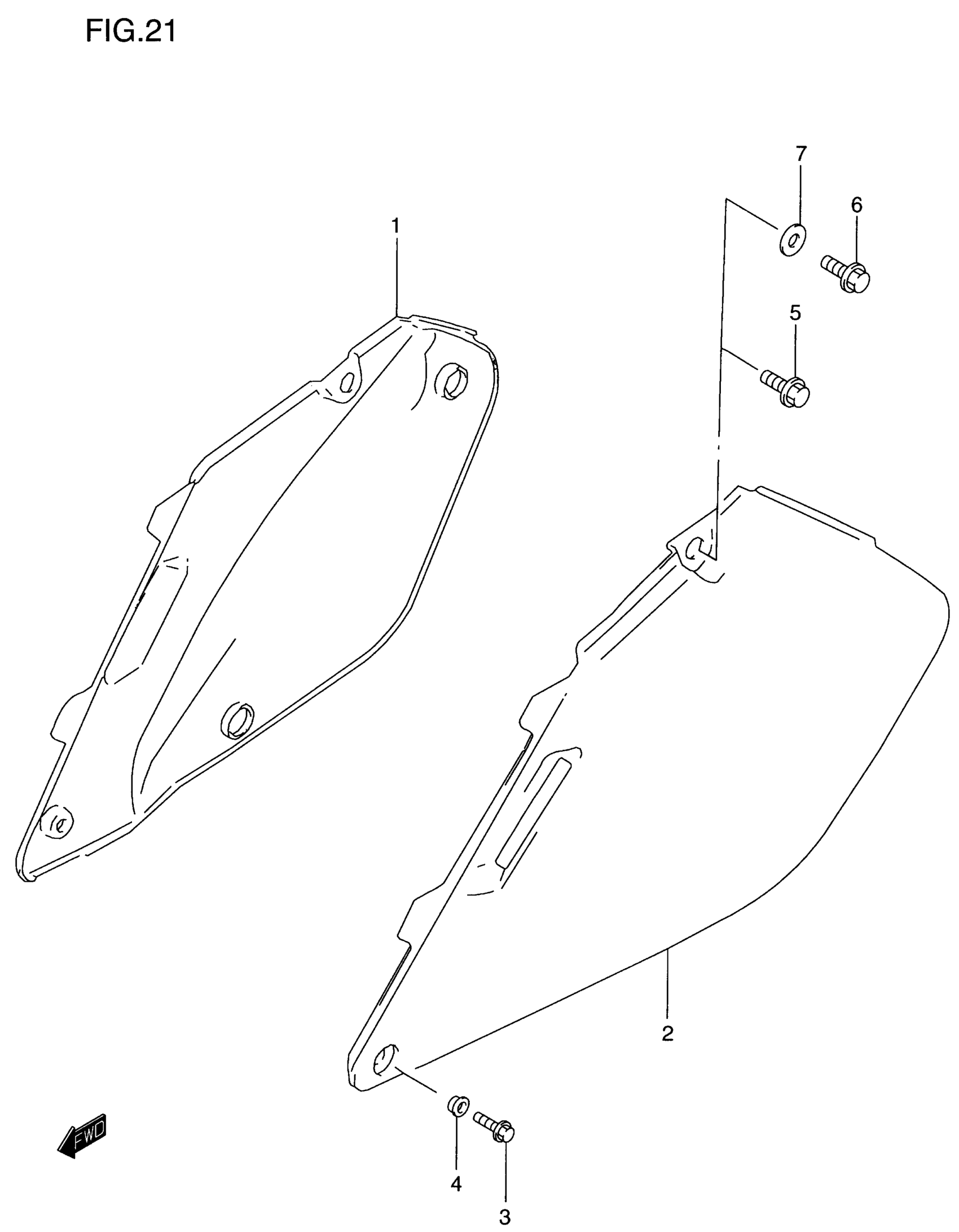

Suzuki RM125 (2000) FRAME COVER Diagram

#

Description

Price

1

COVER, FRAME RH (WHITE) | MODEL T This part replaces 47111-36E00-30H.

47111-36E01-30H

Unavailable

1

COVER, FRAME RH (WHITE) | MODEL V/W/X/Y

47111-36E01-30H

Unavailable

2

COVER, FRAME LH (WHITE) | MODEL T This part replaces 47211-36E00-30H.

47211-36E01-30H

$99.05

2

COVER, FRAME LH (WHITE) | MODEL V/W/X/Y

47211-36E01-30H

$99.05

3

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

4

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49

5

BOLT, REAR | MODEL T/V/W

09116-06170

$2.50

6

BOLT | MODEL X/Y This part replaces 01547-06163.

01547-0616B

$2.45

7

WASHER (6.5X14X2.0) | MODEL X/Y This part replaces 09160-06124.

09160-06126

$1.91
