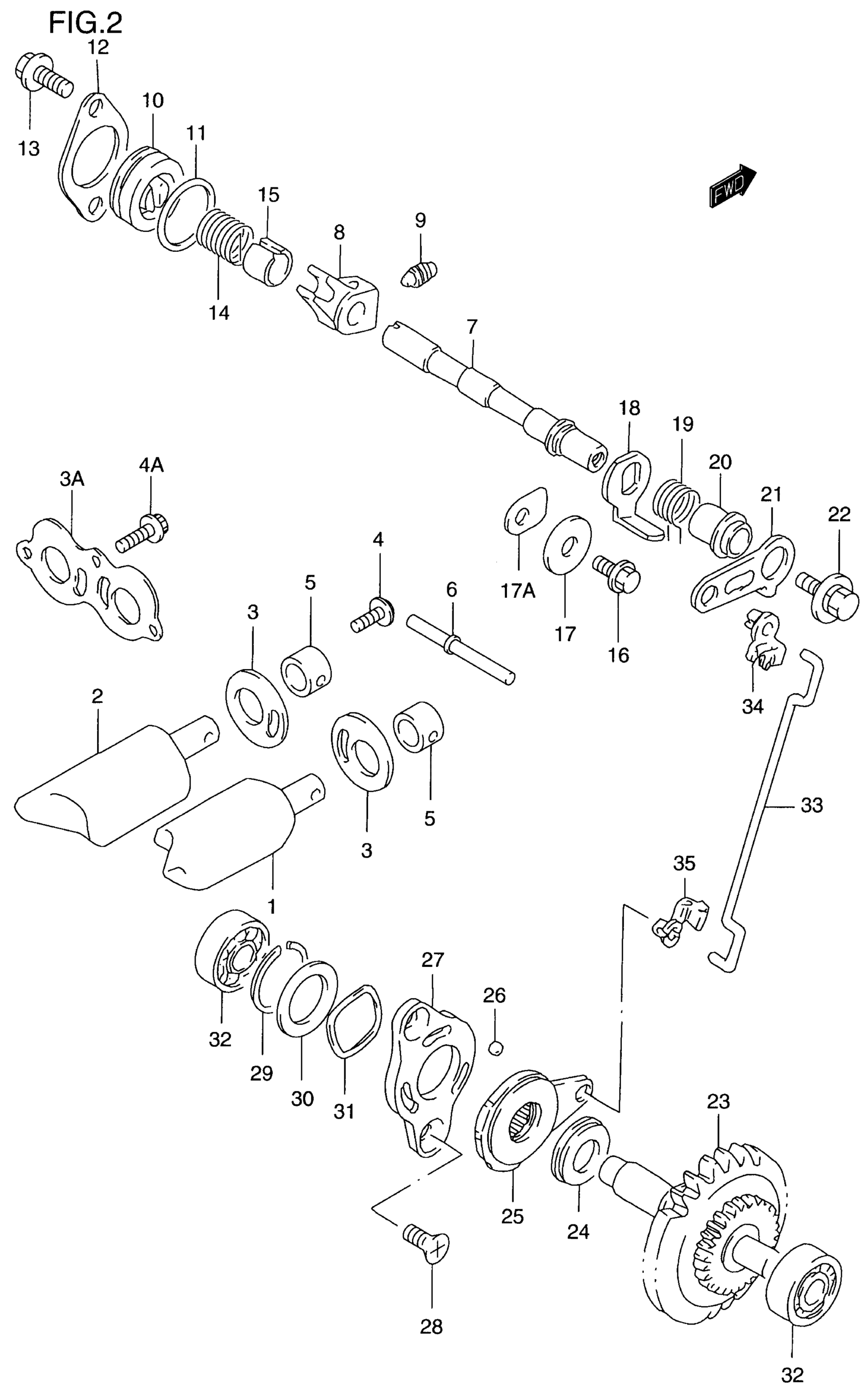

Suzuki RM125 (2000) EXHAUST VALVE (MODEL T/V/W/X) Diagram

#

Description
Price

1

VALVE, EXHAUST RH | MODEL T/V This part replaces 11254-36E00.

11254-36E10

Unavailable

1

VALVE, EXHAUST RH | MODEL W

11254-36E10

Unavailable

1

VALVE, EXHAUST RH | MODEL X

11254-36E20

Unavailable

2

VALVE, EXHAUST LH | MODEL T/V This part replaces 11255-36E00.

11255-36E10

Unavailable

2

VALVE, EXHAUST LH | MODEL W

11255-36E10

Unavailable

2

VALVE, EXHAUST LH | MODEL X

11255-36E20

Unavailable

3

PLATE, EXHAUST VALVE | MODEL T

11261-36E00

Unavailable

3A

PLATE, EXHAUST VALVE | MODEL V/W/X

11261-36E10

Unavailable

4

.SCREW | MODEL T This part replaces 02112-15123.

02142-0512A

$1.49

4A

BOLT | MODEL V/W/X This part replaces 07130-05123.

07130-0512B

$2.50

5

SPACER, EXHAUST VALVE

11263-08D11

$17.20

6

PIN

11253-19D80

Unavailable

7

SHAFT, EXHAUST VALVE | MODEL T

11259-27C30

Unavailable

7

SHAFT, EXHAUST VALVE | MODEL V/W/X

11259-36E00

Unavailable

8

ARM, EXHAUST VALVE SHAFT | MODEL T/V/W This part replaces 11264-00B23.

11264-00B24

$23.32

8

ARM, EXHAUST VALVE SHAFT | MODEL X

11264-00B24

$23.32

9

SCREW

09134-06013

$3.87

10

CAP, EXHAUST VALVE

11258-27C01

Unavailable

11

O RING(D:1.9,ID This part replaces 09280-23002.

09280-23003

$1.80

12

RETAINER, EXHAUST VALVE This part replaces 11265-00B21.

11265-00B22

Unavailable

13

SCREW This part replaces 02162-05123.

02162-0512A

$1.98

14

SPRING | MODEL T

09444-16008

Unavailable

14

SPRING | MODEL V/W/X

11257-36E00

$6.43

15

SPACER | MODEL T/V

11269-00B20

Unavailable

16

BOLT This part replaces 01547-06103.

01547-0610B

$2.45

17

WASHER | MODEL T

08212-06201

$1.67

17A

RETAINER | MODEL V/W/X

24741-21A00

$2.81

18

LEVER, EXHAUST VALVE NO.2

11267-00B21

$4.46

19

SPRING | MODEL T

09444-15010

Unavailable

19

SPRING | MODEL V/W/X

09444-16010

Unavailable

20

SPACER This part replaces 11268-01B00.

11268-01B01

$8.65

21

LEVER, EXHAUST VALVE NO.1

11266-00B21

$3.43

22

BOLT (5X12)

09118-05003

$2.69

23

GOVERNOR ASSY, EXHAUST VALVE | MODEL T

12670-27C10

Unavailable

23

GOVERNOR ASSY, EXHAUST VALVE | MODEL V

12670-36E00

Unavailable

23

GOVERNOR ASSY, EXHAUST VALVE | MODEL W/X

12670-36E11

Unavailable

24

BEARING

09263-10002

$10.19

25

ACTUATOR, EXHAUST VALVE

12680-01820

Unavailable

26

BALL

06111-06003

$1.49

27

STATOR, ACTUATOR

12682-01B02

$36.17

28

SCREW (5X10)

09120-05003

$1.91

29

CIRCLIP

09380-19003

$2.15

30

SHIM (19.1X25X0.3)

09181-19004

$3.78

31

LOCK WASHER

09164-19001

$4.69

32

BEARING (8X22X7)

09262-08005

$12.67

33

ROD, EXHAUST VALVE | MODEL T

12685-27C00

Unavailable

33

ROD, EXHAUST VALVE | MODEL V

12685-36E00

Unavailable

33

ROD, EXHAUST VALVE | MODEL W/X This part replaces 12685-36E10.

12685-36E11

Unavailable

34

BUSH, EXHAUST VALVE ROD NO.1 | MODEL T

12686-01B00

$1.65

34

BUSH, EXHAUST VALVE ROD NO.1 | MODEL V/W/X

12686-36E00

$2.37

35

BUSH, EXHAUST VALVE ROD NO.2

12687-01B00

$1.65
