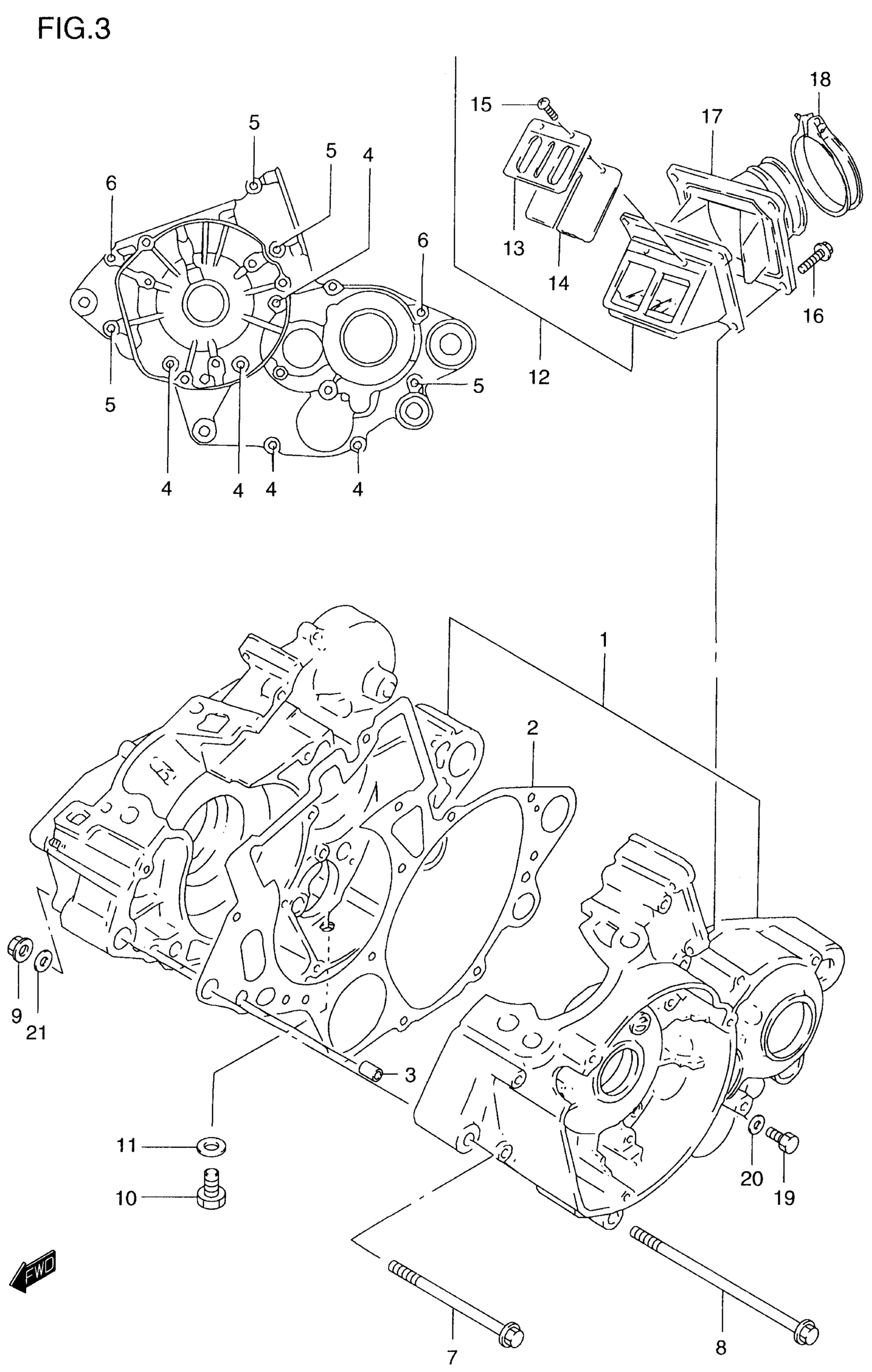

Suzuki RM125 (2000) CRANKCASE (MODEL T/V) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 11300-43862.

11300-43863

Unavailable

1

CRANKCASE SET | MODEL V; Includes Item(s) 2 - 6 This part replaces 11300-36860.

11300-36861

Unavailable

2

GASKET, CRANKCASE

11481-43D00

Unavailable

3

PIN

04211-09129

$1.65

4

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

5

BOLT This part replaces 01547-06553.

01547-0655B

$2.75

6

BOLT This part replaces 01547-06603.

01547-0660B

$3.18

7

BOLT (8X88)

09103-08010

$31.68

8

BOLT (8X125)

09103-08106

Unavailable

9

NUT

09159-08034

$1.62

10

BOLT This part replaces 01500-12163.

01500-1216B

$3.95

11

GASKET

09168-12002

$1.59

12

VALVE ASSY,REED | Includes Item(s) 13 - 15 This part replaces 13150-43D02.

13150-36E01

Unavailable

13

STOPPER,REED VA This part replaces 13152-43D00.

13152-43D01

$7.18

14

VALVE, REED

13153-43D00

Unavailable

15

SCREW This part replaces 02112-33083.

02112-3308A

$2.23

16

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

17

PIPE, INTAKE This part replaces 13110-36E00.

13110-36E01

Unavailable

18

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

19

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

20

GASKET

09168-06004

$1.49

21

WASHER

09164-08020

$2.06
