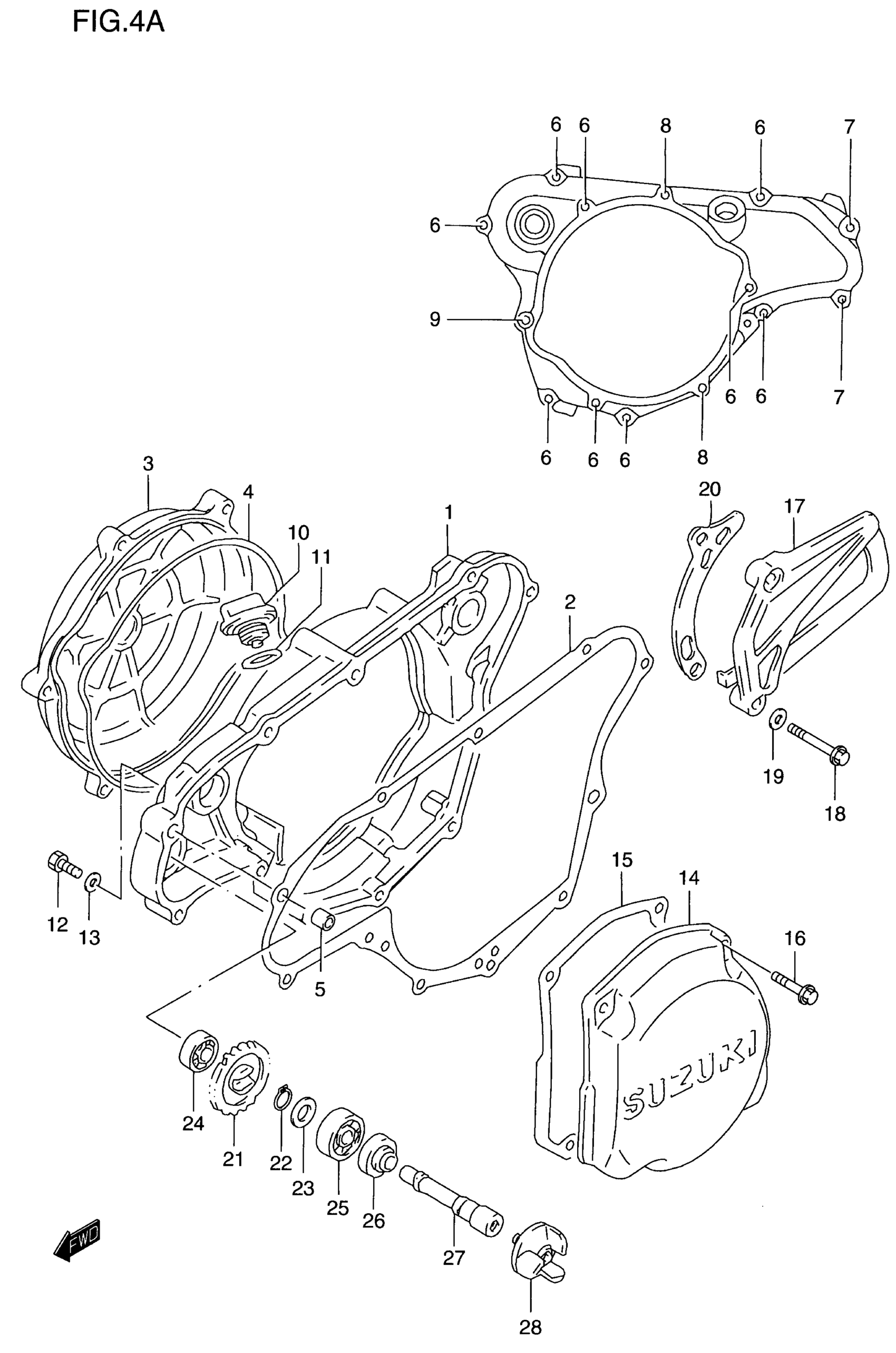

Suzuki RM125 (2000) CRANKCASE COVER-WATER PUMP (MODEL W/X/Y) Diagram

#

Description
Price

1

COVER, CLUTCH

11341-36E10

Unavailable

2

GASKET, CLUTCH COVER

11482-36E10

Unavailable

3

COVER, CLUTCH OUTER This part replaces 11371-36E10.

11371-36F01

$203.93

4

O RING, CLUTCH OUTER COVER

11484-36E10

$21.60

5

PIN

04211-09129

$1.65

6

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

7

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

8

BOLT This part replaces 01547-06653.

01547-0665B

$3.18

9

BOLT This part replaces 01547-06703.

01547-0670B

$3.29

10

PLUG, OIL FILLER

11971-12C51

$6.46

11

O RING

09280-17003

$1.65

12

SCREW (6X10) | MODEL W This part replaces 09128-06004.

09128-06044

$1.49

12

SCREW, OIL LEVEL | MODEL X/Y

09128-06044

$1.49

13

GASKET

09168-06004

$1.49

14

COVER, MAGNETO This part replaces 11351-36E10.

11351-36F00

$198.45

15

GASKET, MAGNETO COVER This part replaces 11483-36E10.

11483-36E11

$9.33

16

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

17

COVER, SPROCKET

11360-36E00

$30.44

18

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

19

WASHER (6.5X14X2.0)

09160-06126

$1.91

20

PLATE, CHAIN GUIDE

27641-37E00

$10.28

21

GEAR, WATER PUMP DRIVEN

17441-36E10

Unavailable

22

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

23

WASHER

09181-10111

$1.97

24

BEARING, WATER PUMP RH

09262-08005

$12.67

25

BEARING, WATER PUMP LH

09262-10014

$16.01

26

OIL SEAL, WATER PUMP This part replaces 17461-28C10.

17461-03B00

$8.26

27

SHAFT, WATER PUMP

17511-36E10

Unavailable

28

IMPELLER, WATER PUMP

17491-36E10

Unavailable
