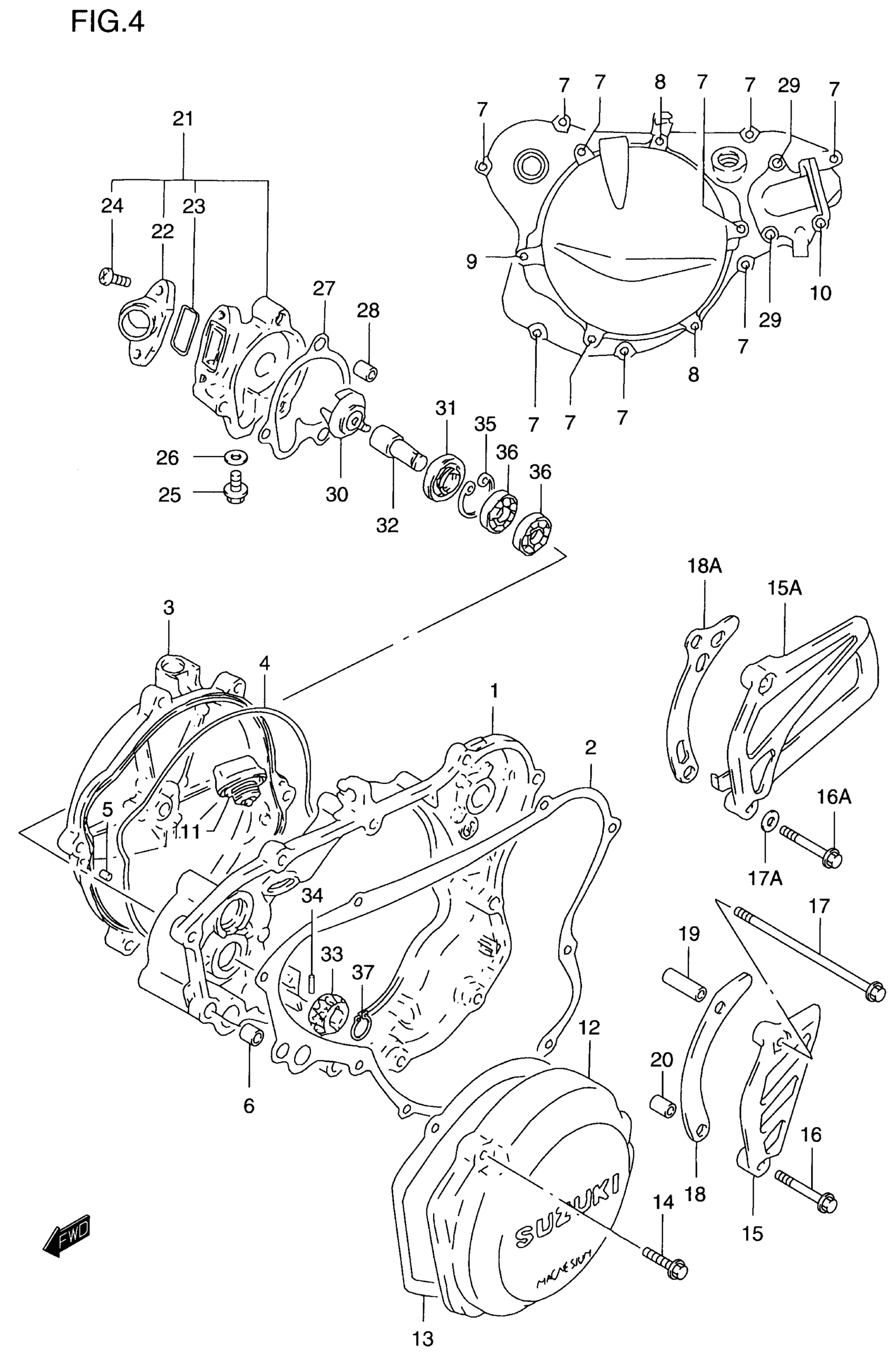

Suzuki RM125 (2000) CRANKCASE COVER-WATER PUMP (MODEL T/V) Diagram

#

Description
Price

1

COVER, CLUTCH

11340-43811

Unavailable

2

GASKET, CLUTCH COVER

11482-43D01

$22.48

3

COVER, CLUTCH OUTER

11371-43D10

Unavailable

4

O RING, CLUTCH OUTER COVER

11484-43D00

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

PIN

04211-09129

$1.65

7

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

8

BOLT This part replaces 01547-06653.

01547-0665B

$3.18

9

BOLT This part replaces 01547-06703.

01547-0670B

$3.29

10

BOLT (6X100)

09103-06501

$4.17

11

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

12

COVER, MAGNETO

11351-43D10

Unavailable

13

GASKET, MAGNETO COVER

11483-43D00

Unavailable

14

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

15

COVER, SPROCKET | MODEL T

11360-28E00

$32.00

15A

COVER, SPROCKET | MODEL V

11360-36E00

$30.44

16

BOLT | MODEL T This part replaces 01547-06403.

01547-0640B

$2.75

16A

BOLT, FINAL GEAR CASE | MODEL V This part replaces 01547-06303.

01547-0630B

$2.73

17

BOLT (6X100) | MODEL T

09103-06501

$4.17

17A

WASHER (6.5X14X2.0) | MODEL V This part replaces 09160-06093.

09160-06126

$1.91

18

PLATE, CHAIN GUIDE | MODEL T

27641-27C10

Unavailable

18

PLATE, CHAIN GUIDE | OPT MODEL T FOR 13T

27641-27C00

Unavailable

18A

PLATE, CHAIN GUIDE | MODEL V

27641-37E00

$10.28

19

SPACER (6.5X10.5X25) | MODEL T

09180-06203

$2.71

20

SPACER (6.5X10.5X12) | MODEL T

09180-06221

Unavailable

21

CASE, WATER PUMP | Includes Item(s) 22 - 26

17410-43D11

Unavailable

22

CONNECTOR

17412-28E00

Unavailable

23

O RING

17414-14300

$2.99

24

SCREW This part replaces 02112-06163.

02112-0616A

$1.49

25

BOLT, DRAIN

17415-43D00

$4.35

26

GASKET

17413-28C10

$2.14

27

GASKET, WATER PUMP CASE

17431-43D00

Unavailable

28

PIN

04211-09129

$1.65

29

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

30

IMPELLER, WATER PUMP This part replaces 17491-43D00.

17491-43D01

$22.56

31

OIL SEAL, WATER PUMP This part replaces 17461-28C10.

17461-03B00

$8.26

32

SHAFT, WATER PUMP | MODEL T This part replaces 17511-27C10.

17511-27C11

$42.83

32

SHAFT, WATER PUMP | MODEL V

17511-27C11

$42.83

33

GEAR, WATER PUMP DRIVEN

17441-43D20

Unavailable

34

PIN

09261-03010

Unavailable

35

CIRCLIP This part replaces 08331-41246.

08331-41249

$2.26

36

BEARING

08113-69000

$24.18

37

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78
