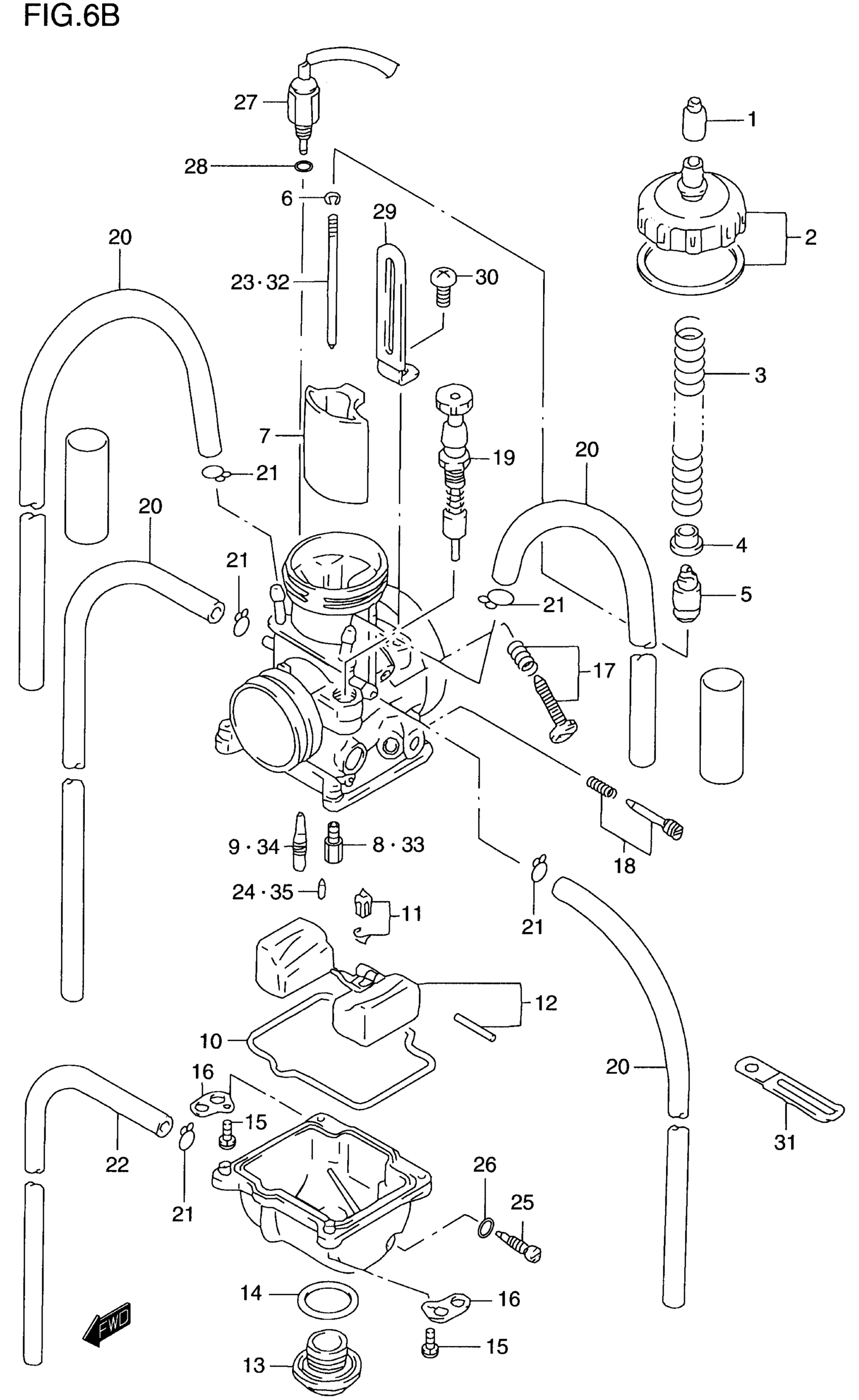

Suzuki RM125 (2000) CARBURETOR (MODEL X/Y) Diagram

#

Description
Price

CARBURETOR ASSY | MODEL X

13200-36E30

Unavailable

CARBURETOR ASSY | MODEL Y; Includes Item(s) 1 - 23

13200-36E40

Unavailable

1

CAP, CARBURETOR

13681-43D30

$10.23

2

CAP SET, TOP

13260-43D30

Unavailable

3

SPRING, THROTTLE VALVE

13573-43D30

Unavailable

4

COLLAR, THROTTLE VALVE

13424-43D30

$6.00

5

HOLDER, CABLE

13581-43D30

$25.67

6

CLIP, NEEDLE

13394-28E00

$5.25

7

VALVE, THROTTLE

13551-36E00

Unavailable

8

JET, MAIN (180) | MODEL X

09491-36008

$18.02

8

JET, MAIN (175) | MODEL Y

09491-35009

$17.68

9

JET, SLOW (55) | MODEL X

09492-55017

$18.02

9

JET, SLOW (50) | MODEL Y

09492-50023

$17.37

10

GASKET, FLOAT CHAMBER

13696-44E00

$11.58

11

VALVE SET, FLOAT

13370-43D30

$53.17

12

FLOAT SET

13240-28E00

Unavailable

13

BOLT, DRAIN

13247-28E00

$21.90

14

O RING

13246-28E00

$5.17

15

SCREW This part replaces 02112-34163.

02112-3416B

$2.19

16

PLATE

13693-36E00

$6.77

17

SCREW SET, STOP

13270-43D30

$19.13

18

SCREW SET, AIR

13280-43D30

$25.75

19

STARTER VALVE | MODEL X

13410-43D30

$91.08

19

STARTER VALVE | MODEL Y

13410-36E40

Unavailable

20

HOSE (4X7X620) | UP/RH L:620(r)580 UP/LH L:620(r)550 RH L:620(r)400 LH L:620(r)360

13686-36E00

$10.28

21

CLIP

09401-06101

$2.03

22

HOSE (3.5X6.5X600) | L:600(r)330

09351-35653-600

$4.64

23

NEEDLE, JET (R1469MS) | MODEL X

13383-28E00

Unavailable

23

NEEDLE, JET (R1469L) | MODEL Y

13383-36E20

Unavailable

24

JET, POWER (55) | Includes Item(s) 25 - 30

09492-55019

$18.02

25

SCREW, DRAIN

13247-44E00

Unavailable

26

O RING

13256-44E00

Unavailable

27

SOLENOID ASSY | MODEL X This part replaces 13160-37E00.

13160-37E01

$168.77

27

SOLENOID ASSY | MODEL Y

13160-37E01

$168.77

28

O RING

13453-37E00

$5.32

29

CLAMP

13451-37E00

Unavailable

30

SCREW

13452-37E00

Unavailable

31

CLAMP, AIR VENT (L:60) | MODEL X

09404-06429

$1.83

31

CLAMP | MODEL Y This part replaces 09404-06432.

09404-06039

$1.74

31

CLAMP, CARBURETOR HOSE (L:82)

09404-08206

$3.72

32

NEEDLE, JET (R1469MS) | OPT,MODEL X

13383-28E00

Unavailable

32

NEEDLE, JET (R1469NS) | OPT,MODEL X

13383-28E10

Unavailable

32

NEEDLE, JET (R1470MS) | OPT,MODEL X

13383-28E20

Unavailable

32

NEEDLE, JET (R1470NS) | OPT,MODEL X

13383-28E30

Unavailable

32

NEEDLE, JET (R1471MS) | OPT,MODEL X

13383-28E40

Unavailable

32

NEEDLE, JET (R1471NS) | OPT,MODEL X

13383-28E50

Unavailable

32

NEEDLE, JET (R1466MS) | OPT,MODEL X

13383-37E00

Unavailable

32

NEEDLE, JET (R1466NS) | OPT,MODEL X

13383-37E10

Unavailable

32

NEEDLE, JET (R1468NS) | OPT,MODEL X

13383-43D30

Unavailable

32

NEEDLE, JET (R1468MS) | OPT,MODEL X

13383-43D40

Unavailable

32

NEEDLE, JET (R1467NS) | OPT,MODEL X

13383-43D50

Unavailable

32

NEEDLE, JET (R1467MS) | OPT,MODEL X

13383-43D60

Unavailable

32

NEEDLE, JET (R1467LS) | OPT,MODEL Y

13383-36E00

Unavailable

32

NEEDLE, JET (R1468LS) | OPT,MODEL Y

13383-36E10

Unavailable

32

NEEDLE, JET (R1469LS) | OPT,MODEL Y

13383-36E20

Unavailable

32

NEEDLE, JET (R1470LS) | OPT,MODEL Y

13383-36E30

Unavailable

32

NEEDLE, JET (R1471LS) | OPT,MODEL Y

13383-36E40

Unavailable

32

NEEDLE, JET (R1467KS) | OPT,MODEL Y

13383-36E50

Unavailable

32

NEEDLE, JET (R1468KS) | OPT,MODEL Y

13383-36E60

Unavailable

32

NEEDLE, JET (R1469KS) | OPT,MODEL Y

13383-36E70

Unavailable

32

NEEDLE, JET (R1470KS) | OPT,MODEL Y

13383-36E80

Unavailable

32

NEEDLE, JET (R1471KS) | OPT,MODEL Y

13383-36E90

Unavailable

33

JET, MAIN (145) | OPT

09491-29014

$17.00

33

JET, MAIN (148) | OPT

09491-29015

Unavailable

33

JET, MAIN (150) | OPT

09491-30018

$18.02

33

JET, MAIN (152) | OPT

09491-30019

$18.02

33

JET, MAIN (155) | OPT

09491-31012

$18.02

33

JET, MAIN (158) | OPT

09491-31013

$18.02

33

JET, MAIN (160) | OPT

09491-32010

$17.37

33

JET, MAIN (162) | OPT

09491-32011

$17.37

33

JET, MAIN (165) | OPT

09491-33009

$17.37

33

JET, MAIN (168) | OPT

09491-33010

$17.37

33

JET, MAIN (170) | OPT

09491-34010

$17.37

33

JET, MAIN (172) | OPT

09491-34011

$17.37

33

JET, MAIN (175) | OPT

09491-35009

$17.68

33

JET, MAIN (178) | OPT

09491-35010

$18.02

33

JET, MAIN (180) | OPT

09491-36008

$18.02

33

JET, MAIN (185) | OPT

09491-37008

Unavailable

33

JET, MAIN (190) | OPT

09491-38011

Unavailable

33

JET, MAIN (195) | OPT

09491-39001

Unavailable

33

JET, MAIN (200) | OPT

09491-40013

$18.02

34

JET, PILOT (35) | OPT

09492-35019

$17.68

34

JET, PILOT (40) | OPT

09492-40022

$17.37

34

JET, PILOT (45) | OPT

09492-45032

$17.37

34

JET, PILOT (50) | OPT

09492-50023

$17.37

34

JET, PILOT (52) | OPT

09492-52011

$17.68

34

JET, PILOT (55) | OPT

09492-55017

$18.02

34

JET, PILOT (58) | OPT

09492-58001

$18.02

34

JET, PILOT (60) | OPT

09492-60016

Unavailable

34

JET, PILOT (65) | OPT

09492-65008

Unavailable

34

JET, PILOT (70) | OPT

09492-70009

Unavailable

35

JET, POWER (50) | OPT

09492-50025

Unavailable

35

JET, POWER (55) | OPT

09492-55019

$18.02

35

JET, POWER (60) | OPT

09492-60018

Unavailable
