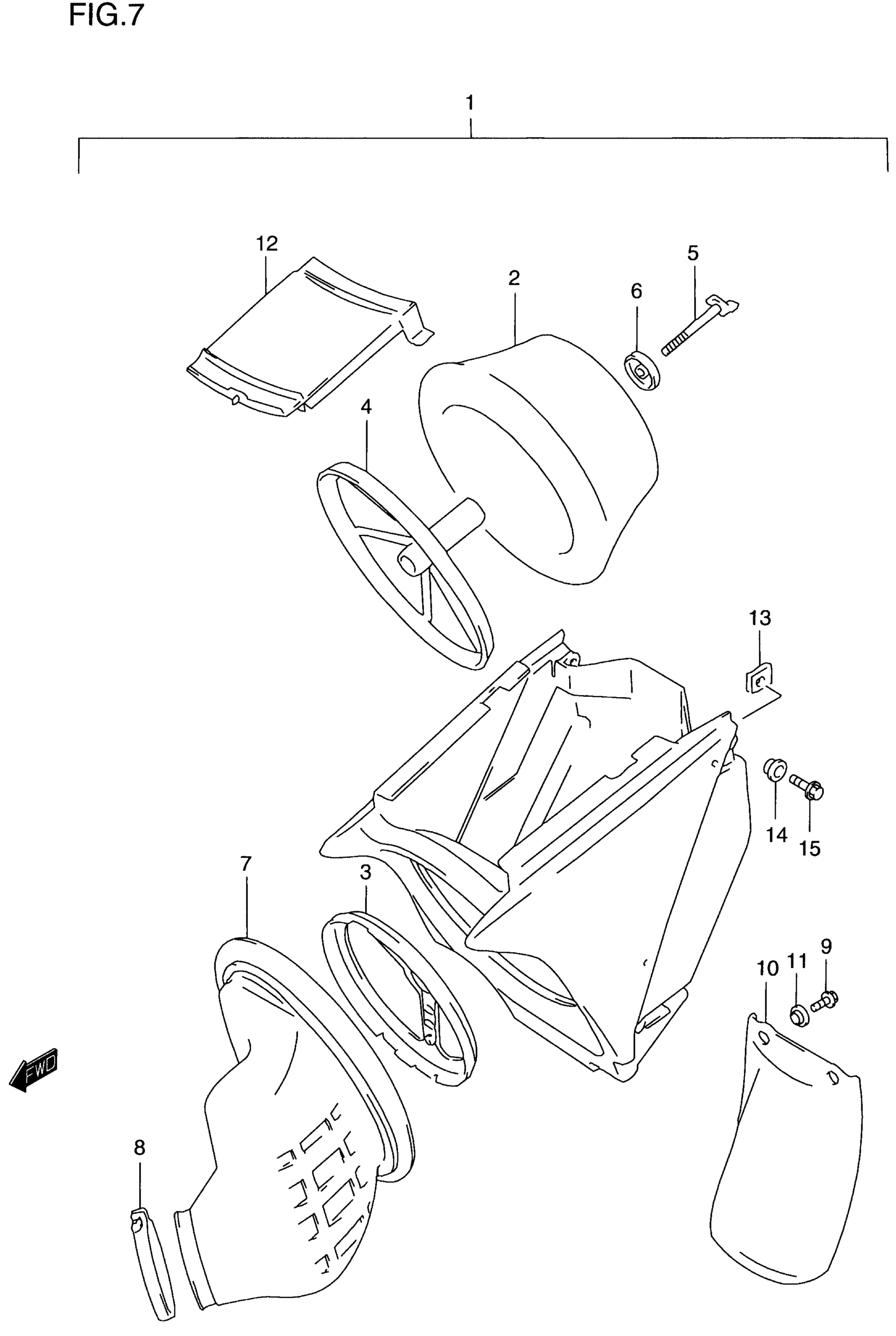

Suzuki RM125 (2000) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL T/V This part replaces 13700-36E00.

13700-36E01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL W This part replaces 13700-36E10.

13700-36E11

Unavailable

1

CLEANER ASSY, AIR | MODEL X

13700-36E01

Unavailable

1

CLEANER ASSY, AIR | MODEL Y; Includes Item(s) 2 - 12

13700-36E20

Unavailable

2

FILTER ASSY | MODEL T/V/W/X

13780-36E00

Unavailable

2

FILTER ASSY | MODEL Y

13780-36E20

Unavailable

3

BASE, FILTER

13790-36E00

$23.92

4

HOLDER, FILTER

13791-36E00

$15.43

5

.BOLT,WING | MODEL T/V/W This part replaces 13831-28E00.

13831-37F20

$8.07

5

BELT, WING | MODEL X/Y

13831-37E20

Unavailable

6

WASHER

13792-13A01

$4.34

7

TUBE, OUTLET | MODEL T/V

13881-36E00

Unavailable

7

TUBE, OUTLET | MODEL W

13881-36E10

Unavailable

7

TUBE, OUTLET | MODEL X/Y

13881-36E00

Unavailable

8

CLAMP This part replaces 09402-70203.

09402-70902

$5.64

9

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

10

MUD GUARD | MODEL T This part replaces 13738-36E00.

13738-36E01

$21.90

10

MUD GUARD | MODEL V/W/X/Y

13738-36E01

$21.90

11

COLLAR, MUD GUARD

13838-02B00

$3.56

12

CAP, CLEANER

13741-36E00

Unavailable

13

NUT This part replaces 71812-82010.

09148-06021

$3.56

14

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49

15

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45
