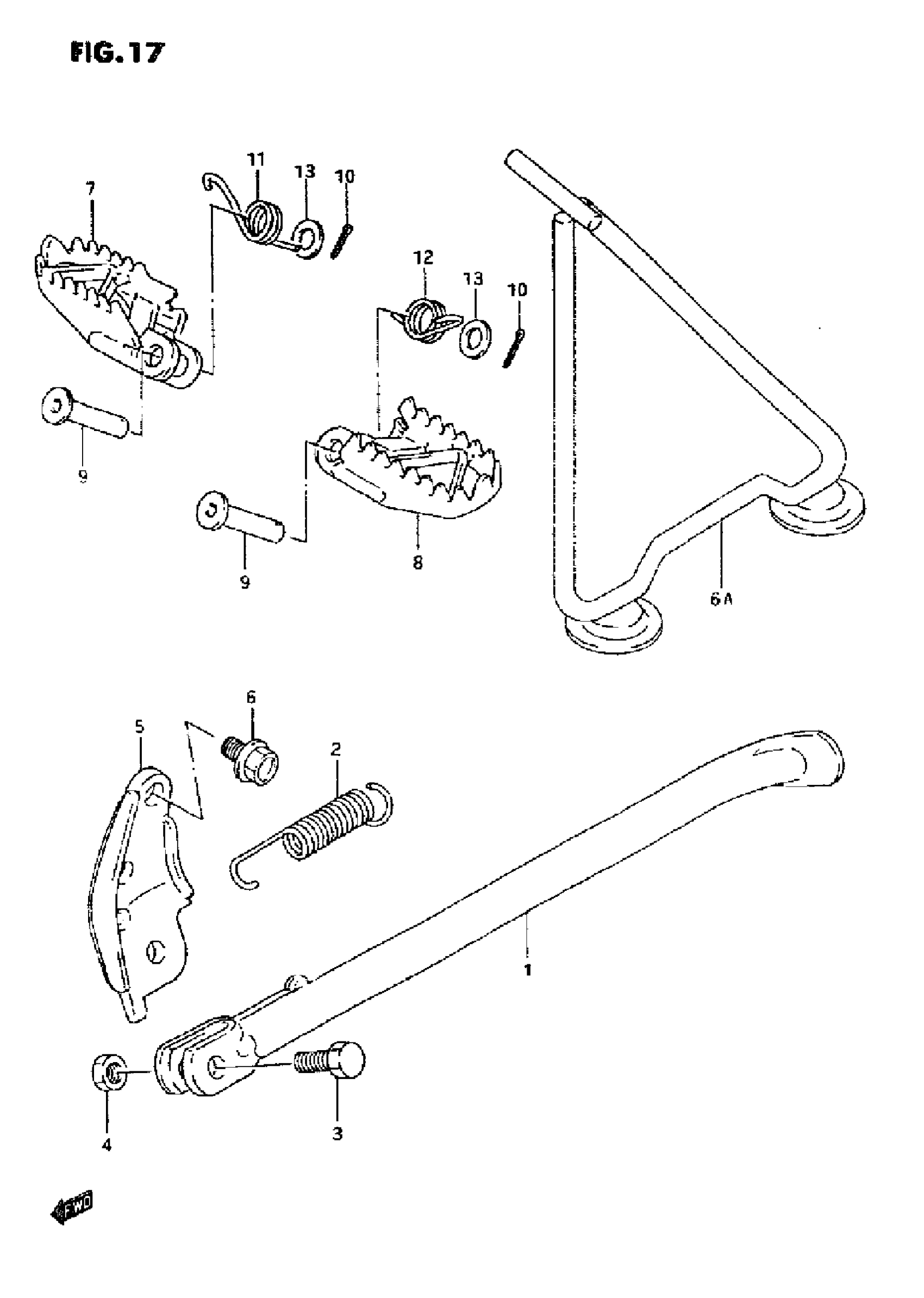

Suzuki RM125 (1995) STAND - FOOTREST Diagram

#

Description
Price

1

STAND, PROP (BLACK) | MODEL N/P

42310-26C00-019

Unavailable

2

SPRING | MODEL N/P

09443-17007

$3.91

3

BOLT (10X30) | MODEL N/P

09100-10067

$2.61

4

NUT | MODEL N/P This part replaces 08310-22107.

08310-00107

$2.19

5

BRACKET (BLACK) | MODEL N/P

42330-26C00-019

Unavailable

6

PLUG, OIL GALLERY | MODEL N This part replaces 01517-10165.

01550-1016A

$3.10

6

PLUG, OIL GALLERY | MODEL P This part replaces 01534-10168.

01550-1016A

$3.10

6

STAND, PROP | MODEL R/S This part replaces 42310-28E10.

42310-28E11

Unavailable

7

FOOTREST, RH | MODAL N This part replaces 43550-28C30-1AZ.

43550-29E01

$111.52

7

FOOTREST, RH | MODEL P This part replaces 43550-28C30-019.

43550-29E01

$111.52

7

FOOTREST, RH | MODEL R/S

43551-28E10

Unavailable

8

FOOTREST, LH | MODEL N This part replaces 43560-28C30-1AZ.

43560-29E01

$109.42

8

FOOTREST, LH | MODEL P This part replaces 43560-28C30-019.

43560-29E01

$109.42

8

FOOTREST, LH | MODEL R/S

43561-28E10

Unavailable

9

PIN

09200-10019

$6.83

10

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

11

SPRING, RH

09448-18030

$5.36

12

SPRING, LH

09448-18029

$5.36

13

WASHER | MODEL N/P This part replaces 08322-11107.

08322-01107

$2.15

13

WASHER, KNUCKLE END | MODEL R/S This part replaces 08322-01103.

08322-0110A

$1.84
