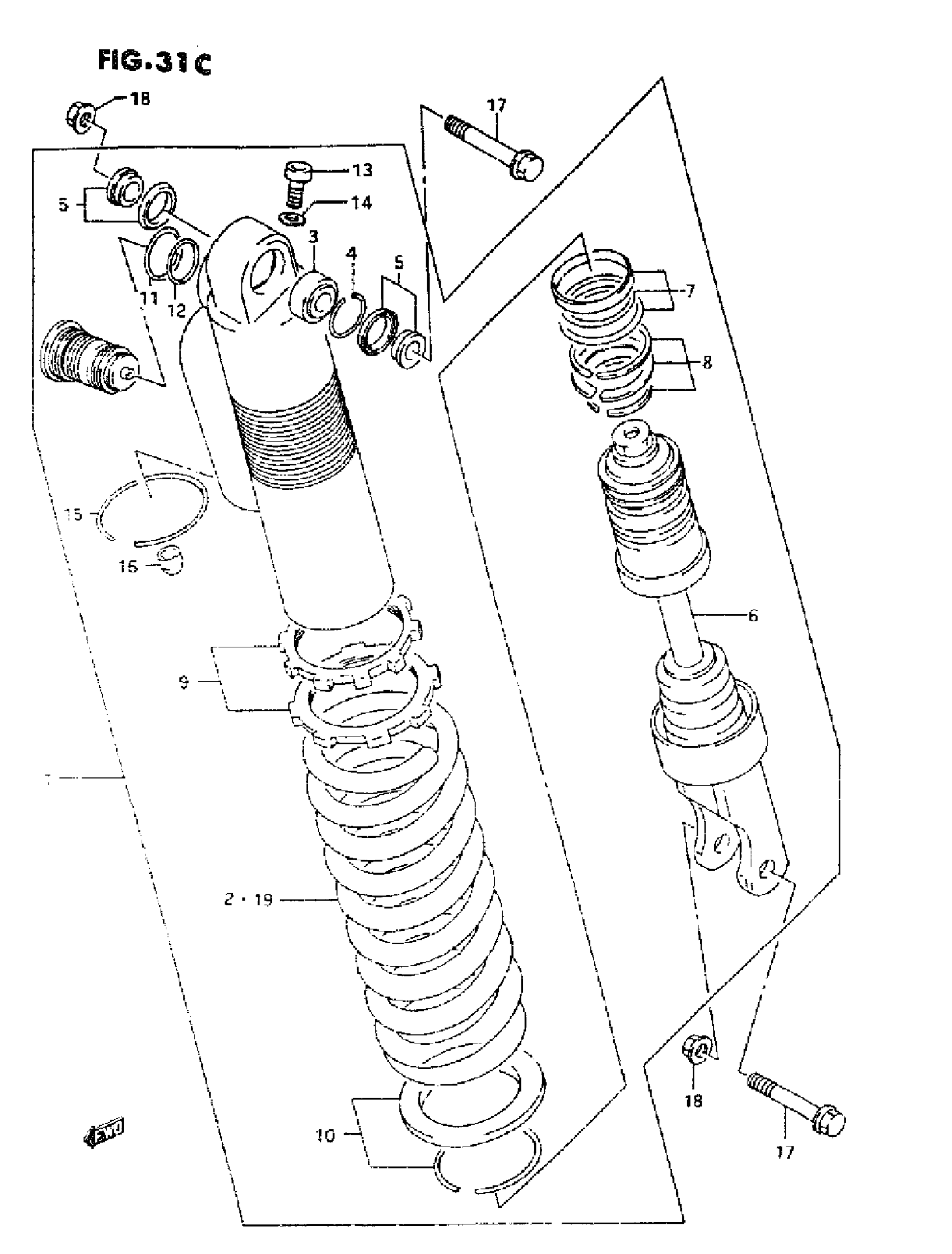

Suzuki RM125 (1995) SHOCK ABSORBER (MODEL S) Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK (YELLOW)

62100-43D70-163

Unavailable

2

SPRING (SOFT,K=4.8) This part replaces 62211-27C80.

62211-37E00

Unavailable

3

BEARING

62175-28E00

Unavailable

4

STOP RING

62277-27C40

$3.95

5

DUST SEAL SET

62680-28E00

Unavailable

6

ROD, PISTON

62120-43D70

Unavailable

7

O RING SET

62150-28E00

Unavailable

8

RING STOPPR SET

62290-28E00

Unavailable

9

ADJUSTER NUT SET

62190-28E00

Unavailable

10

SPRING SEAT SET

62220-28E00

Unavailable

11

O RING

62131-28E00

$5.00

12

O RING, INNER

51174-43D00

$4.82

13

BOLT

62281-28E40

Unavailable

14

GASKET

51183-31030

$3.77

15

RING, STOPPER

62278-27C40

Unavailable

16

CAP

51294-20400

$7.37

17

BOLT

62311-28E00

$6.19

18

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

19

SPRING (HARD) | OPT

62211-27C90

Unavailable

19

SPRING (SOFT) | OPT

62211-27C70

Unavailable
