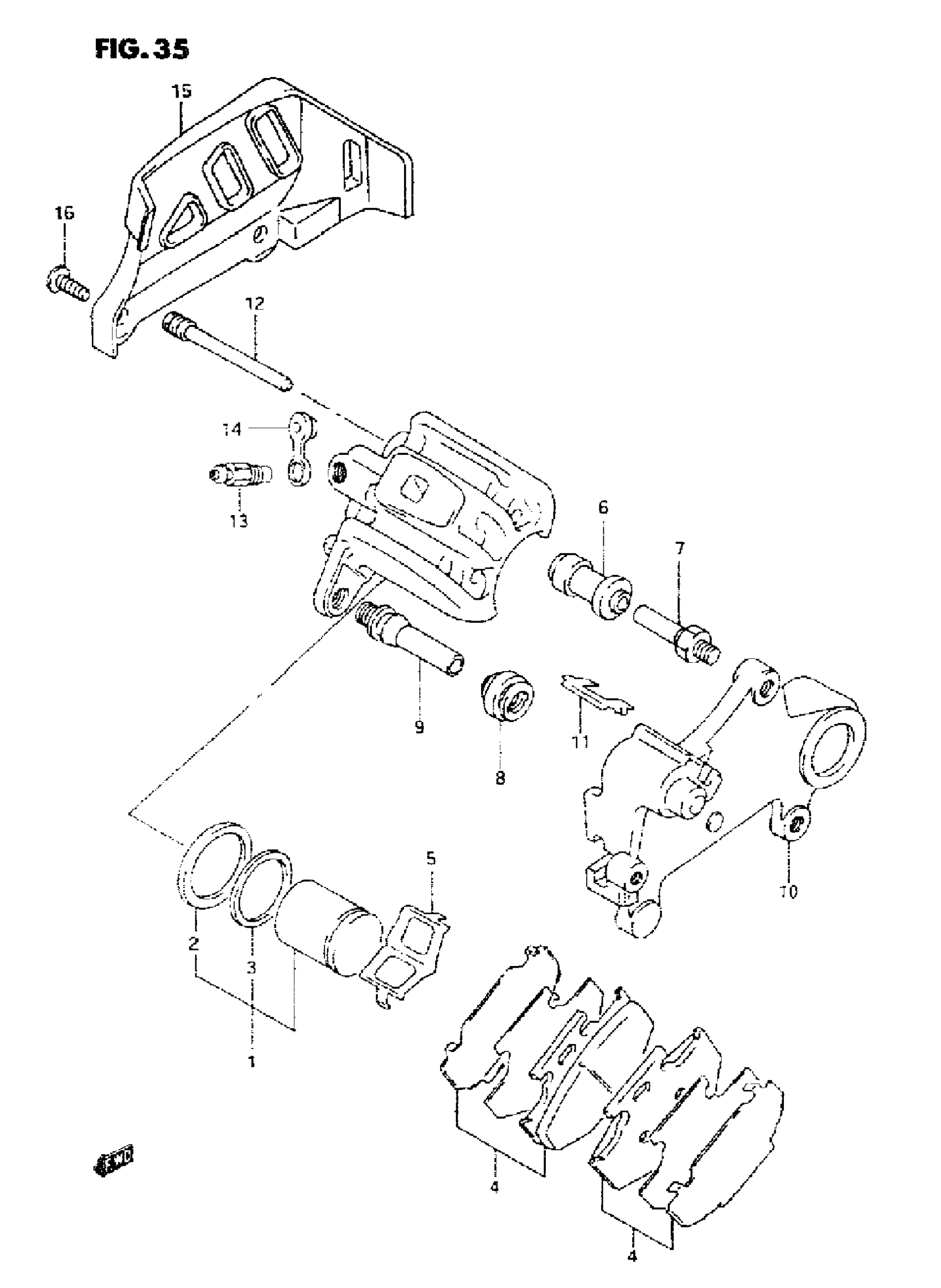

Suzuki RM125 (1995) REAR CALIPERS (MODEL N) Diagram

#

Description
Price

1

CALIPER ASSY, REAR | ->69100-43D01 This part replaces 69100-43D00.

69100-43D01

Unavailable

1

CALIPER ASSY, REAR

69100-43D01

Unavailable

1

PISTON SET

69100-43810

$36.64

2

SEAL SET, PISTON This part replaces 59107-00B20.

69100-36810

$9.03

3

SEAL, DUST

59108-00B20

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 69100-43820.

69100-43821

Unavailable

5

SPRING

59315-27C10

$11.68

6

BOOT

59386-13A00

$7.95

7

PIN

59382-14500

$8.95

8

BOOT

59303-14500

$5.52

9

PIN

59305-27C00

$23.48

10

BRACKET

69351-43D01

Unavailable

11

RETAINER

69113-43D00

$8.83

12

.PIN HANGER

69345-43D00

$11.55

13

BLEEDER

59121-01A00

$8.73

14

CAP

59122-01A00

$4.34

15

GUARD, CALIPER

69725-27C30

Unavailable

16

SCREW

09139-06027

$2.16
