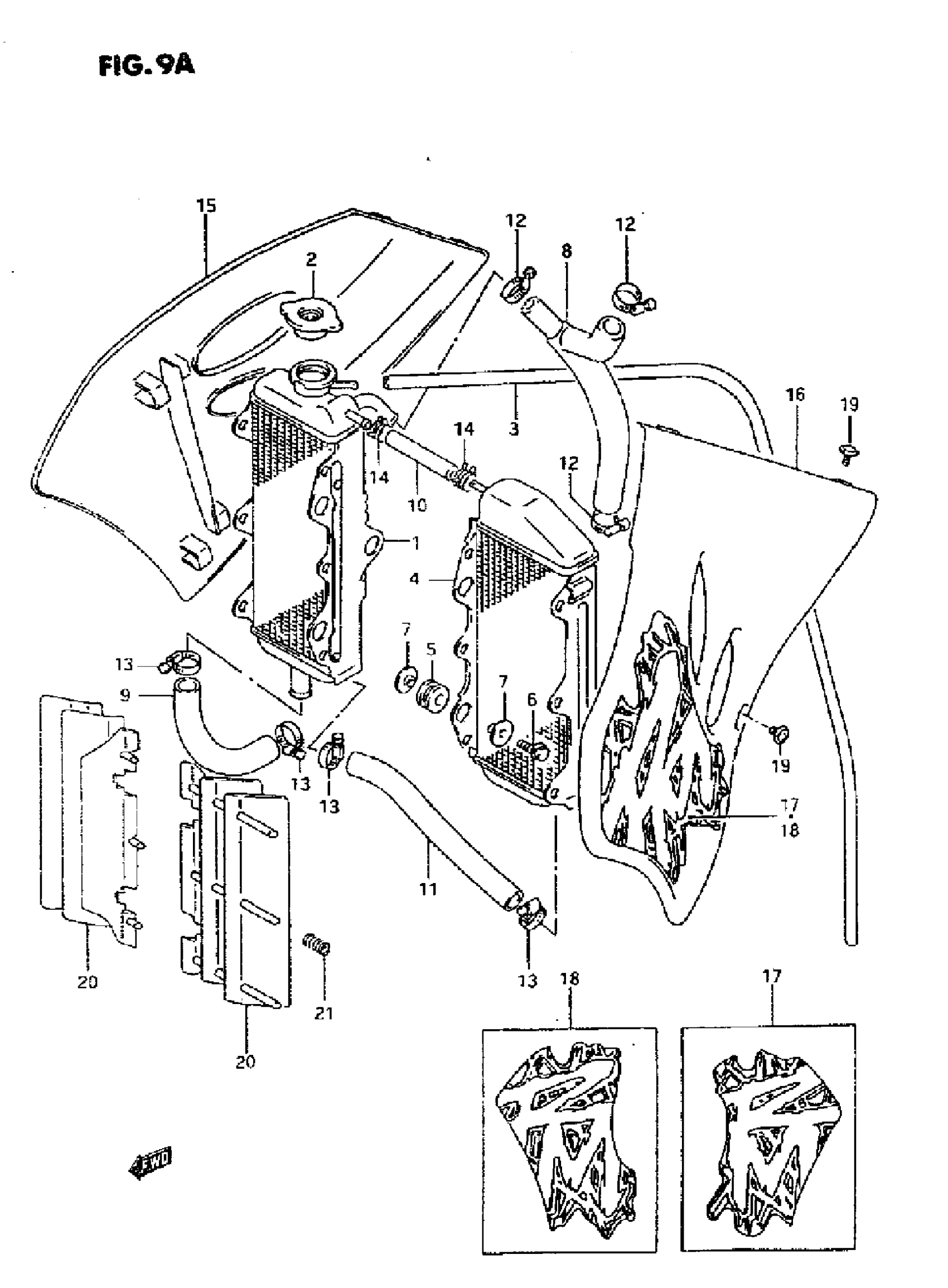

Suzuki RM125 (1995) RADIATOR (MODEL R/S) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 17710-43D11.

17710-43D12

Unavailable

2

CAP, RADIATOR This part replaces 17730-12C01.

17730-08J00

$42.50

3

HOSE, OVER FLOW | L:2000->650

09351-50803-00B

$9.10

4

RADIATOR, LH

17720-28E02

Unavailable

5

CUSHION, SUPPORT

17787-19A00

$3.56

6

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

7

WASHER, RADIATOR SUPPORT

17781-26C00

$2.81

8

HOSE, INLET

17851-43D10

Unavailable

9

HOSE, OUTLET

17852-43D00

Unavailable

10

HOSE, BYPASS | MODEL R This part replaces 17855-28E00.

17854-13810

Unavailable

10

HOSE, BYPASS | MODEL S This part replaces 17854-13A00.

17854-13810

Unavailable

11

HOSE, JOINT NO.2 This part replaces 17854-43D00.

17854-43810

$13.32

12

CLAMP | MODEL R This part replaces 09402-25502.

09402-28511

$6.88

12

CLAMP | MODEL S

09402-28511

$6.88

13

CLAMP | MODEL R This part replaces 09402-22502.

09402-22511

$7.05

13

CLAMP | MODEL S

09402-22511

$7.05

14

CLAMP | MODEL R This part replaces 09401-13406.

09401-13404

Unavailable

14

CLIP | MODEL S

09401-13414

$2.62

15

COVER, RADIATOR RH (YELLOW) | MODEL R

17761-28E01-25Y

Unavailable

15

COVER, RADIATOR RH (YELLOW) | MODEL S This part replaces 17761-28E01-2TX.

17761-28E01-25Y

Unavailable

16

COVER, RADIATOR LH (YELLOW) | MODEL R

17762-28E01-25Y

Unavailable

16

COVER, RADIATOR LH (YELLOW) | MODEL S This part replaces 17762-28E01-2TX.

17762-28E01-25Y

Unavailable

17

EMBLEM, RADIATOR COVER RH | MODEL R

68661-28E10-C2M

Unavailable

17

EMBLEM, RADIATOR COVER RH | MODEL S

68661-28E10-D0J

Unavailable

18

EMBLEM, RADIATOR COVER LH | MODEL R

68671-28E10-C2M

Unavailable

18

EMBLEM, RADIATOR COVER LH | MODEL S

68671-28E10-D0J

Unavailable

19

SCREW

09136-06002

$2.44

20

LOUVER, RADIATOR

17831-26C00

$19.41

21

SPRING This part replaces 09440-11024.

09440-11024-XC0

$3.79
