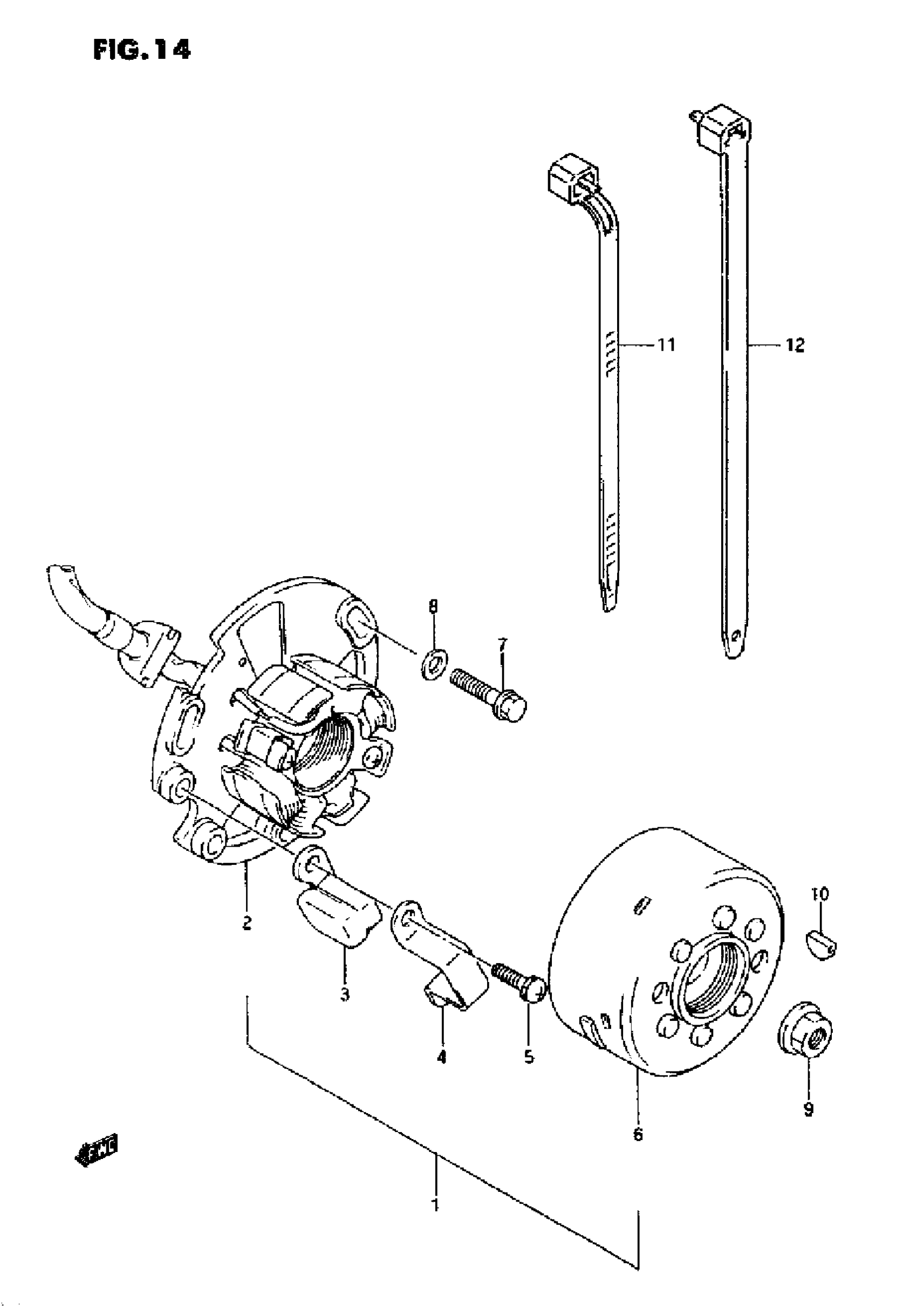

Suzuki RM125 (1995) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | MODEL N/P

32100-43D00

Unavailable

1

MAGNETO ASSY | MODEL R This part replaces 32100-43D10.

32100-43D11

Unavailable

1

MAGNETO ASSY | MODEL S

32100-43D11

Unavailable

2

STATOR ASSY | MODEL N/P

32101-43D00

Unavailable

2

STATOR ASSY | MODEL R/S

32101-43010

Unavailable

3

COIL, PULSER | MODEL N/P This part replaces 32160-27C00.

32150-05D00

Unavailable

3

COIL, PICK UP | MODEL R/S

32150-05D00

Unavailable

4

HOLDER, PICK UP COIL

32157-27C01

Unavailable

5

SCREW This part replaces 02112-75163.

02112-7516A

$2.41

6

ROTOR | MODEL N/P

32102-43D00

Unavailable

6

ROTOR | MODEL R This part replaces 32102-43D10.

32102-43D11

Unavailable

6

ROTOR | MODEL S

32102-43D11

Unavailable

7

SCREW

01547-06207

$2.01

8

WASHER

09164-06003

$2.07

9

NUT This part replaces 08316-10103.

08316-1010B

$2.66

10

KEY | MODEL N/P This part replaces 08341-31049.

09420-04008

$3.42

10

KEY | MODEL R/S

09420-04008

$3.42

11

CLAMP (L: 165)

09407-18402

$2.19

12

CLAMP (L:235)

09407-25401

$4.66
