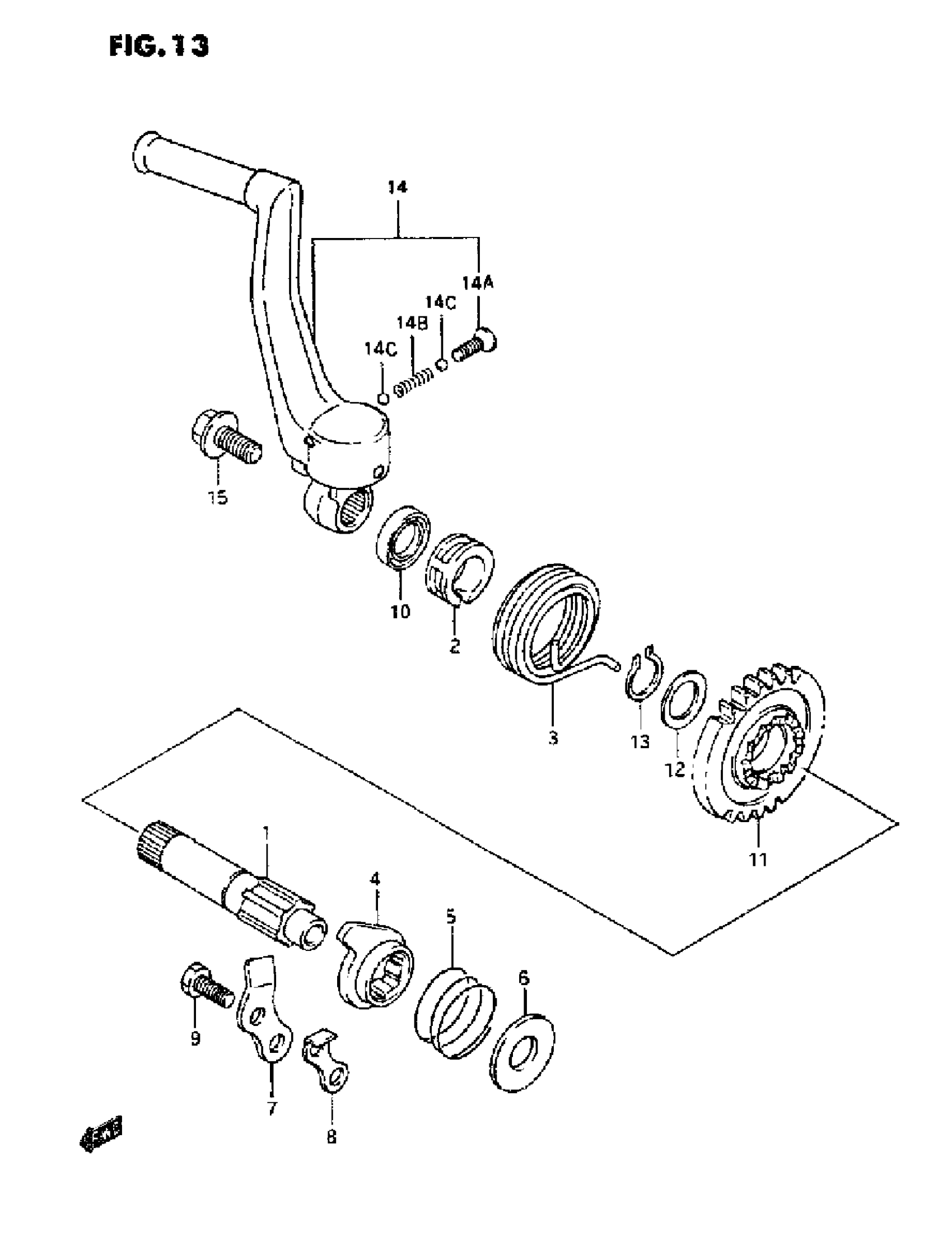

Suzuki RM125 (1995) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER This part replaces 26211-27C00.

26211-27C02

$113.25

2

GUIDE, SPRING

26221-27C00

$5.35

3

SPRING

09448-45013

$12.50

4

STARTER, KICK This part replaces 26231-02B00.

26231-02B02

$36.17

5

SPRING

09440-31002

$2.22

6

PLATE

08211-12301

$2.03

7

GUIDE, KICK STARTER

26232-40200

$7.08

8

STOPPER, KICK STARTER This part replaces 26233-40200.

26233-40201

$5.52

9

BOLT, CANISTER | MODEL N/P This part replaces 01107-06167.

01500-06167

$1.97

9

BOLT | MODEL R/S This part replaces 01500-06123.

01500-0612A

$1.78

10

OIL SEAL (16X24X5) | MODEL N/P/R

09285-16003

$3.42

10

OIL SEAL (15.8X24X5) | MODEL S

09283-16004

$6.37

11

GEAR, KICK DRIVE (NT:27) This part replaces 26241-43D00.

26241-43D01

$107.47

12

WASHER (16X24X0.50) This part replaces 08221-16245.

09181-16158

$2.71

13

CIRCLIP This part replaces 08331-31166.

08331-31169

$1.78

14

LEVER ASSY,KICK | MODEL N This part replaces 26300-27C31.

26300-36E11

Unavailable

14

LEVER ASSY,KICK | MODEL P/R This part replaces 26300-27C33.

26300-36E11

Unavailable

14

LEVER ASSY,KICK | MODEL S This part replaces 26300-27C34.

26300-36E11

Unavailable

14

SCREW, KICK STARTER

09127-06016

$2.96

14

SPRING, KICK STARTER

09440-05031

$1.49

14

BALL

06111-07004

$1.49

15

BOLT (8X14)

09103-08253

$3.10
