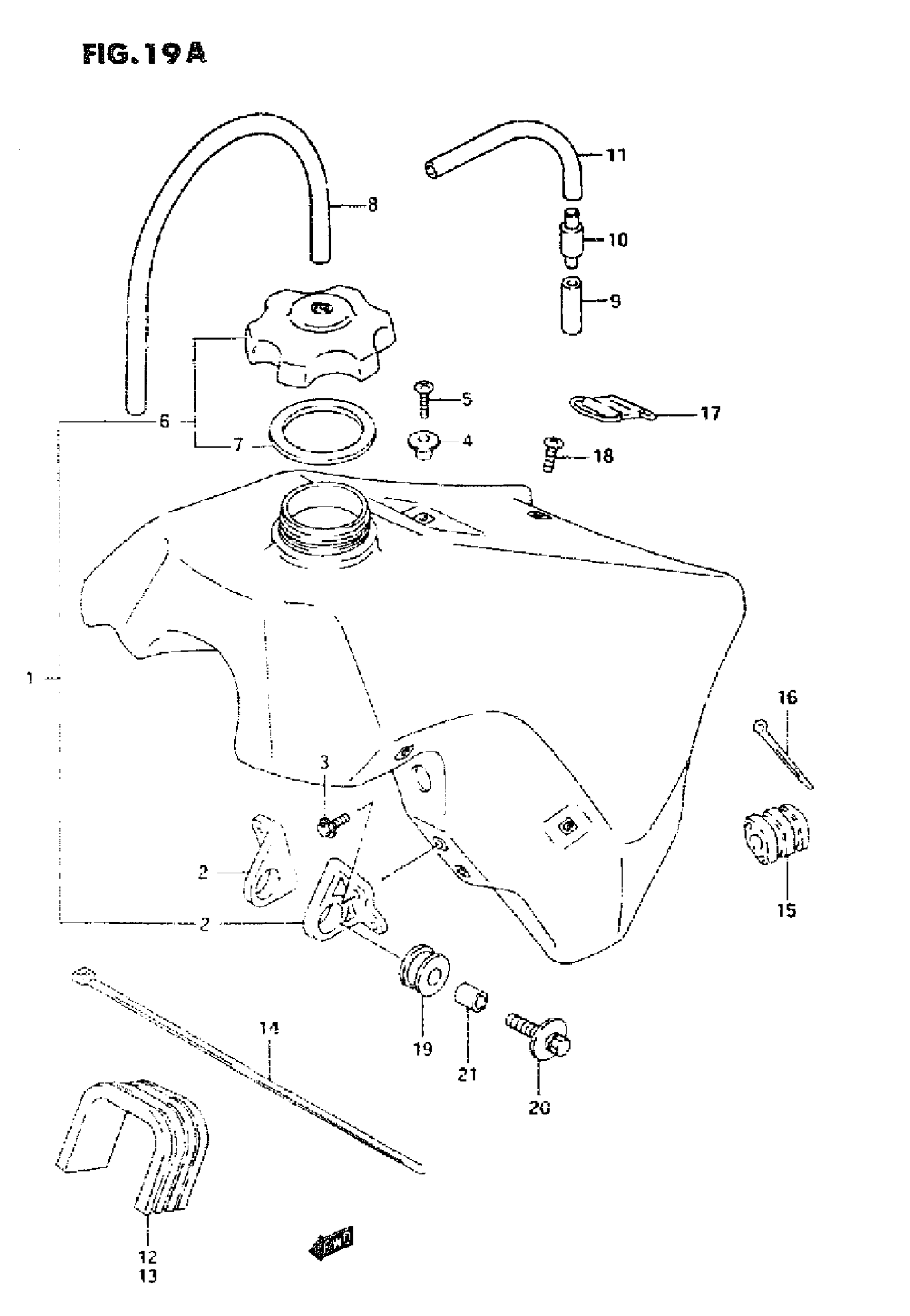

Suzuki RM125 (1995) FUEL TANK (MODEL P/R/S) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-43870-1TD.

44100-43871-1TD

Unavailable

2

BRACKET, FRONT

44131-27C01

$12.63

3

BOLT, FRONT

01547-06127

$1.65

4

HOOK, SEAT FR | MODEL P This part replaces 44132-27C00.

44132-27C01

$17.17

4

HOOK, SEAT FR | MODEL R/S

44132-27C01

$17.17

5

SCREW, HOOK

02142-06207

$1.49

6

CAP SET,FUEL TA This part replaces 44200-27860.

44200-27871

$22.96

7

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$4.21

8

HOSE,5X10X600 | MODEL P This part replaces 09352-50823-600.

44421-13ER0

$10.06

9

HOSE,5X10X600 | MODEL R/S This part replaces 09352-50823-600.

44421-13ER0

$10.06

10

PLUG, FUEL TANK BREATHER | MODEL R/S

44240-28E00

Unavailable

11

HOSE,5X10X600 | MODEL R/S This part replaces 09352-50823-600.

44421-13ER0

$10.06

12

CUSHION, NO.2

44541-43D10

Unavailable

13

CUSHION, UPPER NO.1 | MODEL P This part replaces 44541-43D20.

44541-43D10

Unavailable

13

CUSHION | MODEL R/S

44541-43D10

Unavailable

14

CLAMP

09407-30402

$4.11

15

CUSHION, UPPER REAR

44542-26C00

$9.33

16

CLAMP, REAR

09407-14407

$3.57

17

BAND, REAR

44560-27C00

$7.69

18

SCREW | MODEL P This part replaces 02142-06164.

02142-0616A

$1.49

18

SCREW | MODEL R/S This part replaces 02142-06163.

02142-0616A

$1.49

19

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.74

20

BOLT, FRONT

09118-06109

Unavailable

21

SPACER This part replaces 09180-06062.

09180-06268

$2.19
