1995 Suzuki RM125 Frame - Seat Diagram

← All diagrams

Find the part on the Frame - Seat diagram for your 1995 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

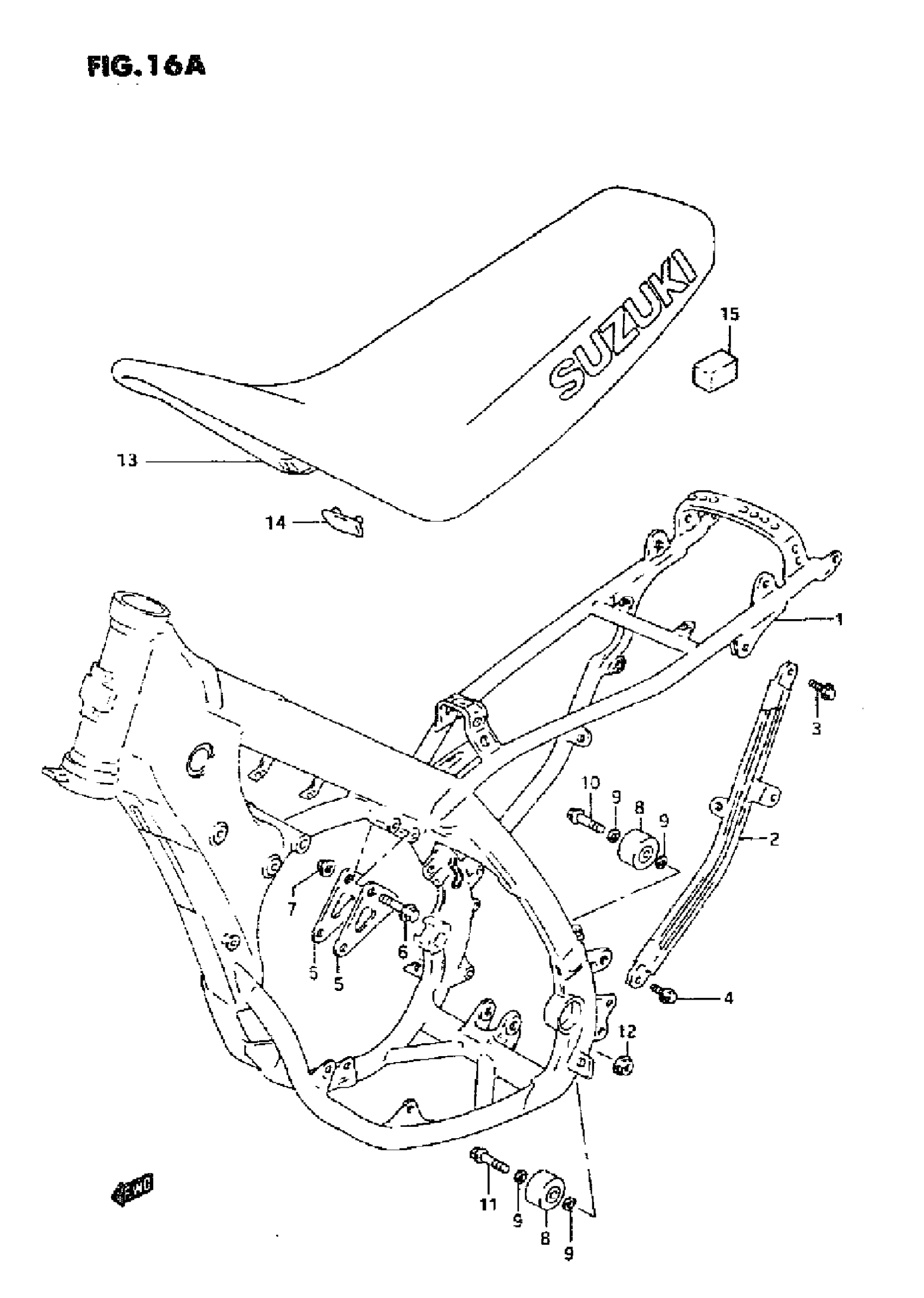

1995 Suzuki RM125 Frame - Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME SET (CHARCOAL) | MODEL S

41100-43D30-24K

1
Out of stock

2

TUBE, FRAME SIDE

41670-28E01

1
Out of stock

3

1

$3.42

In stock

4

BOLT This part replaces 01560-08163.

01560-0816A

1
Out of stock

5

PLATE, ENGINE MOUNTING UPPER

41993-43D02

2
Out of stock

6

BOLT

09103-08083

2

$3.64

In stock

7

NUT

09159-08067

2

$5.39

In stock

8

ROLLER, CHAIN CONTROL

43910-27C11

2

$72.98

In stock

9

WASHER

08211-08121

4

$2.16

In stock

10

BOLT, UPPER

09103-08083

1

$3.64

In stock

11

BOLT, LOWER

09103-08043

1
Out of stock

12

NUT, LOWER

08319-31087

1

$2.48

In stock

13

SEAT ASSY | MODEL R This part replaces 45100-28E11-A5K.

45100-28E12-D6Z

1
Out of stock

13

SEAT ASSY | MODEL S

45100-28E12-D6Z

1
Out of stock

14

CUSHION

09329-10001

2

$2.56

In stock

15

CUSHION, SIDE

45299-28E00

2
Out of stock
