1995 Suzuki RM125 Frame - Seat Diagram

← All diagrams

Find the part on the Frame - Seat diagram for your 1995 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

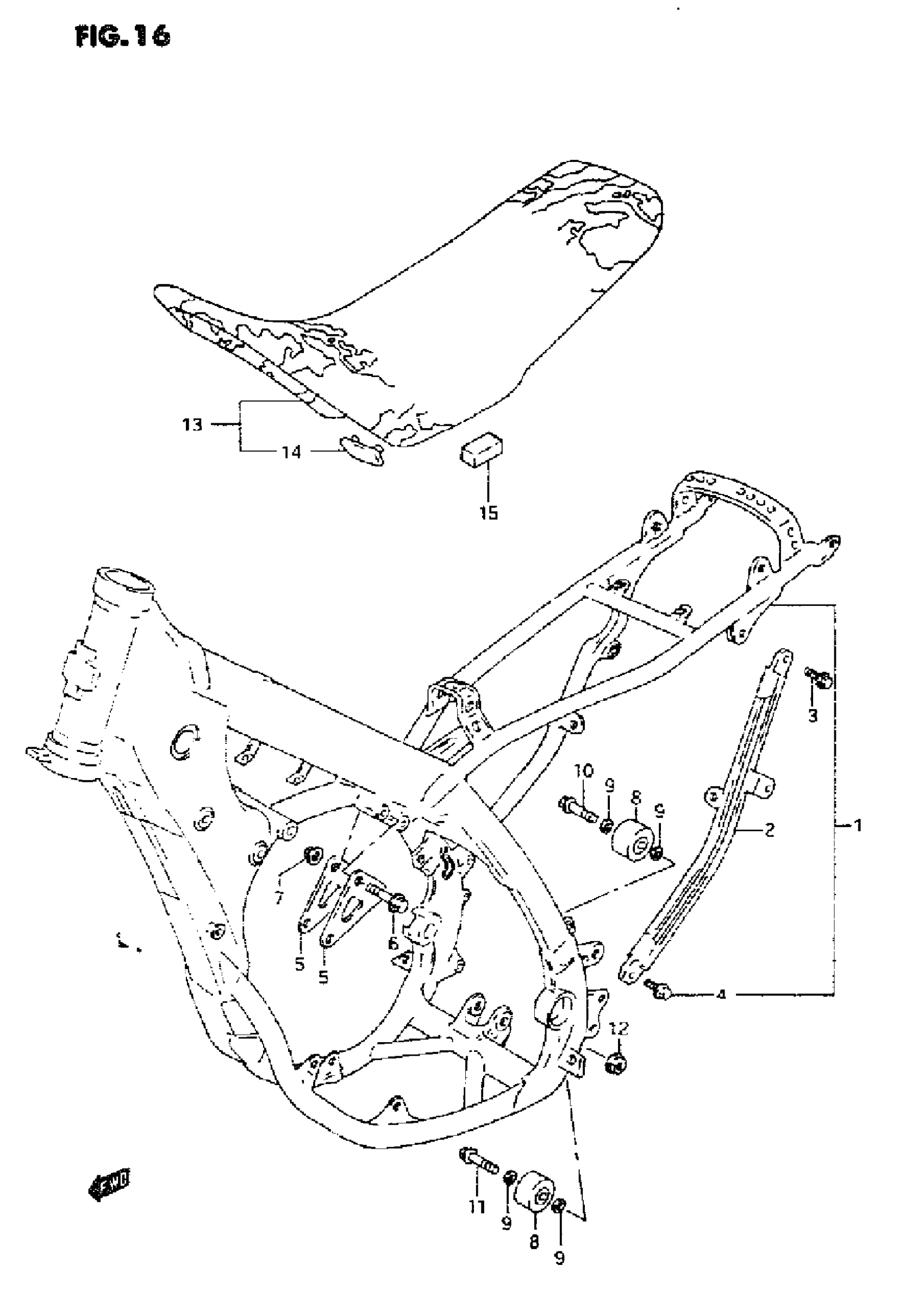

1995 Suzuki RM125 Frame - Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME SET (YELLOW) | MODEL N

41100-43820-1AZ

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 41100-43830-24K.

41100-43831-24K

1
Out of stock

2

TUBE, FRAME SIDE | MODEL N

41670-43D00

1
Out of stock

2

TUBE, FRAME SIDE LH | MODEL P This part replaces 41670-28E00.

41670-28E01

1
Out of stock

3

BOLT M8X16 | MODEL N This part replaces 01127-08168.

01550-08167

1
Out of stock

3

BOLT, REAR LH | MODEL P This part replaces 01124-08208.

01550-08207

1
Out of stock

4

BOLT | MODEL N This part replaces 01127-08257.

01550-08257

1
Out of stock

4

BOLT M8X16 | MODEL P This part replaces 01127-08168.

01550-08167

1
Out of stock

5

PLATE, ENGINE MOUNTING UPPER This part replaces 41993-43D00.

41993-43D02

2
Out of stock

6

BOLT

09103-08083

2
Out of stock

7

NUT | MODEL N

09159-08034

2

$1.73

In stock

7

NUT | MODEL P

09159-08067

2
Out of stock

8

ROLLER, CHAIN CONTROL

43910-27C11

2
Out of stock

9

WASHER

08211-08121

4
Out of stock

10

BOLT, UPPER

09103-08083

1
Out of stock

11

BOLT, LOWER

09103-08043

1
Out of stock

12

NUT, LOWER

08319-31087

1
Out of stock

13

SEAT ASSY | MODEL N

45100-27C10-K33

1
Out of stock

13

SEAT ASSY | MODEL P This part replaces 45100-28E00-A5K.

45100-28E12-D6Z

1
Out of stock

14

CUSHION | MODEL N

09321-08009

2
Out of stock

14

CUSHION | MODEL P

09329-10001

2

$2.56

In stock

15

CUSHION, SIDE | MODEL P

45299-28E00

2
Out of stock
