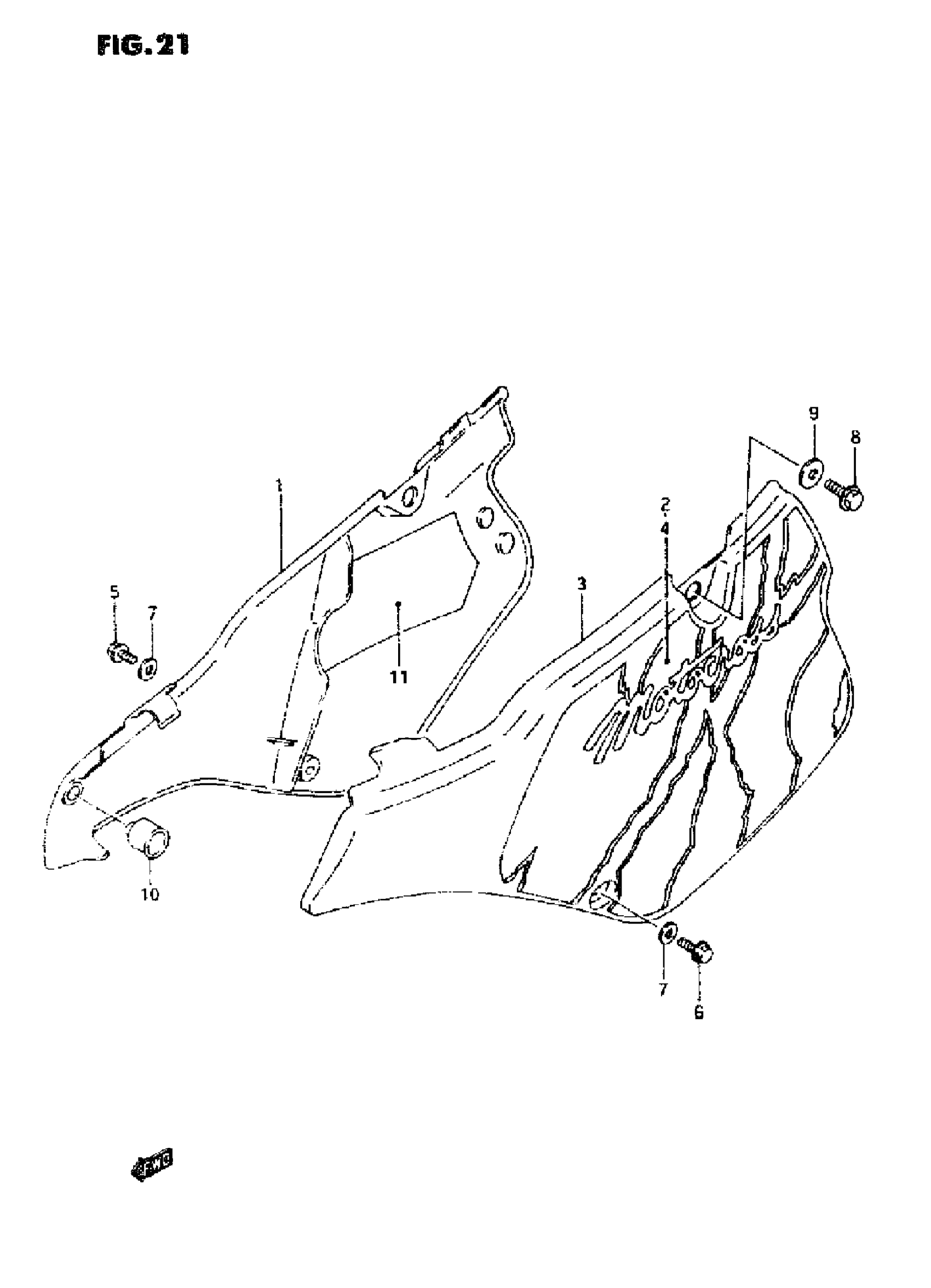

Suzuki RM125 (1995) FRAME COVER (MODEL N) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE)

47111-27C02-30H

Unavailable

2

TAPE, RH

68132-43D10-1JH

Unavailable

3

COVER, FRAME LH (WHITE)

47211-27C00-30H

Unavailable

4

TAPE, LH

68142-43D10-1JH

Unavailable

5

BOLT, FRONT

01547-06127

$1.65

6

BOLT, FRONT LH

01547-06167

$1.65

7

WASHER

09168-06027

$2.80

8

BOLT, REAR This part replaces 01107-08207.

01500-08207

$2.53

9

WASHER, REAR

09169-08045

$2.23

10

CUSHION, MUFFLER REAR

09321-10027

$6.80

11

SHIELD,FRM CVR, This part replaces 47166-27C01.

47167-28C10

Unavailable
