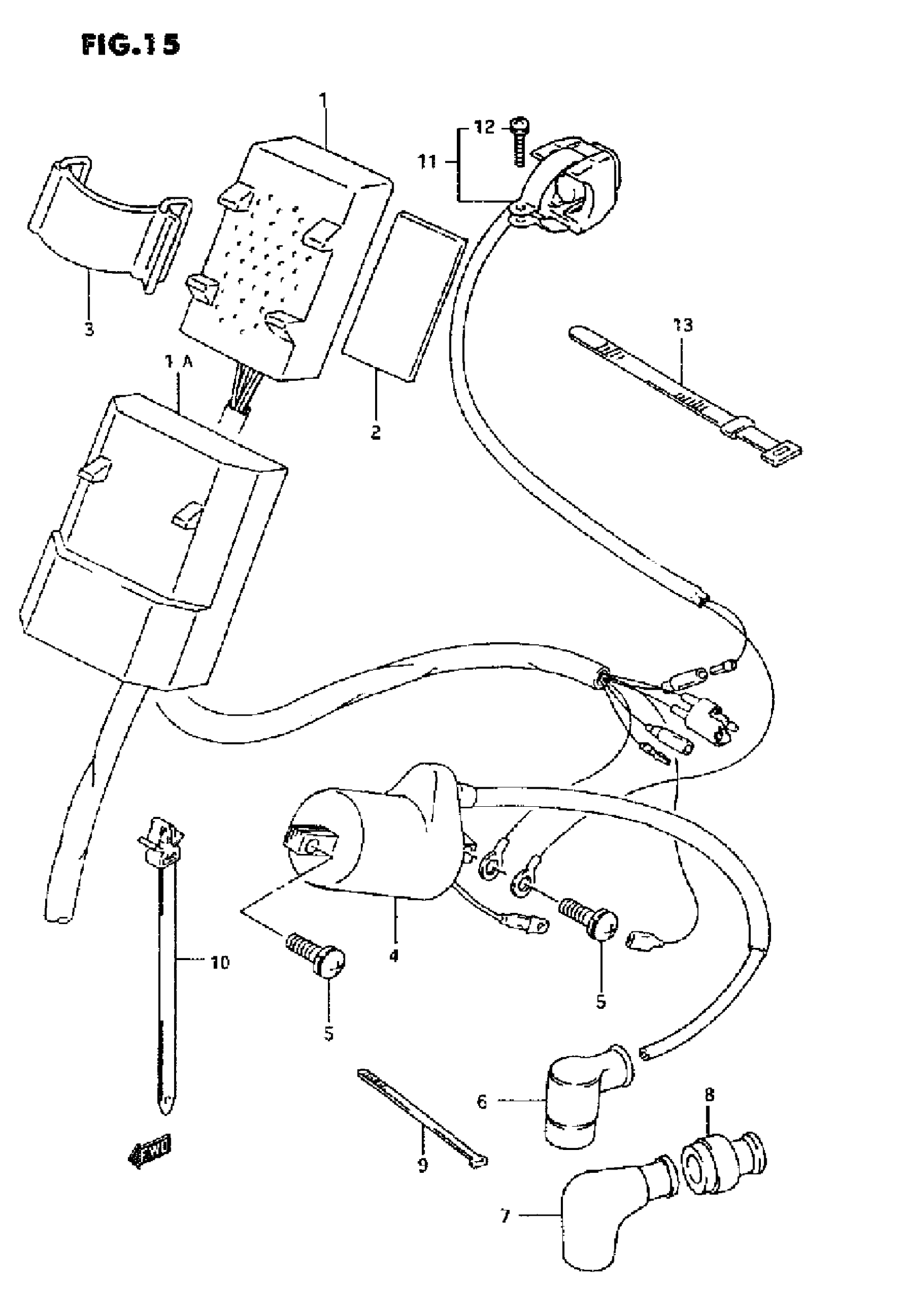

Suzuki RM125 (1995) ELECTRICAL Diagram

#

Description
Price

1

C.D.I. UNIT | MODEL N/P

32900-43D00

$807.78

1

C.D.I. UNIT | MODEL R

32900-43D10

Unavailable

1

C.D.I. UNIT | MODEL S

32900-43D20

Unavailable

2

PROTECTOR | CUT AS REQUIRED PROFILE (30X50X3)

33651-37000

$4.48

3

BAND | MODEL N/P

32942-14111

$8.62

3

BAND | MODEL R/S

32942-14301

$11.89

4

COIL ASSY, IGNITION

33410-43D00

Unavailable

5

SCREW | MODEL N This part replaces 02112-36206.

02112-3620A

$2.06

5

SCREW (6X21) | MODEL P

09129-06003

Unavailable

5

SCREW | MODEL R/S This part replaces 02112-36203.

02112-3620A

$2.06

6

CAP, SPARK PLUG | MODEL N/P This part replaces 33510-41111.

33510-20A02

$24.39

7

CAP, SPARK PLUG | MODEL R/S This part replaces 33510-20A00.

33510-20A02

$24.39

8

SEAL,HIGH TENSION CORD (SIDE) | MODEL R/S

33542-38B00

$4.34

9

CLAMP | MODEL N/P

09407-09402

$2.45

10

CLAMP | MODEL R This part replaces 09407-14408.

09407-17402

$3.93

10

CLAMP (L:90) | MODEL S

09407-11402

$1.80

11

SWITCH ASSY, ENGINE STOP | MODEL N/P This part replaces 37820-27C00.

37820-14X50

$48.54

11

SWITCH ASSY, ENGINE STOP | MODEL R/S

37820-14X50

$48.54

12

SCREW

02112-33165

$1.49

13

CLAMP

09407-12402

$3.04
