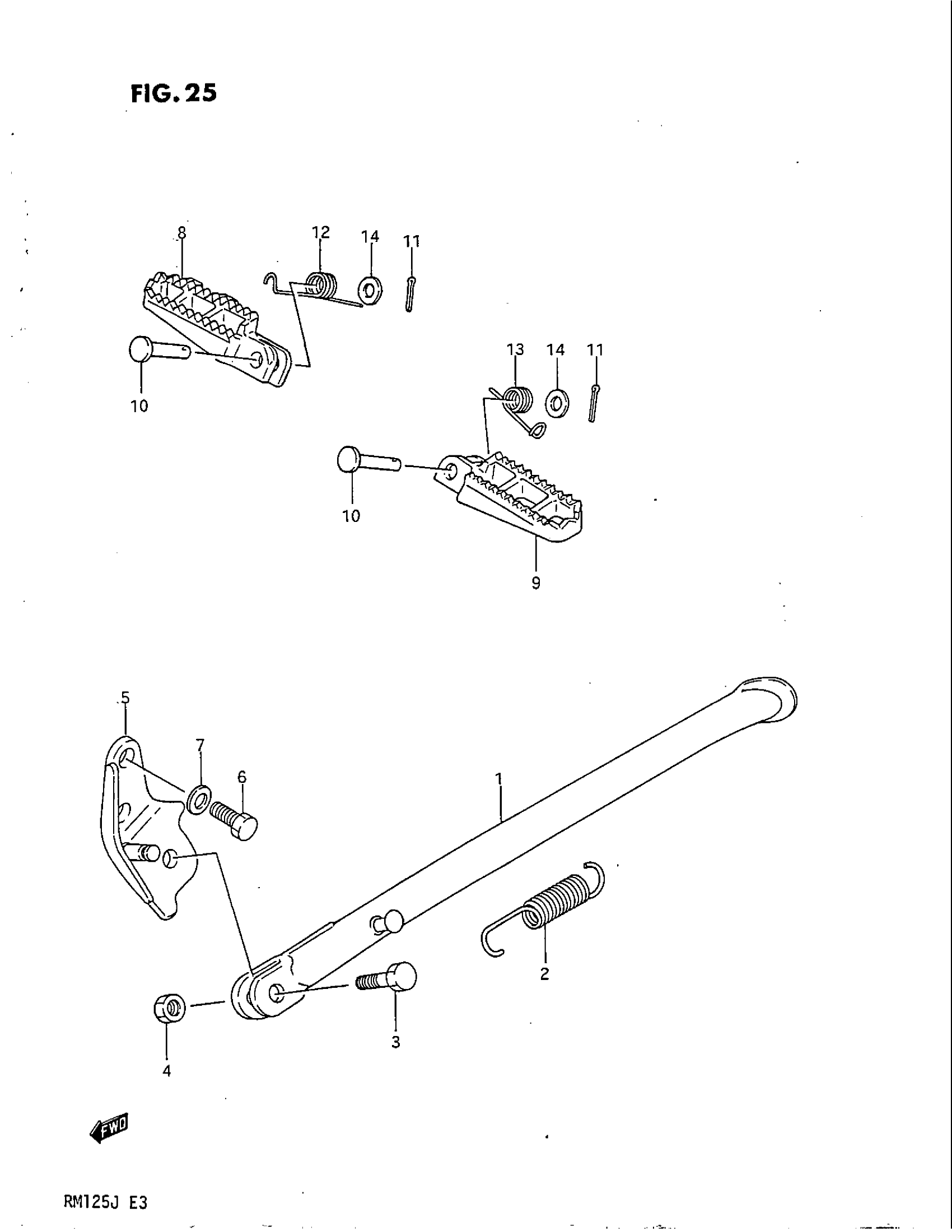

Suzuki RM125 (1988) STAND - FOOTREST Diagram

#

Description
Price

1

STAND SIDE This part replaces 42310-01B00-19F.

42310-14400-019

Unavailable

2

SPRING

09443-17007

$3.91

3

BOLT (10X30)

09100-10067

$2.61

4

NUT This part replaces 08310-22107.

08310-00107

$2.19

5

BRACKET PROP ST | MODEL G This part replaces 42330-14400-19F.

42330-14400-019

Unavailable

5

BRACKET (BLUE) | MODEL H/J

42330-14100-19F

Unavailable

6

BOLT

09100-10118

Unavailable

7

LOCK WASHER This part replaces 08321-21107.

08321-01107

$1.84

8

FOOTREST, FRONT RH (BLACK) | MODEL G/H This part replaces 43551-14600-19F.

43551-37202-019

Unavailable

8

FOOTREST, RH | MODEL J This part replaces 43550-01B30-19F.

43550-29E01

$111.52

9

FOOTREST, FRONT LH (BLACK) | MODEL G/H This part replaces 43561-40401-19F.

43561-40401-019

Unavailable

9

FOOTREST, LH | MODEL J This part replaces 43560-01B30-19F.

43560-29E01

$109.42

10

PIN | MODEL G This part replaces 09200-08035.

09200-08064

$6.13

10

PIN | MODEL H/J

09200-08064

$6.13

11

COTTER PIN | MODEL G This part replaces 04111-20208.

04111-2020A

$1.49

11

CITTER PIN | MODEL H/J This part replaces 04111-25208.

04111-2520A

$1.49

12

NO DESCRIPTION AVAILABLE This part replaces 09448-14040.

09448-14040-XC0

Unavailable

13

SPRING, LH

09448-14038

Unavailable

14

WASHER This part replaces 08322-21088.

08322-01087

$2.13
