1988 Suzuki RM125 Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 1988 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

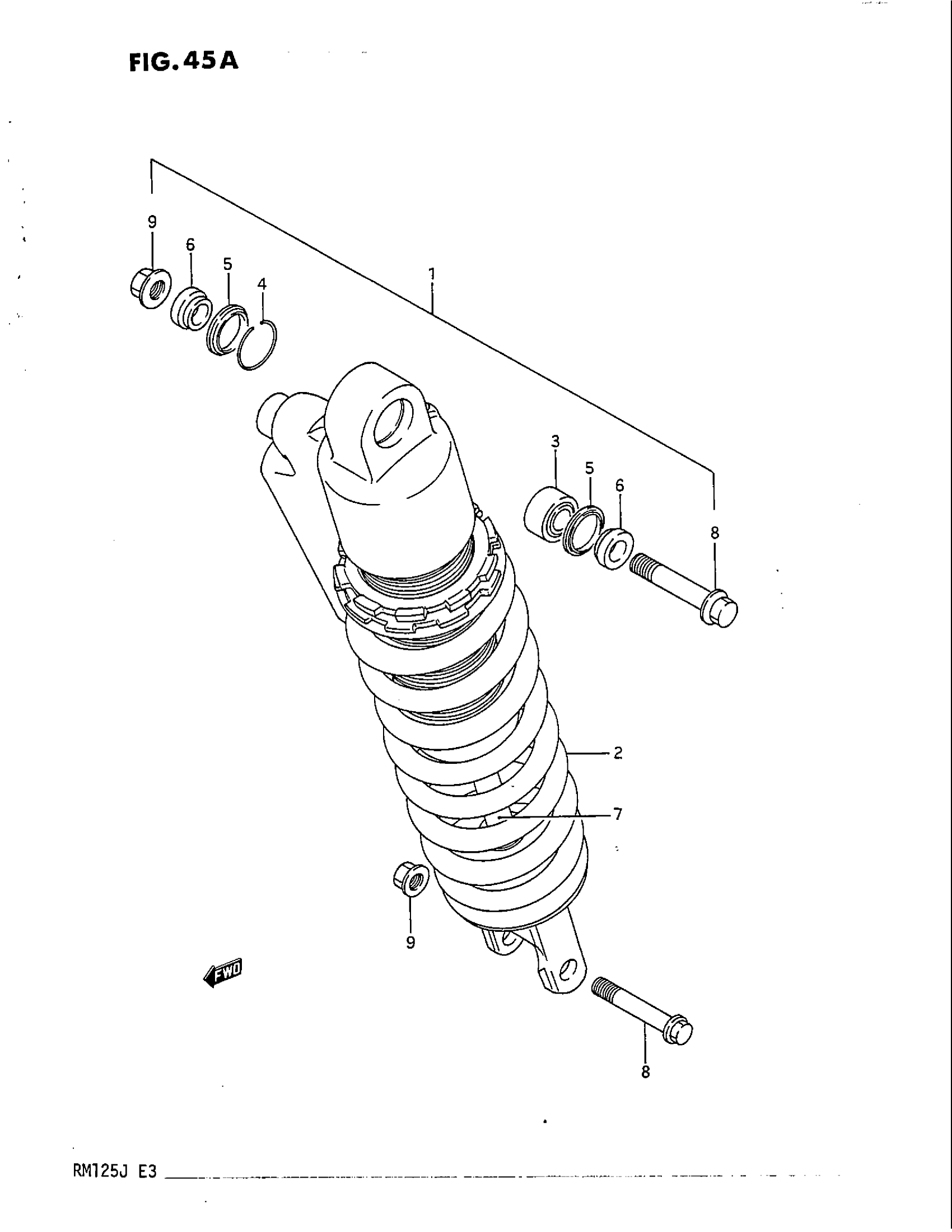

1988 Suzuki RM125 Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHOCK ABSORBER ASSY, REAR | YELLOW; Includes Item(s) 2 - 7

62100-01B50-163

1
Out of stock

2

SPRING

62211-01B20

1
Out of stock

3

BEARING

62175-00B00

1
Out of stock

4

RING, STOPPER This part replaces 62277-14200.

62657-34A01

1
Out of stock

5

DUST SEAL

62226-01B20

2
Out of stock

6

COLLAR

62684-01B20

2
Out of stock

7

ROD, PISTON This part replaces 62120-01B40.

62120-26C10

1
Out of stock

8

BOLT (10X58) This part replaces 62311-14501.

09103-10428

2
Out of stock

9

NUT

08319-31107

2
Out of stock
