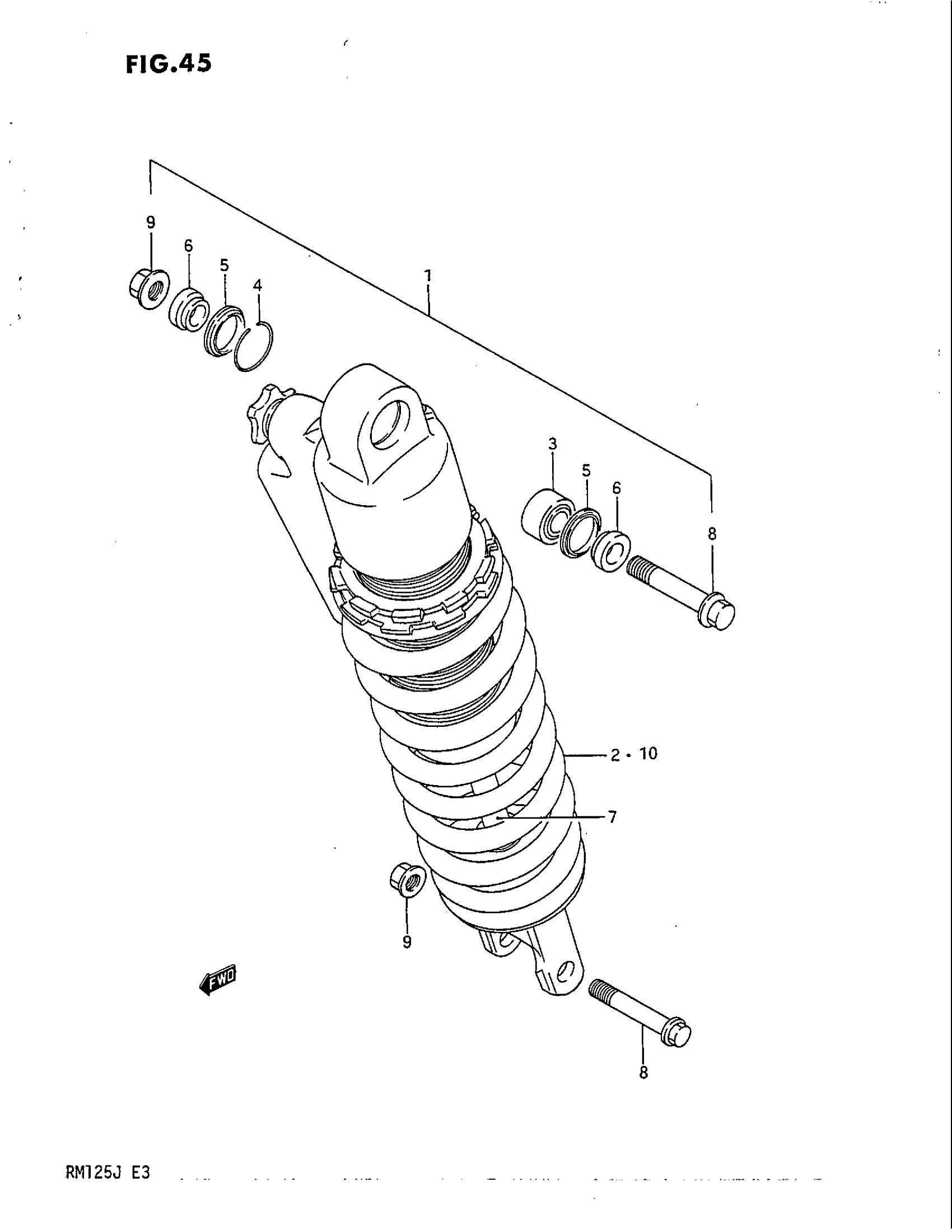

Suzuki RM125 (1988) SHOCK ABSORBER (MODEL H) Diagram

#

Description

Price

1

SHOCK ABSORBER ASSY, REAR | YELLOW; Includes Item(s) 2 - 7

62100-01B30-163

Unavailable

2

SPRING

62211-01B20

Unavailable

3

BEARING

62175-00B00

$61.15

4

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$1.99

5

DUST SEAL

62226-01B20

Unavailable

6

COLLAR

62684-01B20

Unavailable

7

ROD, PISTON

62120-01B20

Unavailable

8

BOLT (10X58) This part replaces 62311-14501.

09103-10428

$5.07

9

NUT

08319-31107

$2.73

10

SPRING (HARD) (YELLOW) | OPT MARK RED

62211-01B50

Unavailable

10

NO DESCRIPTION AVAILABLE | OPT MARK WHITE This part replaces 62211-01B70.

62211-01B80

Unavailable
