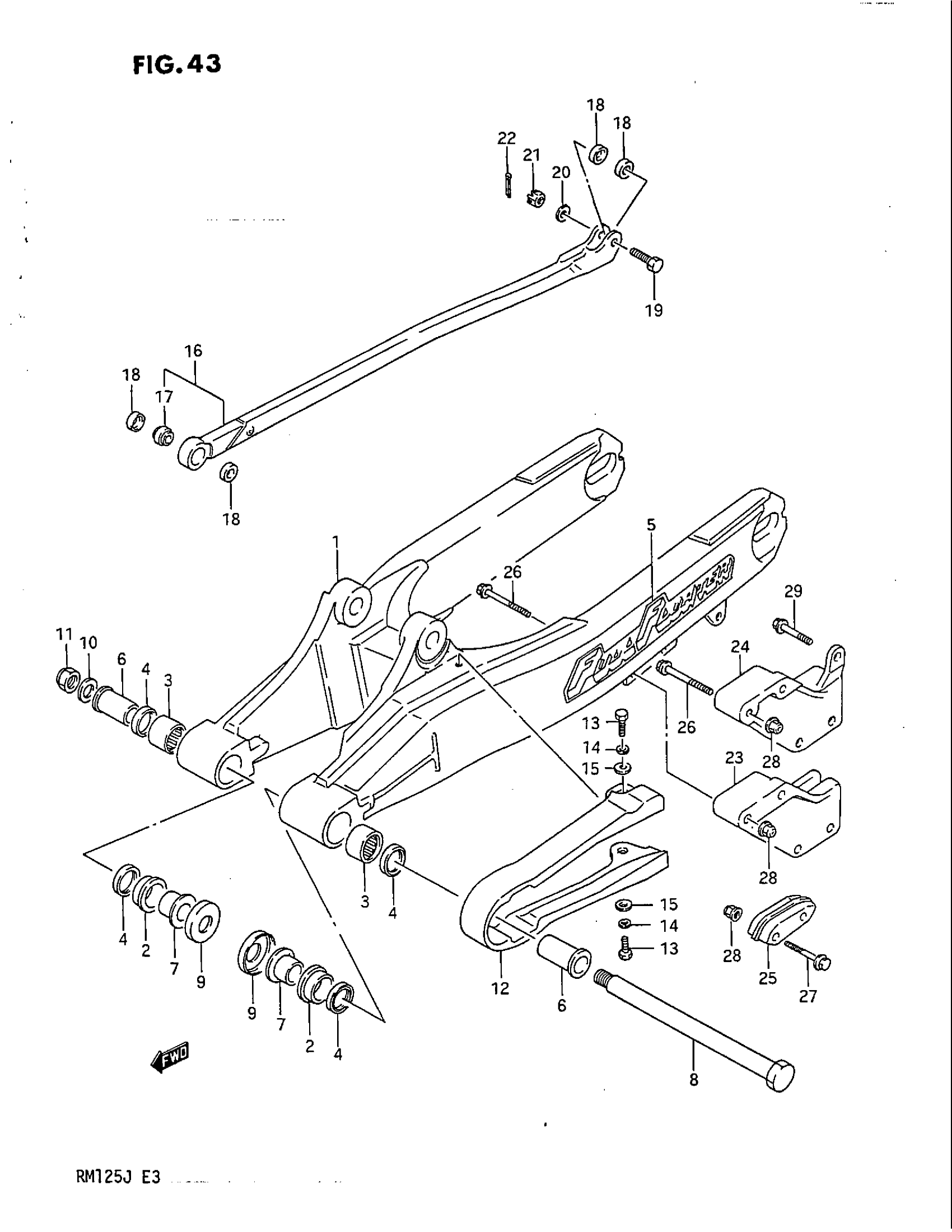

Suzuki RM125 (1988) REAR SWINGING ARM (MODEL G/H) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | MODEL G

61000-01B10

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL H; Includes Item(s) 2 - 5

61000-01B30

Unavailable

2

BUSH | MODEL G

61261-14101

$23.63

2

BUSH | MODEL H This part replaces 61261-40402.

61261-27C00

Unavailable

3

BEARING

09263-20041

$26.47

4

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

5

EMBLEM This part replaces 68381-19A10-97J.

68381-27C00-97J

Unavailable

6

SPACER

61251-14100

Unavailable

7

SPACER, INNER

61252-14100

Unavailable

8

SHAFT, PIVOT

61211-01B00

Unavailable

9

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.93

10

WASHER

09160-14027

$2.42

11

NUT This part replaces 09159-14013.

09159-14019

$11.61

12

BUFFER, CHAIN DEFENSE | MODEL G This part replaces 61273-01B00.

61273-26C00

Unavailable

12

BUFFER, CHAIN DEFENSE | MODEL H This part replaces 61273-01B01.

61273-26C00

Unavailable

13

BOLT This part replaces 01107-06127.

01500-06127

$1.97

14

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

15

WASHER

09160-06019

$1.49

16

TORQUE LINK ASSY, REAR | Includes Item(s) 17

64300-01B00

Unavailable

17

BEARING This part replaces 64352-40411.

64352-40401

Unavailable

18

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$7.03

19

BOLT, REAR

09101-08014

Unavailable

20

WASHER This part replaces 08322-11088.

08322-01087

$2.13

21

NUT This part replaces 08314-41088.

08314-4008B

$3.03

22

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

23

GUIDE,CHAIN | MODEL G This part replaces 61341-01B00.

61341-01B03

Unavailable

24

GUIDE,CHAIN | MODEL H This part replaces 61341-01B02.

61341-01B03

Unavailable

25

DEFENCE, CHAIN GUIDE | MODEL G This part replaces 61348-01B02.

61348-01B03

Unavailable

25

DEFENCE, CHAIN GUIDE | MODEL H

61348-01B03

Unavailable

26

BOLT This part replaces 01517-06558.

01550-06557

$3.30

27

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

28

NUT

08319-31067

$2.03

29

BOLT | MODEL H This part replaces 01517-06208.

01550-06207

$2.30
