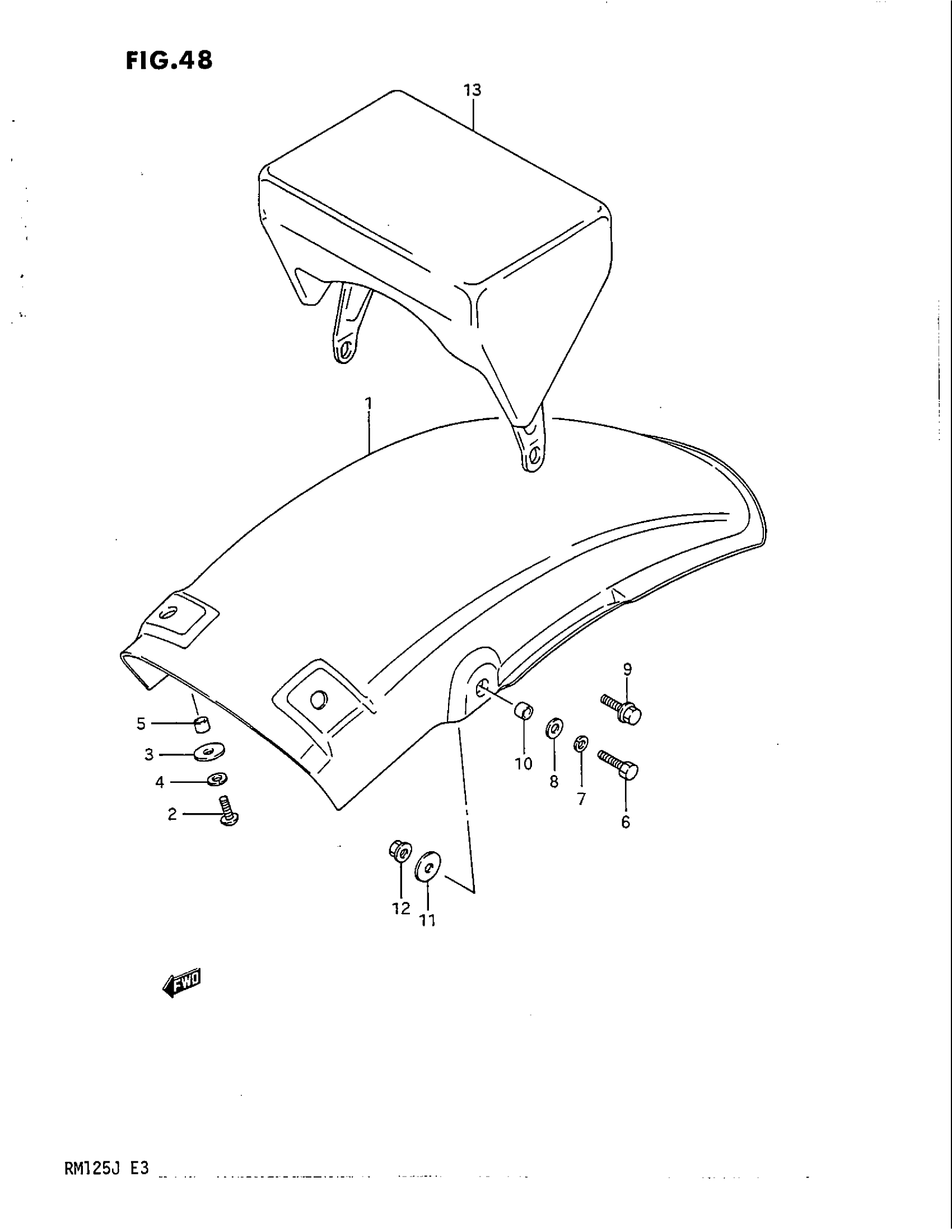

Suzuki RM125 (1988) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER REAR | MODEL G This part replaces 63113-14501-163.

63113-26C00-25Y

Unavailable

1

BODY, REAR FENDER REAR | MODEL H/J This part replaces 63113-14501-25Y.

63113-26C00-25Y

Unavailable

2

SCREW, FRONT

02142-06167

$1.49

3

WASHER (6.5X20X1.2) This part replaces 09160-06038.

09160-06077

$1.91

4

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

5

SPACER (6.5X9X5) This part replaces 09180-06073.

09180-06306

$2.03

6

BOLT | MODEL G/H This part replaces 01107-06207.

01500-06207

$2.28

7

LOCK WASHER | MODEL G/H This part replaces 08321-21067.

08321-01067

$2.13

8

WASHER | MODEL G/H This part replaces 08322-21067.

08322-01067

$2.13

9

BOLT | MODEL J This part replaces 01517-06207.

01550-06207

$2.30

10

SPACER (6.5X9X5) This part replaces 09180-06073.

09180-06306

$2.03

11

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

12

NUT | MODEL G/H This part replaces 09159-06017.

08319-31067

$2.03

12

NUT | MODEL J

08319-31067

$2.03

13

BAG ASSY, SEAT TAIL (BLUE) | MODEL H/J OPT

94900-38220-4UZ

Unavailable
