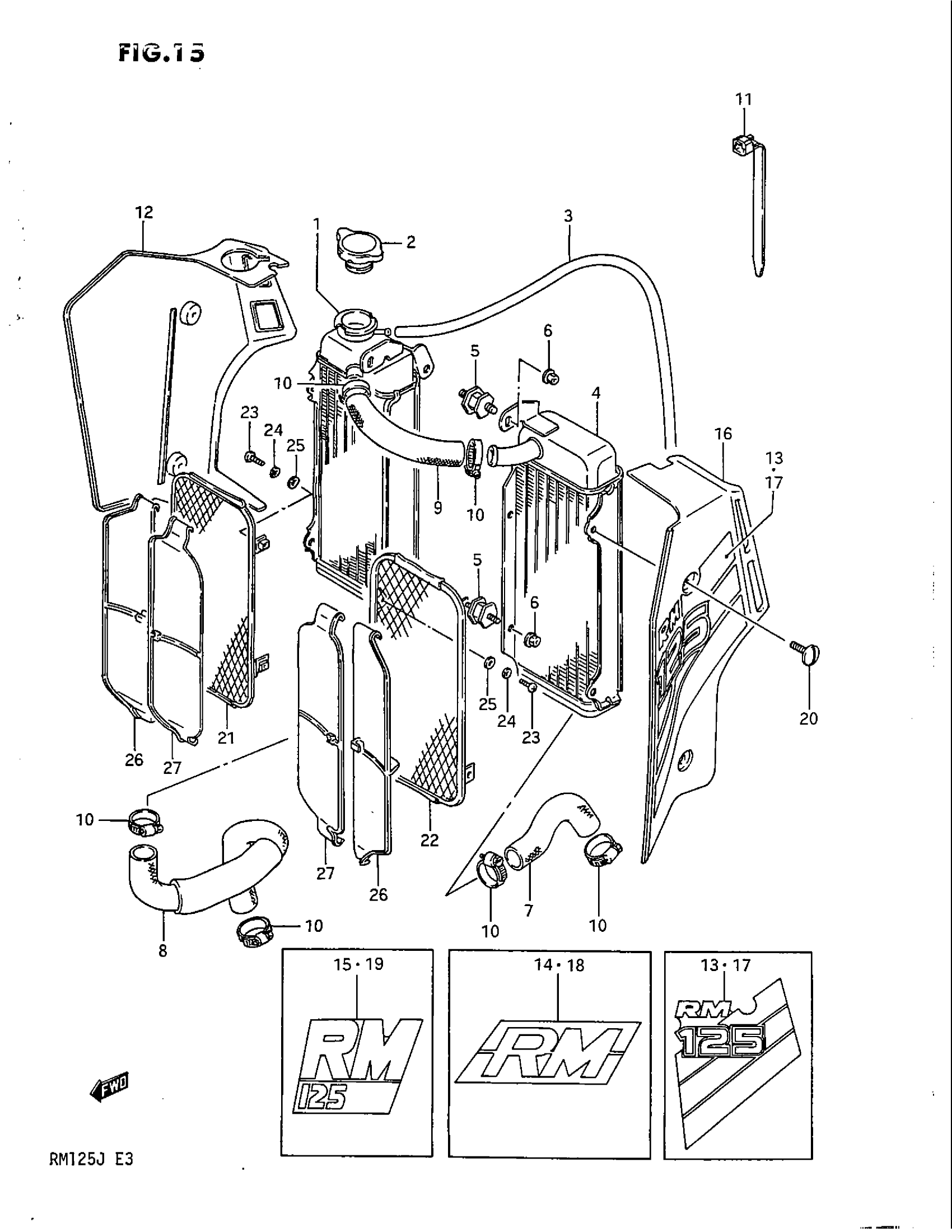

Suzuki RM125 (1988) RADIATOR Diagram

#

Description
Price

1

RADIATOR, RH

17710-01B00

Unavailable

2

CAP, RADIATOR This part replaces 17730-20930.

17730-08J00

$42.50

3

HOSE (5X9X2000) | L:760->650 This part replaces 09343-05347.

09352-50901-00B

$26.94

4

RADIATOR, LH

17720-01B00

Unavailable

5

BOLT,RADIATOR This part replaces 17788-14500.

17788-14501

$15.48

6

NUT This part replaces 08316-16064.

08316-1006B

$2.50

7

HOSE,RADIATOR O This part replaces 17851-01B02.

17852-19810

Unavailable

8

HOSE, OUTLET

17852-01B02

Unavailable

9

HOSE, JOINT

17853-14500

Unavailable

10

CLAMP This part replaces 09402-25502.

09402-28511

$6.88

11

CLAMP (L:185)

09407-18402

$2.19

12

COVER, RADIATOR RH | MODEL G This part replaces 17761-14500-163.

17761-14500-25Y

Unavailable

12

COVER, RADIATOR RH | MODEL H/J

17761-14500-25Y

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 68660-01B00-74H.

68660-01B02-74H

Unavailable

14

TAPE, RADIATOR COVER RH | MODEL H

68660-01B10-9BV

Unavailable

15

TAPE, RADIATOR COVER RH | MODEL J

68661-01B21-9UR

Unavailable

16

COVER, RADIATOR LH | MODEL G This part replaces 17762-14500-163.

17762-14500-25Y

Unavailable

16

COVER, RADIATOR LH | MODEL H/J

17762-14500-25Y

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 68670-01B00-74H.

68670-01B02-74H

Unavailable

18

TAPE, RADIATOR COVER LH | MODEL H

68670-01B10-9BV

Unavailable

19

TAPE, RADIATOR COVER LH | MODEL J

68671-01B21-9UR

Unavailable

20

SCREW

09125-06045

$11.07

21

BUMPER, RADIATOR RH

17810-14500

Unavailable

22

BUMPER, RADIATOR LH

17820-14500

Unavailable

23

SCREW This part replaces 02112-06104.

02112-0610B

$1.84

24

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

25

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

26

LOUVER, MUD GUARD RH

17831-14500

Unavailable

27

LOUVER, MUD GUARD LH

17832-14500

Unavailable
