1988 Suzuki RM125 Fuel Tank Diagram

← All diagrams

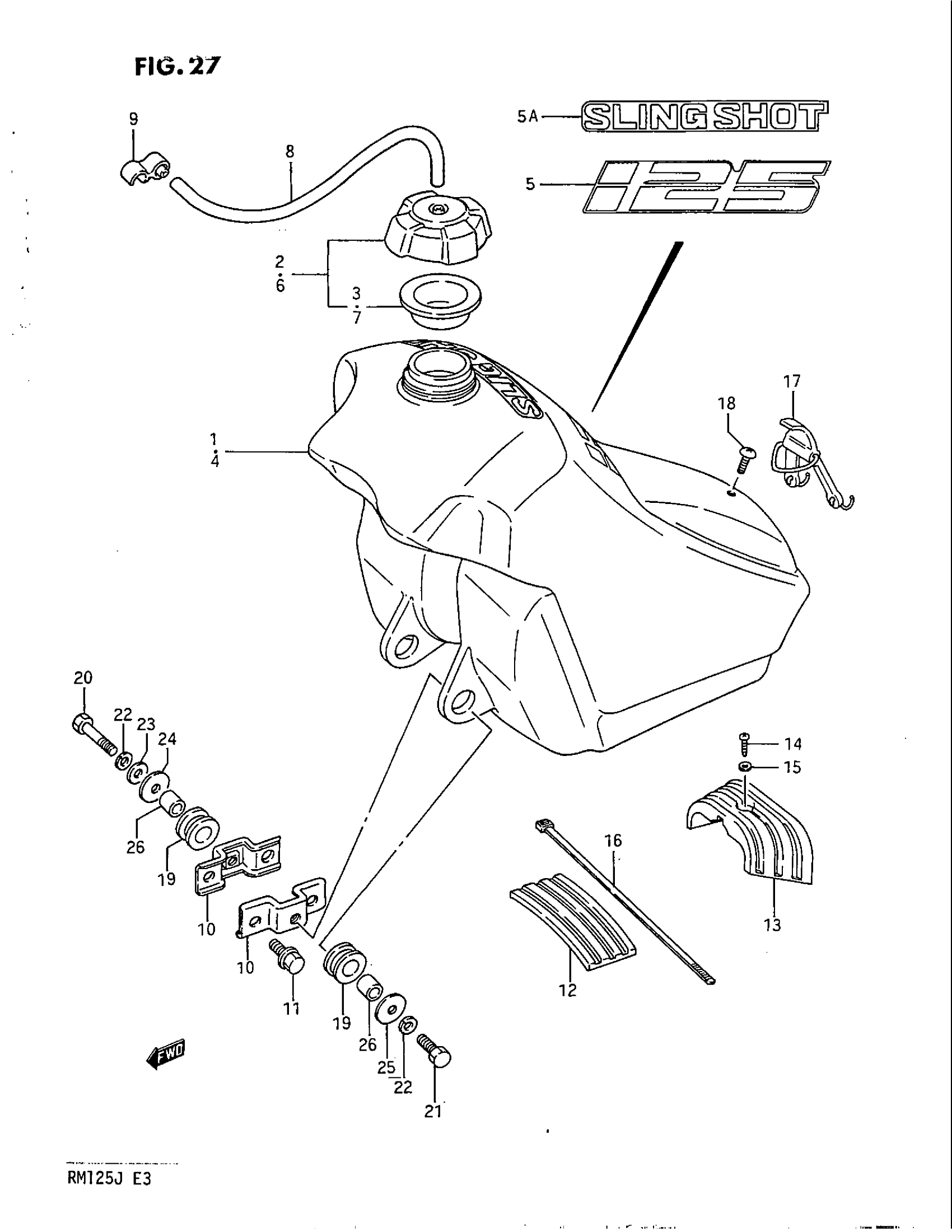

Find the part on the Fuel Tank diagram for your 1988 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki RM125 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL G; Includes Item(s) 2 - 3 This part replaces 44101-14840-163.

44101-14841-25Y

1
Out of stock

2

CAP SET,FUEL TA | MODEL G This part replaces 44200-14820.

44200-27871

1
Out of stock

3

GASKET | MODEL G This part replaces 44248-40400.

44248-05211

1
Out of stock

4

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 44102-14820-25Y.

44101-14841-25Y

1
Out of stock

4

NO DESCRIPTION AVAILABLE | MODEL J; Includes Item(s) 5 - 7 This part replaces 44102-14830-25Y.

44101-14841-25Y

1
Out of stock

5

TAPE, FUEL TANK | MODEL H

68111-01B00-9BV

1
Out of stock

5A

EMBLEM | MODEL J

68111-26C00-9BS

1
Out of stock

6

CAP SET,FUEL TA | MODEL H This part replaces 44200-14820.

44200-27871

1
Out of stock

7

GASKET | MODEL H This part replaces 44248-40400.

44248-05211

1
Out of stock

8

HOSE,5X10X600 | MODEL G/H This part replaces 09343-05129.

44421-13ER0

1
Out of stock

8

HOSE,5X10X600 | MODEL J This part replaces 09352-50823-280.

44421-13ER0

1
Out of stock

9

CLAMP

44486-40200

1
Out of stock

10

BRACKET, FUEL TANK

41310-01B01

2
Out of stock

11

BOLT M8X16 This part replaces 01517-08167.

01550-08167

4
Out of stock

12

CUSHION, UPPER FRONT

44541-14500

1
Out of stock

13

CUSHION, UPPER REAR

44542-01B00

1
Out of stock

14

SCREW This part replaces 03111-04165.

03112-04163

1
Out of stock

15

WASHER This part replaces 08322-21045.

08322-0104A

1
Out of stock

16

CLAMP This part replaces 09407-20401.

09407-25402

1
Out of stock

17

BAND, REAR

44560-02B00

1
Out of stock

18

SCREW | MODEL G/H This part replaces 09125-06009.

09125-06073

1
Out of stock

18

SCREW | MODEL J This part replaces 02142-06164.

02142-0616A

1
Out of stock

19

CUSHION

09320-12030

2
Out of stock

20

NO DESCRIPTION AVAILABLE This part replaces 09100-08002.

09100-08290

1
Out of stock

21

BOLT This part replaces 01107-08307.

01500-08307

1
Out of stock

22

2

$2.28

In stock

23

WASHER This part replaces 09160-08035.

09160-08130

1
Out of stock

24

WASHER, RH INNER

09160-08032

1
Out of stock

25

WASHER (8.5X26X1.6) This part replaces 09160-08005.

09160-08134

1
Out of stock

26

SPACER

09180-08033

2
Out of stock
