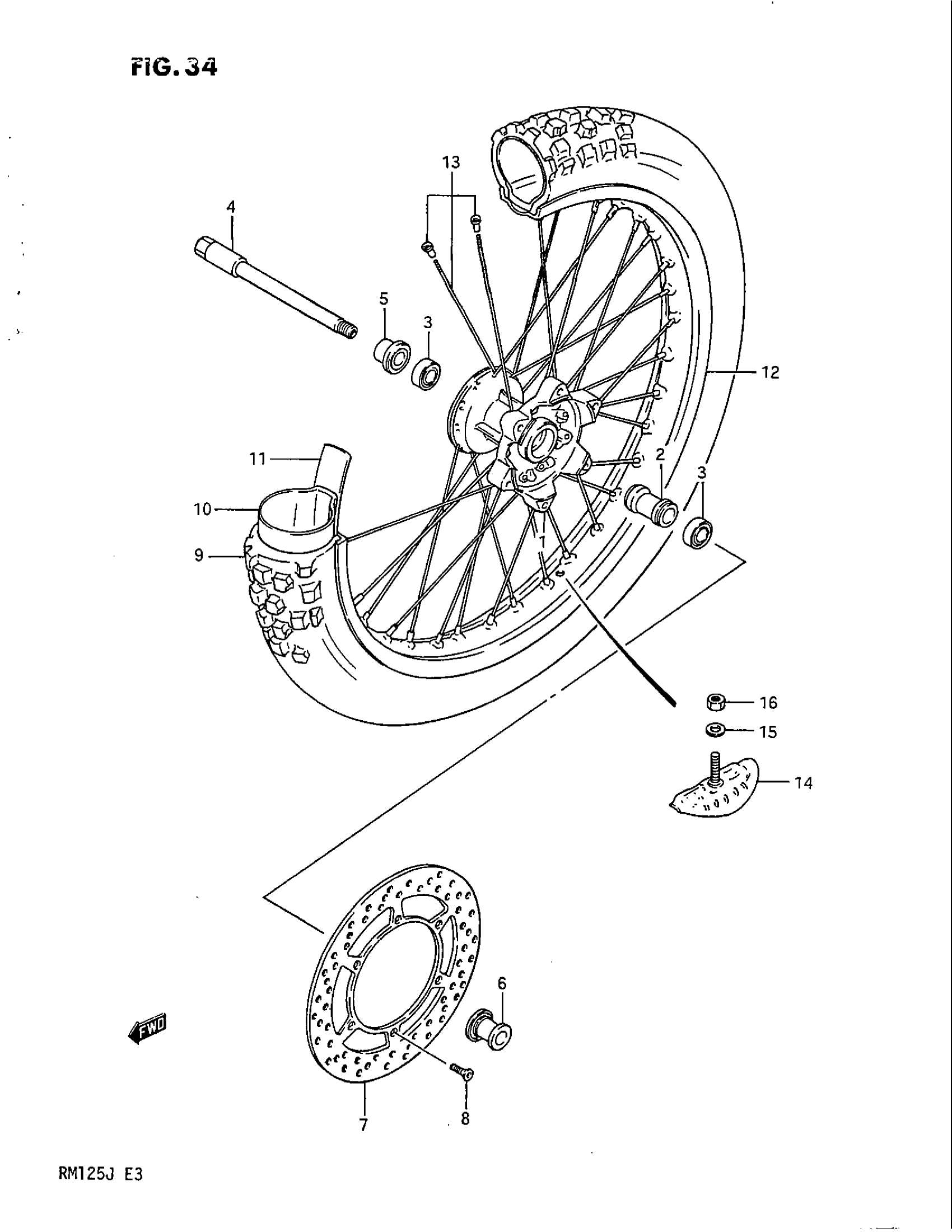

Suzuki RM125 (1988) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54111-14501

Unavailable

2

SPACER, FRONT HUB | MODEL G

54730-14100

Unavailable

2

SPACER, FRONT HUB | MODEL H/J

54730-01B00

$53.92

3

BEARING | MODEL G

08123-62027

$18.57

3

BEARING | MODEL H/J

08123-60037

$21.77

4

AXLE, FRONT | MODEL G This part replaces 54711-14510.

54711-14500

Unavailable

4

AXLE, FRONT | MODEL H/J This part replaces 54711-01B00.

54711-01B02

Unavailable

5

SPACER, AXLE RH | MODEL G

54740-14501

Unavailable

5

SPACER, AXLE, RH | MODEL H/J This part replaces 54740-01B00.

54740-01B01

Unavailable

6

SPACER, AXLE LH | MODEL G

54750-14501

Unavailable

6

SPACER, AXLE, LH | MODEL H/J This part replaces 54750-01B00.

54750-05D00

Unavailable

7

DISK, FRONT BRAKE | MODEL G/H This part replaces 59221-14500.

59221-14510

Unavailable

7

DISK, FRONT BRAKE | MODEL J

59221-14510

Unavailable

8

SCREW

02122-06167

$1.49

9

NO DESCRIPTION AVAILABLE | MODEL G,DUNLOP This part replaces 55100-01B00.

55110-36E00

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL H/J,DUNLOP This part replaces 55100-01B10.

55110-36E00

Unavailable

10

TIRE, FRONT This part replaces 55200-14540.

55200-16511

$36.73

11

PROTECTOR

55261-14540

$3.83

12

RIM, FRONT WHEEL (1.60X21) This part replaces 55311-01B00.

55311-28C01

Unavailable

13

SPOKE SET, FRONT WHEEL This part replaces 55320-01B00.

55320-28E00

$137.05

14

STOPPER, BEAD

65270-14300

$52.73

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

NUT This part replaces 08310-22088.

08310-00087

$2.13
