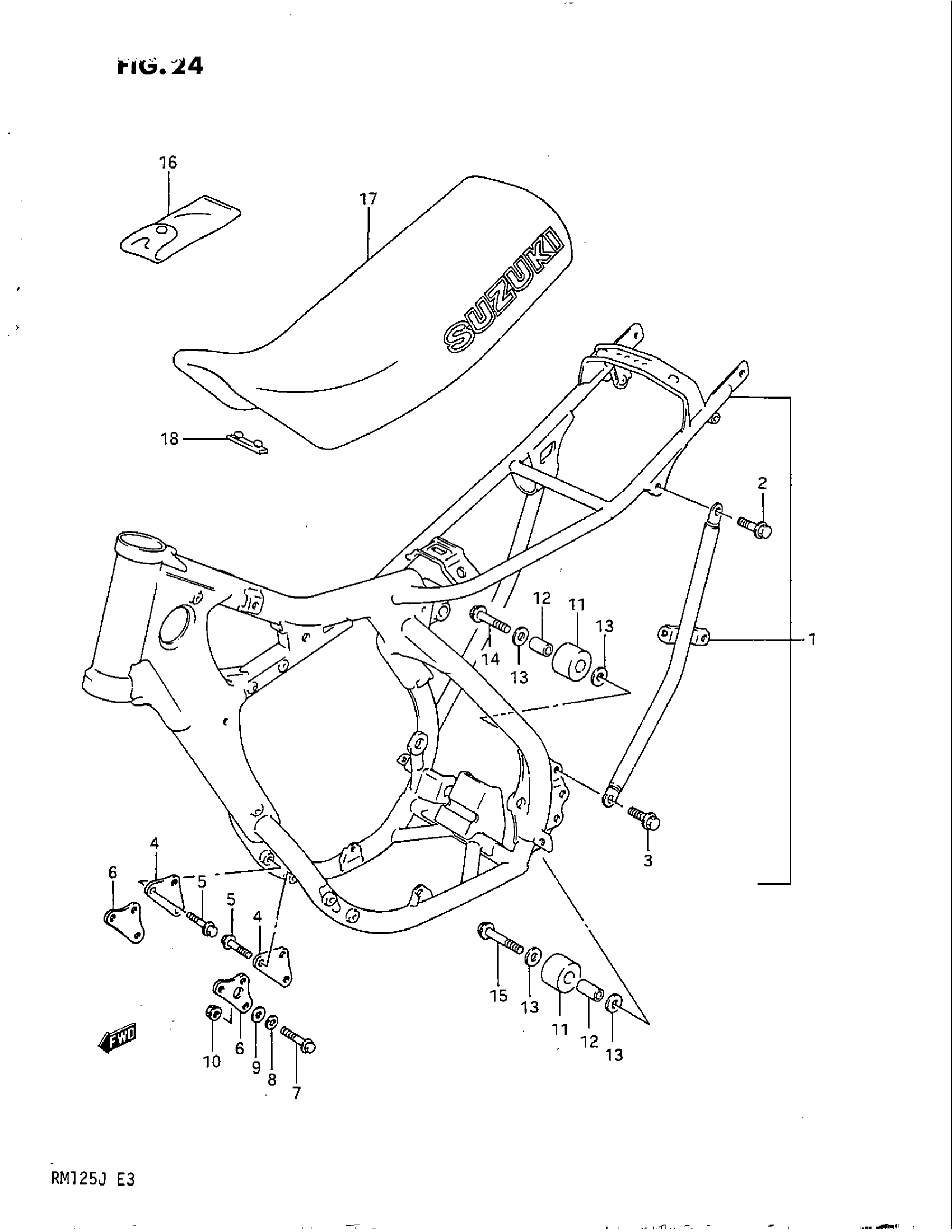

Suzuki RM125 (1988) FRAME - SEAT (MODEL H/J) Diagram

#

Description
Price

1

FRAME SET (BLUE) | MODEL H

41101-01890-19F

Unavailable

1

FRAME SET (BLUE) | MODEL J; Includes Item(s) 2 - 3

41102-01810-19F

Unavailable

2

BOLT (8X20) This part replaces 09103-08055.

09103-08505

$3.58

3

BOLT (8X16) This part replaces 09100-08267.

09100-08284

$3.87

4

PLATE, ENGINE MOUNTING | MODEL H This part replaces 41991-01B00.

41991-01B31

Unavailable

5

BOLT | MODEL H

09103-08071

$5.65

6

PLATE, ENGINE MOUNTING | MODEL J

41991-01B31

Unavailable

7

.BOLT (8X55) | MODEL J This part replaces 09103-08027.

09103-08339

$3.49

8

.LOCK WASHER | MODEL J This part replaces 08321-21088.

08321-01087

$2.13

9

WASHER | MODEL J This part replaces 08322-11088.

08322-01087

$2.13

10

NUT | MODEL J This part replaces 08319-21088.

08319-2108A

$2.12

11

ROLLER, CHAIN CONTROL

43911-01B10

$16.63

12

SPACER (8.5X14X28) This part replaces 09180-08136.

09180-08206

$5.75

13

WASHER

08211-08221

$2.45

14

BOLT, UPPER

09103-08043

$3.18

15

.BOLT (8X55) This part replaces 09103-08027.

09103-08339

$3.49

16

TOOL ASSY | MODEL H This part replaces 09800-00319.

09800-21059

Unavailable

17

SEAT ASSY (BLUE) | MODEL H This part replaces 45100-01B10-4UZ.

45100-01B20-4UZ

Unavailable

17

SEAT ASSY (BLUE) | MODEL J; Includes Item(s) 18

45100-01B20-4UZ

Unavailable

18

CUSHION

09321-08009

$3.05
