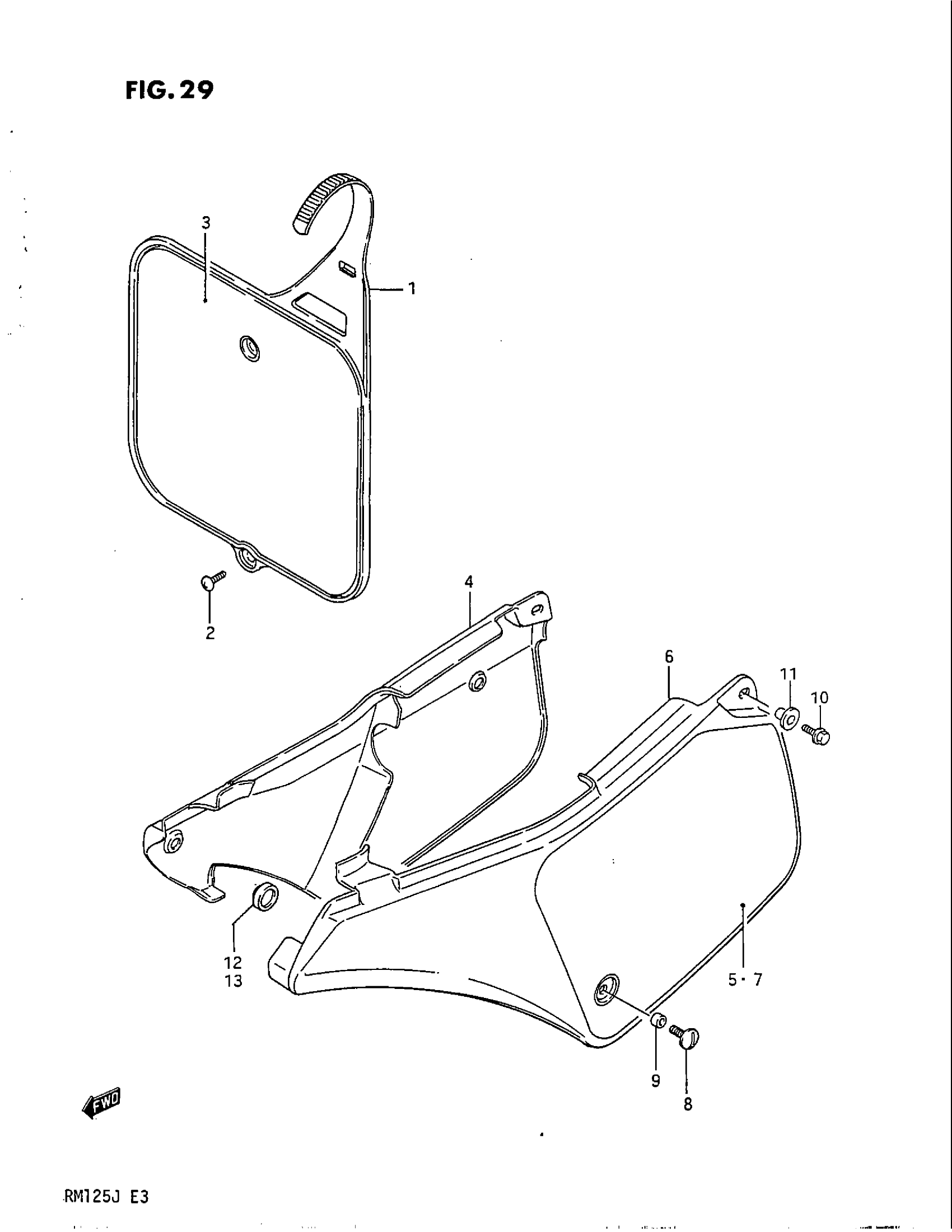

Suzuki RM125 (1988) FRAME COVER Diagram

#

Description
Price

1

PLATE, FRONT NUMBER (YELLOW) | MODEL G This part replaces 94911-00B00-163.

94911-00B10-25Y

$64.72

1

PLATE, FRONT NUMBER (YELLOW) | MODEL H/J This part replaces 94911-00B00-25Y.

94911-00B10-25Y

$64.72

2

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

3

TAPE SET, FRONT NUMBER (BLACK

68255-14500-291

Unavailable

4

COVER, FRAME RH (YELLOW) | MODEL G This part replaces 47111-01B00-163.

47111-01B01-25Y

Unavailable

4

COVER, FRAME RH (YELLOW) | MODEL H/J This part replaces 47111-01B00-25Y.

47111-01B01-25Y

Unavailable

5

EMBLEM, RH (BLACK)

68132-01B00-291

Unavailable

6

COVER, FRAME LH (YELLOW) | MODEL G This part replaces 47211-01B00-163.

47211-01B00-25Y

Unavailable

6

COVER, FRAME LH (YELLOW) | MODEL H/J

47211-01B00-25Y

Unavailable

7

EMBLEM, LH (BLACK)

68142-01B00-291

Unavailable

8

SCREW, FRONT

09125-06045

$11.07

9

SPACER (6.1X8X3.5) This part replaces 09180-06098.

09180-06245

$2.11

10

BOLT

01517-06166

Unavailable

11

SPACER This part replaces 09169-06050.

09169-06065

$4.32

12

CUSHION This part replaces 09321-10013.

09321-10018

$5.45

13

CUSHION, RH FRONT This part replaces 09321-10020.

09321-10024

$5.29
