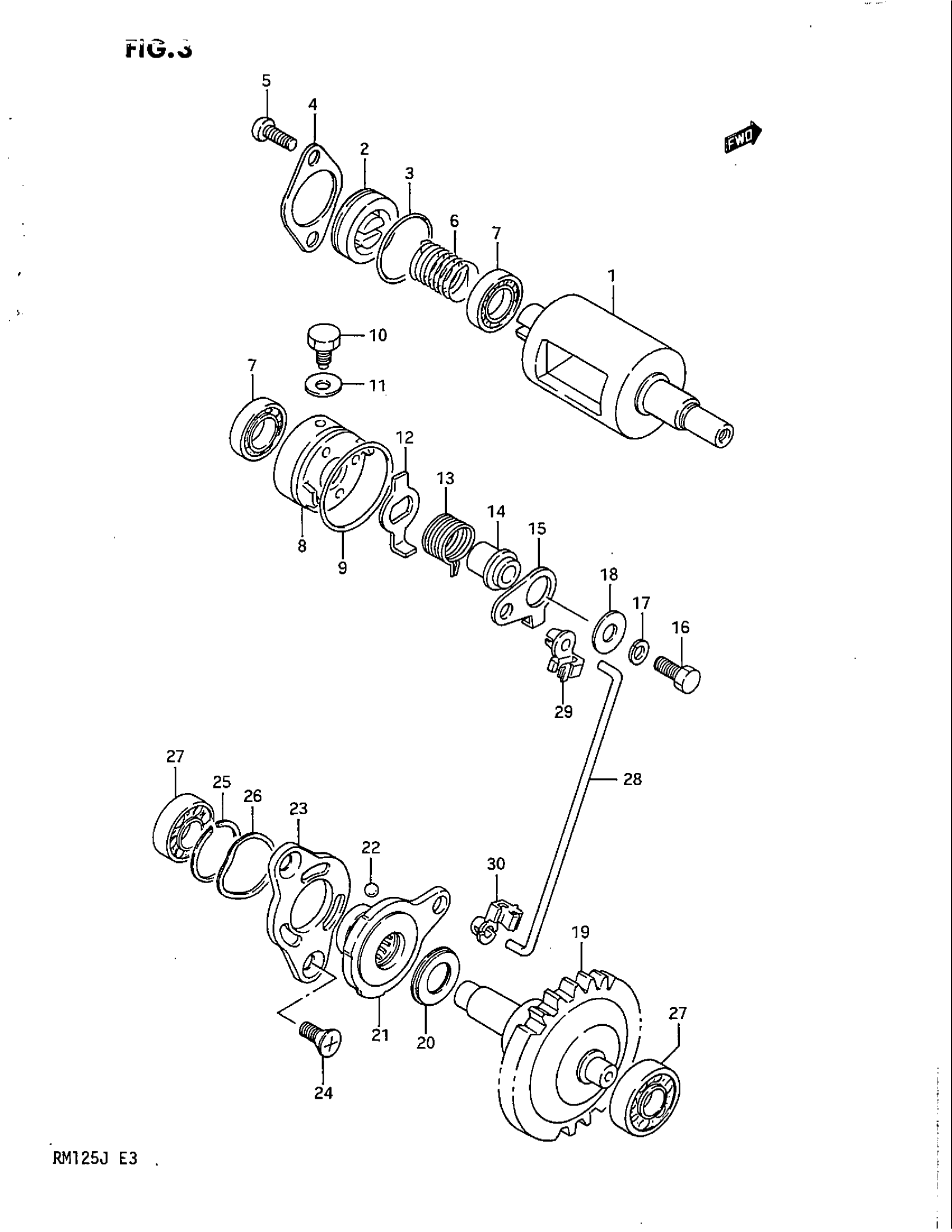

Suzuki RM125 (1988) EXHAUST VALVE (MODEL G) Diagram

#

Description
Price

1

VALVE, EXHAUST

11256-01B00

Unavailable

2

CAP, EXHAUST VALVE This part replaces 11258-01B00.

11258-27C01

Unavailable

3

O RING(D:1.9,ID This part replaces 09280-23002.

09280-23003

$1.80

4

RETAINER, EXHAUST VALVE

11265-01B00

Unavailable

5

SCREW This part replaces 02112-05128.

02112-05127

$1.97

6

SPRING, EXHAUST VALVE

09444-15005

Unavailable

7

BEARING

08110-68010

$33.24

8

HOLDER, EXHAUST VALVE

11263-01B00

Unavailable

9

O RING

09280-28005

$2.43

10

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

11

GASKET

09168-06004

$1.49

12

LEVER, EXHAUST VALVE NO.2

11267-01B00

Unavailable

13

SPRING

09444-15004

Unavailable

14

SPACER This part replaces 11268-01B00.

11268-01B01

$8.65

15

LEVER, EXHAUST VALVE NO.1

11266-01B00

Unavailable

16

BOLT This part replaces 01104-05126.

01500-0512B

$2.10

17

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

18

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

19

GOVERNOR ASSY, EXHAUST VALVE This part replaces 12670-01B00.

12670-27C00

Unavailable

20

BEARING

09263-10002

$10.19

21

ACTUATOR, EXHAUST VALVE

12680-01810

Unavailable

22

BALL

06111-06003

$1.49

23

STATOR, ACTUATOR This part replaces 12682-01B01.

12682-01B02

$36.17

24

SCREW, HEADLAMP (5X12) This part replaces 02122-05128.

09126-05003

$2.06

25

CIRCLIP

09380-19003

$2.15

26

LOCK WASHER

09164-19001

$4.69

27

BEARING

09262-08005

$12.67

28

ROD, EXHAUST VALVE

12685-01B00

Unavailable

29

BUSH, NO.1

12686-01B00

$1.65

30

BUSH, NO.2

12687-01B00

$1.65
