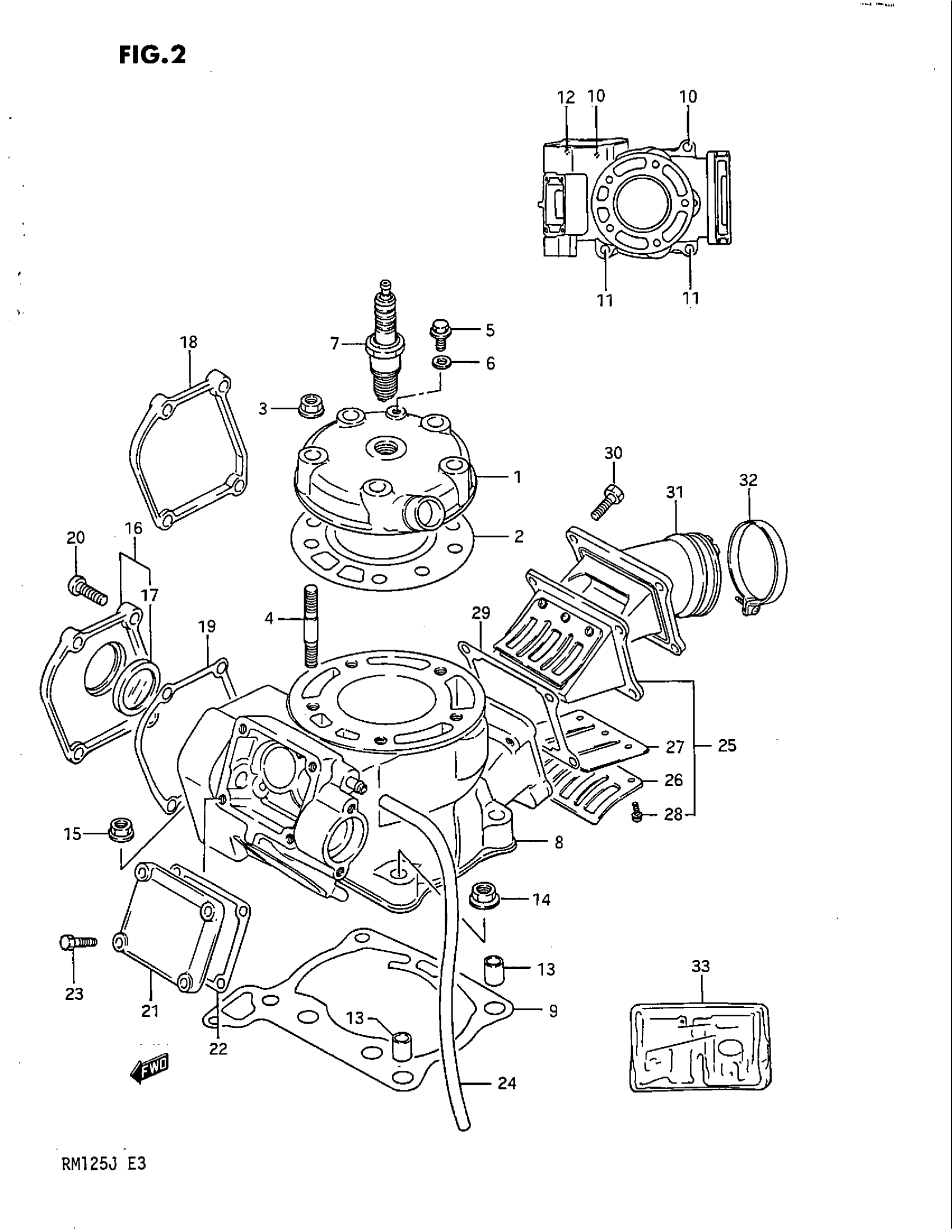

Suzuki RM125 (1988) CYLINDER (MODEL H/J) Diagram

#

Description
Price

1

HEAD, CYLINDER

11111-01B30

Unavailable

2

GASKET, CYLINDER HEAD

11141-01B32

Unavailable

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

4

STUD BOLT (8X35)

09108-08198

$3.23

5

BOLT, AIR DUCT

09360-06007

$2.30

6

GASKET

09168-06004

$1.49

7

SPARK PLUG BR9E This part replaces 09482-00209.

09482-00349

$7.22

7

SPARK PLUG (ND,W27ES-ZU) | MODEL H This part replaces 09482-00271-111.

09482-00396-111

Unavailable

7

SPARK PLUG (ND,W27ES-ZU) | MODEL J

09482-00396-111

Unavailable

8

CYLINDER | MODEL H

11200-01810

Unavailable

8

CYLINDER | MODEL J

11200-01821

Unavailable

9

GASKET,CYLINDER This part replaces 11241-01B20.

11241-01B20-H17

Unavailable

10

STUD BOLT (L:30) This part replaces 09108-08211.

09108-08142

$3.18

11

STUD BOLT (8X40)

09108-08212

Unavailable

12

STUD BOLT (6X25)

09108-06097

Unavailable

13

PIN

04211-11169

$1.78

14

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

15

NUT This part replaces 09159-06017.

08319-31067

$2.03

16

COVER, CYLINDER NO.1 | MODEL H; Includes Item(s) 17 This part replaces 11230-01B30.

11231-01B31

Unavailable

17

LENS | MODEL H

11232-01B00

Unavailable

18

COVER, CYLINDER NO.1 | MODEL J

11231-01B31

Unavailable

19

NO DESCRIPTION AVAILABLE This part replaces 11233-01B30.

11233-01B30-H17

Unavailable

20

SCREW This part replaces 02112-06208.

02112-06207

$1.78

21

COVER, CYLINDER NO.2 This part replaces 11248-01B30.

11248-12C01

$33.93

22

GASKET, CYLINDER COVER NO.2 This part replaces 11238-01B30.

11238-01B30-H17

$4.03

23

BOLT This part replaces 01107-05167.

01500-0516B

$2.15

24

HOSE 4X7X600 | L:600->250 This part replaces 09343-04104.

09352-40706-600

$5.11

25

VALVE ASSY, REED | Includes Item(s) 26 - 28

13150-01B20

Unavailable

26

STOPPER

13152-01B20

Unavailable

27

VALVE,REED This part replaces 13153-01B20.

13153-01B21

Unavailable

28

SCREW This part replaces 13154-14500.

02112-0308A

$1.80

29

GASKET,REED VLV This part replaces 13156-01B20.

13156-03D10

Unavailable

30

BOLT This part replaces 01107-06207.

01500-06207

$2.28

31

PIPE, INTAKE | MODEL H This part replaces 13111-01B20.

13111-01B21

Unavailable

31

PIPE, INTAKE | MODEL J

13111-01B21

Unavailable

32

CLAMP | MODEL H This part replaces 09402-54306.

09402-54303

$3.91

32

CLAMP | MODEL J

09402-52306

$4.91

33

GASKET SET(NA) | OPT This part replaces 11400-01820.

11400-01822

Unavailable
