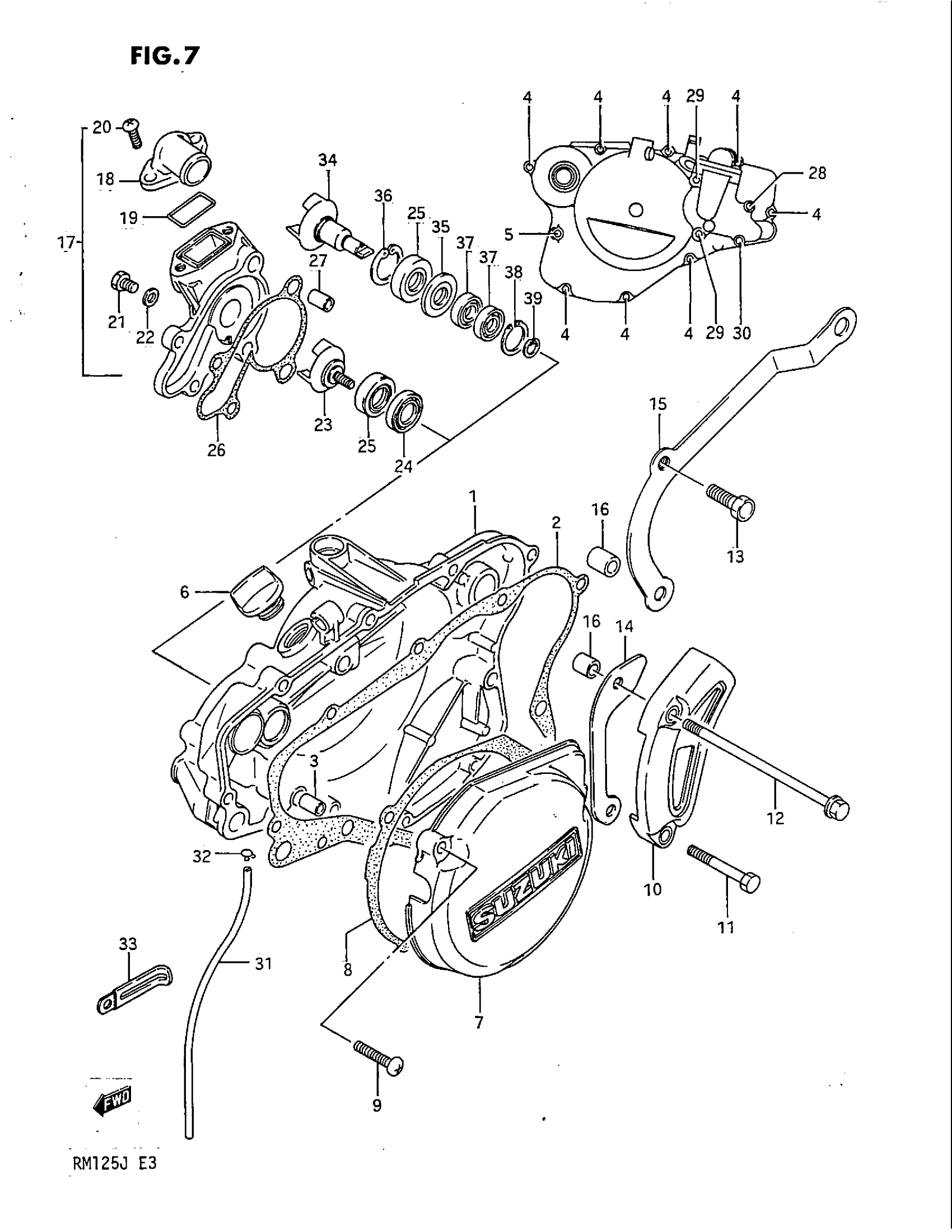

Suzuki RM125 (1988) CRANKCASE COVER- WATER PUMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL G/H This part replaces 11340-01811.

11340-01812

Unavailable

1

COVER, CLUTCH | MODEL J

11341-01B11

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-01B01.

11482-01B01-H17

Unavailable

3

PIN

04211-09129

$1.65

4

SCREW This part replaces 02112-06258.

02112-06257

$1.78

5

SCREW (6X35)

02112-06357

$1.78

6

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

7

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 11351-01B00.

11351-14511

Unavailable

7

COVER, MAGNETO | MODEL H/J

11351-01B11

Unavailable

8

GASKET,MAG CVR | MODEL G This part replaces 11483-01B00.

11483-01B01

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 11483-01B10.

11483-01B10-H17

Unavailable

9

SCREW This part replaces 02112-06258.

02112-06257

$1.78

10

COVER,SPROCKET This part replaces 11360-01B00.

11360-01BV0

Unavailable

11

BOLT This part replaces 01107-06408.

01500-0640B

$2.62

12

BOLT (6X105) | MODEL G

09103-06067

$2.48

13

BOLT | MODEL H/J This part replaces 01107-06207.

01500-06207

$2.28

14

PLATE, CHAIN GUIDE | MODEL G

27641-14501

Unavailable

15

PLATE, CHAIN GUIDE | MODEL H/MODEL J OPT NT:11/12

27640-01B10

Unavailable

15

PLATE, CHAIN GUIDE | MODEL J FOR NT:13

27640-01B40

Unavailable

16

SPACER | MODEL GMODEL H/J

09180-07004

$2.30

17

NO DESCRIPTION AVAILABLE | Includes Item(s) 18 - 22 This part replaces 17410-01B01.

17410-01B02

Unavailable

18

CONNECTOR This part replaces 17412-01B00.

17412-28E00

Unavailable

19

O RING

17414-14300

$2.99

20

SCREW

02112-06167

$1.49

21

BOLT, DRAIN This part replaces 17415-00B00.

17415-43D00

$4.35

22

GASKET This part replaces 17413-00B00.

17413-28C10

$2.14

23

IMPELLER, WATER PUMP | MODEL G/H This part replaces 17491-01B03.

17491-43D01

$22.56

24

OIL SEAL, INNER (12X24X5X7) | MODEL G/H

09282-12007

Unavailable

25

OIL SEAL, OUTER (12X24X6.4)

09289-12004

Unavailable

26

GASKET, WATER PUMP CASE This part replaces 17431-01B01.

17431-01B02-H17

$6.23

27

PIN

04211-09129

$1.65

28

SCREW This part replaces 02112-06208.

02112-06207

$1.78

29

SCREW This part replaces 02112-06308.

02112-06307

$1.97

30

SCREW | MODEL G/H This part replaces 02112-06758.

02112-06757

$3.08

30

SCREW | MODEL J This part replaces 02112-06858.

02112-06857

$2.62

31

HOSE 4X7X600 | MODEL G/H L:600->250 This part replaces 09343-04104.

09352-40706-600

$5.11

32

CLIP | MODEL G/H

09401-08401

$1.54

33

CLAMP (L:60) | MODEL G/H This part replaces 09404-06422.

09404-06429

$1.83

34

IMPELLER,WATER | MODEL J This part replaces 17491-01B10.

17491-01B12

Unavailable

35

OIL SEAL, INNER (12X24X3.6) | MODEL J

09282-12006

Unavailable

36

CIRCLIP | MODEL J This part replaces 08331-41246.

08331-41249

$2.26

37

BEARING (8X19X6) | MODEL J

08113-06980

$12.67

38

CIRCLIP | MODEL J

09381-19003

$2.11

39

CIRCLIP | MODEL J This part replaces 08331-31088.

08331-31089

$1.78
