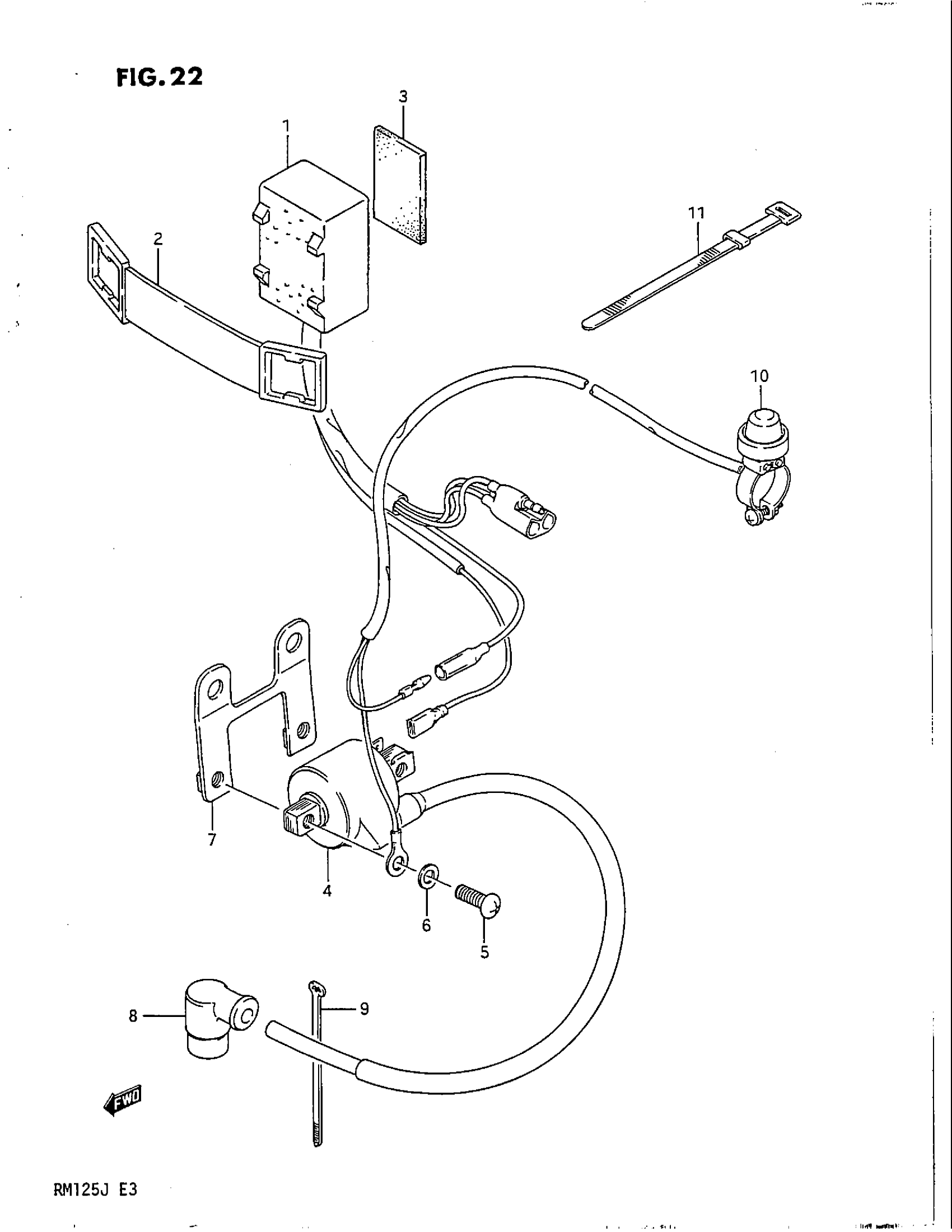

Find the part on the CDI Unit - Ignition Coil diagram for your 1988 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki RM125 CDI Unit - Ignition Coil Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSY | MODEL G

32900-01B20

1
Out of stock

1

CDI UNIT ASSY | MODEL H/J

32900-01B30

1
Out of stock

2

BAND, BATTERY This part replaces 32942-01B00.

09462-00087

1
Out of stock

3

PROTECTOR | CUT AS REQUIRED PROFILE(30X50)

33651-37000

1
Out of stock

4

COIL ASSY, IGNITION This part replaces 33410-01B20.

33410-12C00

1
Out of stock

5

2

$1.55

In stock

6

2

$1.97

In stock

7

BRACKET, IGNITION COIL

33416-01B10

1
Out of stock

8

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

1
Out of stock

9

BELT

09407-09402

1
Out of stock

10

SWITCH ASSY, ENGINE STOP This part replaces 37820-00B00.

37820-14X50

1
Out of stock

11

BAND

09407-12402

1
Out of stock
