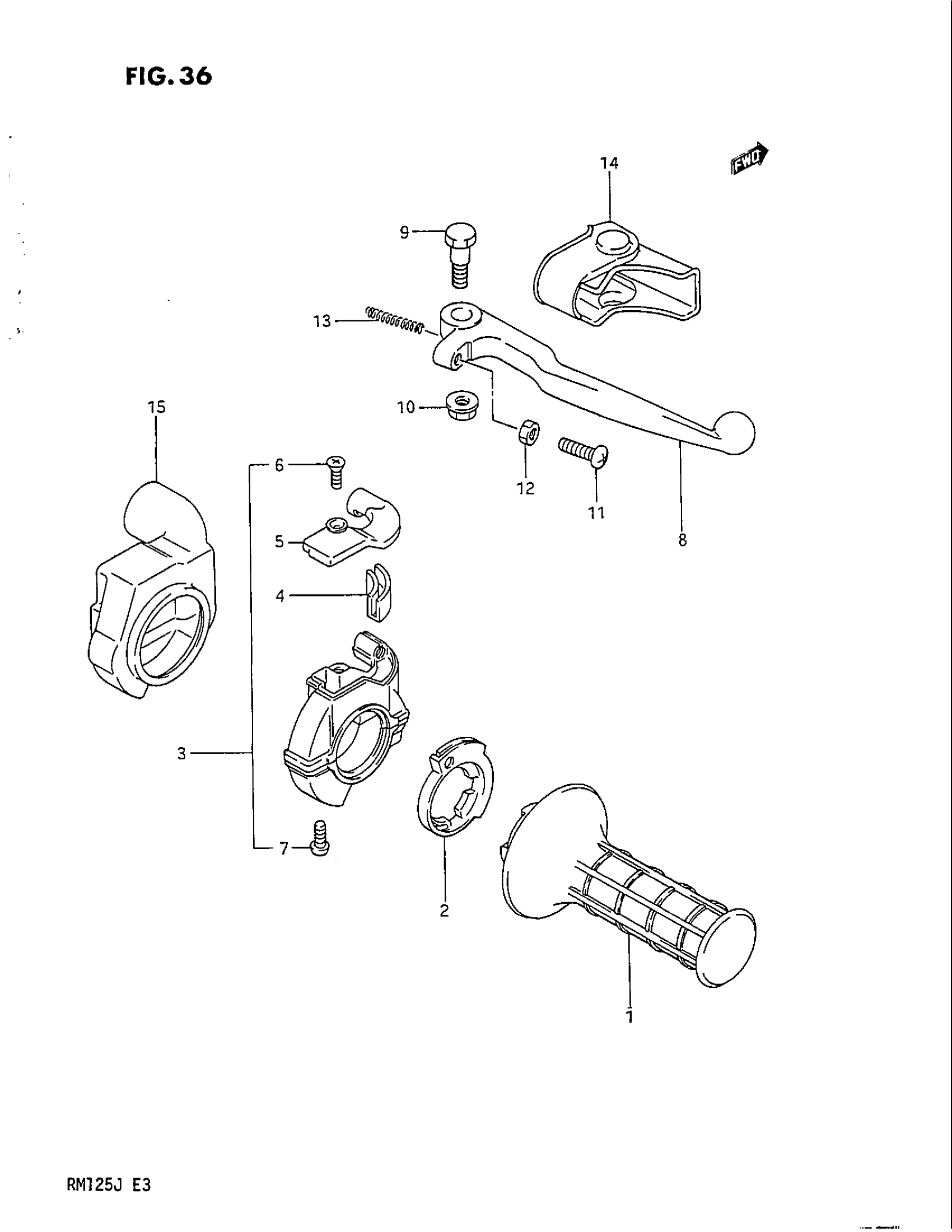

Suzuki RM125 (1988) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, THROTTLE This part replaces 57110-14300.

57110-27C00

$24.14

2

ROTOR, THROTTLE | MODEL G

57114-20410

$6.80

2

ROTOR, THROTTLE | MODEL H/J

57114-14301

Unavailable

3

CASE ASSY, THROTTLE | MODEL G

57100-20411

Unavailable

3

CASE ASSY, THROTTLE | MODEL H/J; Includes Item(s) 4 - 7

57100-14302

Unavailable

4

GUIDE, PIECE | MODEL G

57122-20410

$7.22

4

GUIDE, PIECE | MODEL H/J

57122-14301

Unavailable

5

COVER | MODEL G

57129-20411

$13.50

5

COVER | MODEL H/J

57129-14302

Unavailable

6

SCREW This part replaces 02132-04065.

02122-0410A

$1.22

7

SCREW This part replaces 02112-05168.

02112-05167

$1.97

8

LEVER, BRAKE

57421-14502

Unavailable

9

BOLT, BRAKE LEVER

57431-14500

$5.75

10

NUT This part replaces 57442-14500.

08316-1006B

$2.50

11

BOLT, ADJUST

57431-14511

$5.46

12

NUT This part replaces 08310-12055.

08310-0005A

$1.83

13

SPRING, RETURN This part replaces 57318-14501.

57318-14502

$4.09

14

COVER, BRAKE LEVER

57341-14501

$10.58

15

COVER, THROTTLE CASE

57129-14501

Unavailable
