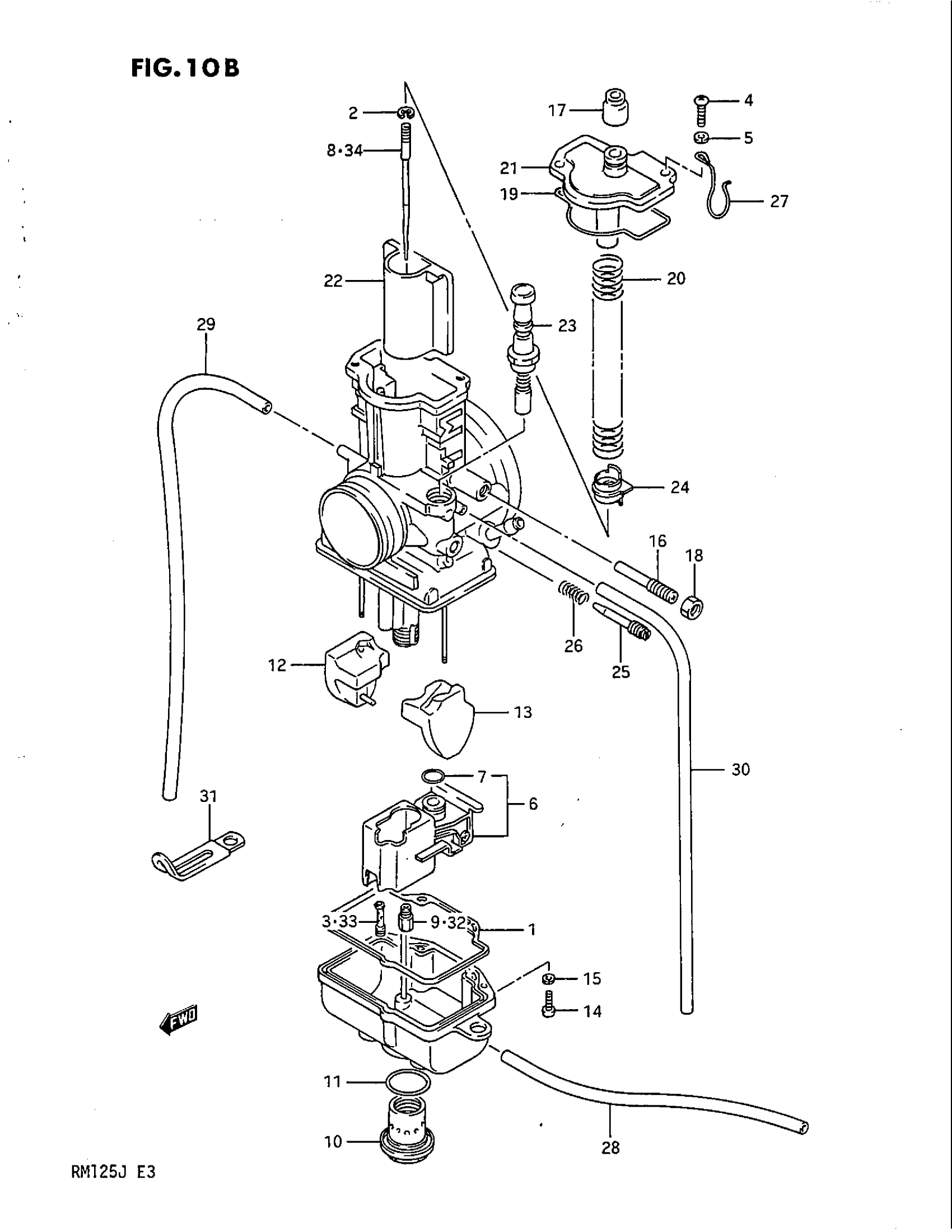

Suzuki RM125 (1988) CARBURETOR (MODEL J) Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 27

13200-01B30

Unavailable

1

O RING, FLOAT CHAMBER

13696-26C00

Unavailable

2

E RING

13394-31210

$4.64

3

JET, PILOT (20)

09492-20008

$10.97

4

SCREW This part replaces 02112-04126.

02112-0412A

$1.49

5

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

6

VALVE ASSY,NEED This part replaces 13370-26C00.

13370-26C01

Unavailable

7

O RING This part replaces 13374-44080.

13374-35C00

$5.99

8

NEEDLE, JET (6EN11-53-2)

13383-01B30

Unavailable

9

JET, MAIN (350)

09491-70011

$11.38

10

CAP, DRAIN

13247-26C00

Unavailable

11

O RING

13249-41310

$4.40

12

FLOAT, RH

13252-01B20

$41.15

13

FLOAT, LH

13252-01B21

Unavailable

14

SCREW This part replaces 02112-03086.

02112-0308A

$1.80

15

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

16

ADJUSTER

13279-26C00

Unavailable

17

.CAP This part replaces 13681-04010.

13681-04011

$4.93

18

NUT

13607-47070

$3.13

19

O RING, TOP CAP

13251-26C00

$12.10

20

SPRING, THROTTLE VALVE

13573-26C00

Unavailable

21

CAP, TOP

13261-01B30

Unavailable

22

VALVE, THROTTLE (CA:6.0)

13551-01B30

Unavailable

23

PLUNGER

13411-26C00

Unavailable

24

RING

13424-26C00

Unavailable

25

SCREW, PILOT (1.0)

13267-09400

$7.02

26

SPRING

13268-35010

$4.48

27

CLIP

13692-00B20

Unavailable

28

HOSE This part replaces 09351-30503-320.

09351-30001-600

$3.57

29

HOSE (3.5X6.5X600) This part replaces 09351-35653-440.

09351-35653-600

$4.64

30

HOSE (3.5X6.5X600) | L:440->400 This part replaces 09351-35653-440.

09351-35653-600

$4.64

31

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

32

JET, MAIN (310) | OPT

09491-62005

$11.83

32

JET, MAIN (320) | OPT

09491-64002

$11.83

32

JET, MAIN (330) | OPT

09491-66002

$11.38

32

JET, MAIN (340) | OPT

09491-68002

$11.38

32

JET, MAIN (360) | OPT

09491-72011

$11.83

32

JET, MAIN (370) | OPT

09491-74003

$11.38

32

JET, MAIN (380) | OPT

09491-76003

$11.83

33

JET, PILOT (15) | OPT

09492-15007

$11.38

33

JET, PILOT (17.5) | OPT

09492-17006

$9.50

33

JET, PILOT (25) | OPT

09492-25005

$9.55

33

JET, PILOT (30) | OPT

09492-30006

$9.55

34

NEEDLE, JET (6EN11-51) | OPT

13383-01B35

Unavailable

34

NEEDLE, JET (6EN11-52) | OPT

13383-01B40

Unavailable

34

NEEDLE, JET (6EN11-54) | OPT

13383-01B50

Unavailable

34

NEEDLE, JET (6EN11-55) | OPT

13383-01B45

Unavailable
