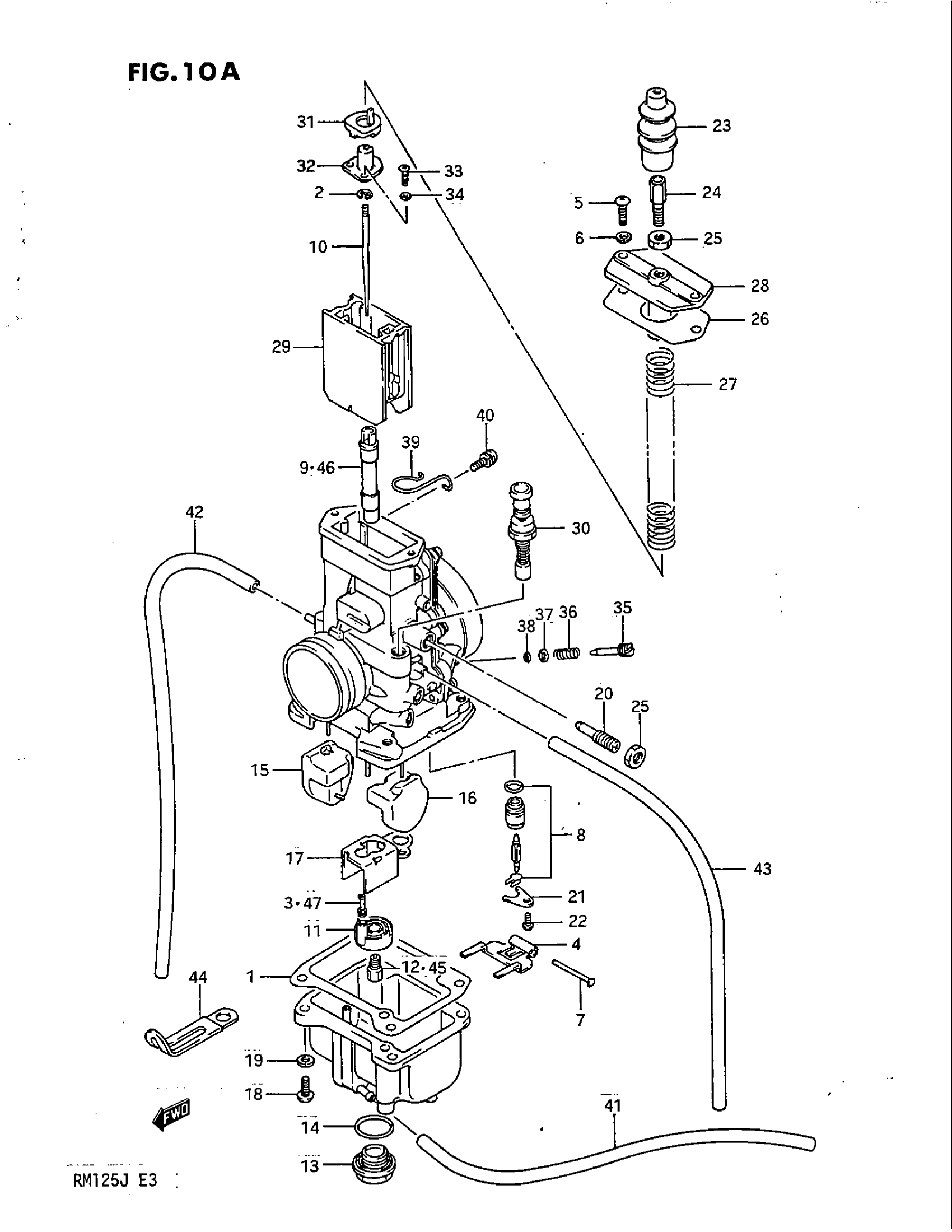

Suzuki RM125 (1988) CARBURETOR (MODEL H E.NO.106551-) Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 40

13200-01B21

Unavailable

1

GASKET

13251-01B21

Unavailable

2

E RING

13394-31210

$4.64

3

JET, PILOT (30) This part replaces 09492-30003.

09492-30006

$9.55

4

ARM

13253-40010

Unavailable

5

SCREW This part replaces 02112-04126.

02112-0412A

$1.49

6

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

7

PIN

13254-92311

$2.07

8

VALVE ASSY,NEED This part replaces 13370-14300.

13370-43B01

Unavailable

9

JET, NEEDLE (R-6)

09494-00558

Unavailable

10

NEEDLE, JET (6DJ4-4)

13383-01B15

Unavailable

11

RING

13331-01B21

Unavailable

12

JET, MAIN (330)

09491-66002

$11.38

13

CAP, DRAIN

13247-32210

$15.23

14

O RING

13249-41310

$4.40

15

FLOAT, RH

13252-01B20

$41.15

16

FLOAT, LH

13252-01B21

Unavailable

17

PLATE

13259-00B20

Unavailable

18

.SCREW This part replaces 02112-05166.

02112-0516A

$1.49

19

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

20

ADJUSTER

13267-14500

Unavailable

21

PLATE, NEEDLE VALVE

13373-39110

$6.64

22

SCREW This part replaces 02112-04066.

02112-0406B

$1.55

23

CAP, ADJUSTER

13681-41510

$11.68

24

ADJUSTER, CABLE

13577-41612

$7.01

25

NUT

13661-16600

$4.64

26

GASKET, TOP

13266-14500

Unavailable

27

SPRING, THROTTLE VALVE

13573-14500

Unavailable

28

CAP, TOP

13261-14500

Unavailable

29

VALVE, THROTTLE (CA:6.0)

13551-01B21

Unavailable

30

PLUNGER

13400-14500

Unavailable

31

RING

13629-16700

Unavailable

32

CONNECTOR

13398-16700

Unavailable

33

SCREW This part replaces 02112-03106.

02112-0310B

$2.72

34

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

35

SCREW, PILOT (1 1/4)

13269-48030

Unavailable

36

SPRING,THROTTLE SCREW

13268-48700

$4.34

37

WASHER This part replaces 13277-44080.

13291-29900

$1.98

38

O-RING This part replaces 13295-29900.

13295-29901

$4.34

39

CLIP

13692-14500

Unavailable

40

SCREW

13601-04148

$2.81

41

HOSE 4X7X600 This part replaces 09343-04104.

09352-40706-600

$5.11

42

HOSE 4X7X600 This part replaces 09343-04104.

09352-40706-600

$5.11

43

HOSE 4X7X600 This part replaces 09343-04104.

09352-40706-600

$5.11

44

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

45

JET, MAIN (290) | OPT

09491-58002

Unavailable

45

JET, MAIN (300) | OPT

09491-60007

$13.05

45

JET, MAIN (320) | OPT

09491-64002

$11.83

45

JET, MAIN (340) | OPT

09491-68002

$11.38

45

JET, MAIN (350) | OPT

09491-70011

$11.38

45

JET, MAIN (360) | OPT

09491-72011

$11.83

46

JET, NEEDLE (R-4) | OPT

09494-00557

Unavailable

46

JET, NEEDLE (R-8) | OPT

09494-00321

Unavailable

46

JET, NEEDLE (S-0) | OPT

09494-00559

Unavailable

46

JET, NEEDLE (S-2) | OPT

09494-00569

Unavailable

47

JET, PILOT (20) | OPT

09492-20008

$10.97

47

JET, PILOT (40) | OPT

09492-40004

$10.05

47

JET, PILOT (50) | OPT

09492-50010

Unavailable
