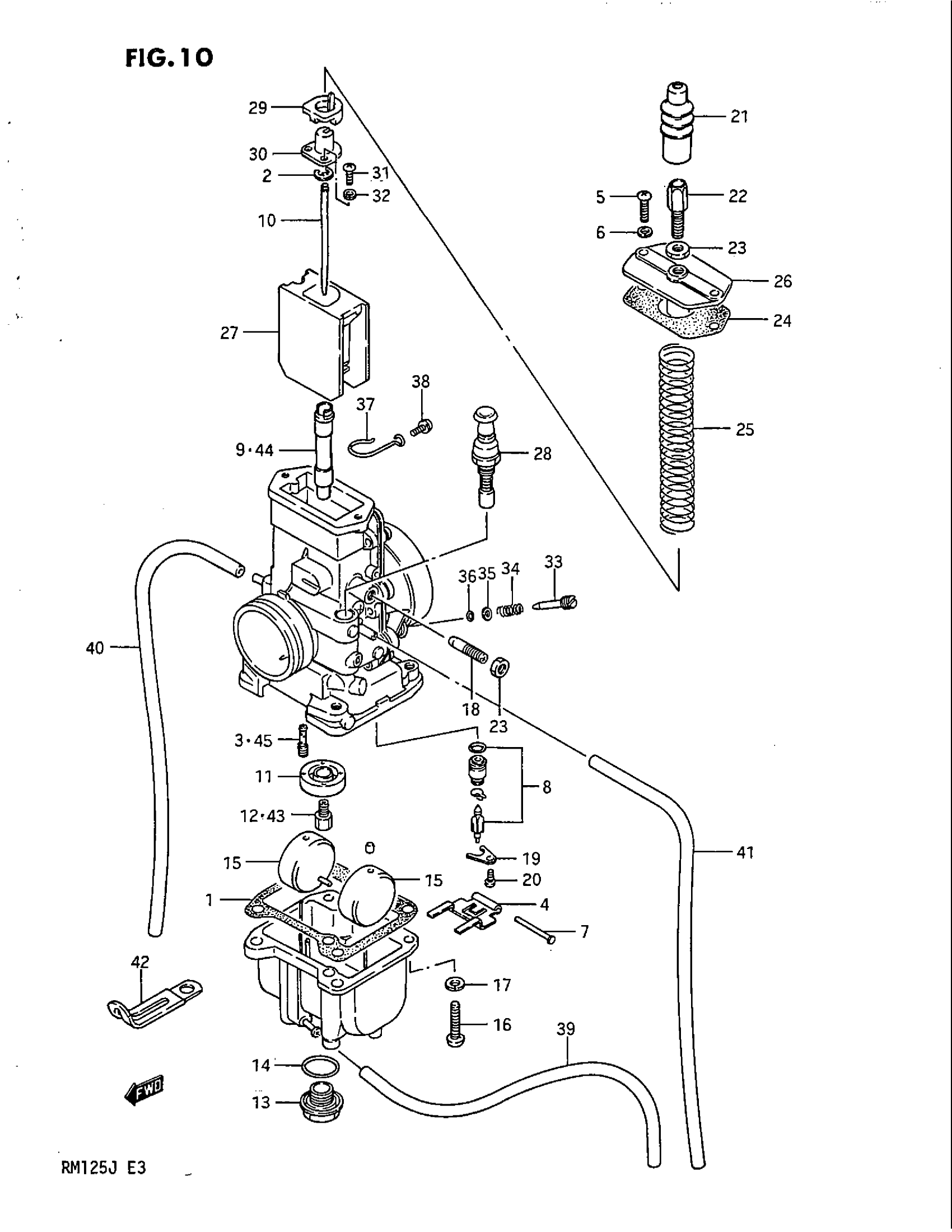

Suzuki RM125 (1988) CARBURETOR (MODEL G/MODEL H -E.NO.106550) Diagram

#

Description
Price

CARBURETOR ASSY | MODEL G

13200-01B00

Unavailable

CARBURETOR ASSY | MODEL H ~E.NO.106550TO 13200-01B21; Includes Item(s) 1 - 38 This part replaces 13200-01B20.

13200-01B21

Unavailable

1

GASKET

13251-14300

Unavailable

2

E RING | MODEL G

13394-10010

$5.45

2

E RING | MODEL H

13394-31210

$4.64

3

JET, PILOT (55) | MODEL G

09492-55005

Unavailable

3

JET, PILOT (40) | MODEL H

09492-40004

$10.05

4

ARM

13253-40010

Unavailable

5

SCREW This part replaces 02112-04126.

02112-0412A

$1.49

6

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

7

PIN

13254-92311

$2.07

8

VALVE ASSY,NEED This part replaces 13370-14300.

13370-43B01

Unavailable

9

JET, NEEDLE (R-0) | MODEL G

09494-00357

Unavailable

9

JET, NEEDLE (R-6) | MODEL H

09494-00558

Unavailable

10

NEEDLE, JET (6FP55-2) | MODEL G

13383-14510

Unavailable

10

NEEDLE, JET (6DJ4-4) | MODEL H

13383-01B15

Unavailable

11

RING

13331-14510

Unavailable

12

JET, MAIN (280) | MODEL G This part replaces 09491-56001.

09491-56003

Unavailable

12

JET, MAIN (310) | MODEL H

09491-62005

$11.83

13

CAP, DRAIN

13247-32210

$15.23

14

O RING

13249-41310

$4.40

15

FLOAT

13252-18620

$21.82

16

.SCREW This part replaces 02112-05166.

02112-0516A

$1.49

17

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

18

ADJUSTER

13267-14500

Unavailable

19

PLATE, NEEDLE VALVE

13373-39110

$6.64

20

SCREW This part replaces 02112-04066.

02112-0406B

$1.55

21

CAP, ADJUSTER

13681-41510

$11.68

22

ADJUSTER, CABLE

13577-41612

$7.01

23

NUT

13661-16600

$4.64

24

GASKET, TOP

13266-14500

Unavailable

25

SPRING, THROTTLE VALVE

13573-14500

Unavailable

26

CAP, TOP | .106551~

13261-14500

Unavailable

27

VALVE, PISTON (CA:4.0) | MODEL G This part replaces 13551-14500.

13551-01C00

Unavailable

27

VALVE, THROTTLE (CA:6.0) | MODEL H

13551-01B20

Unavailable

28

PLUNGER

13400-14500

Unavailable

29

RING

13629-16700

Unavailable

30

CONNECTOR

13398-16700

Unavailable

31

SCREW This part replaces 02112-03106.

02112-0310B

$2.72

32

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

33

SCREW, PILOT (1 1/2)

13269-48030

Unavailable

34

SPRING,THROTTLE SCREW

13268-48700

$4.34

35

WASHER This part replaces 13277-44080.

13291-29900

$1.98

36

O-RING This part replaces 13278-44080.

13295-29901

$4.34

37

CLIP

13692-14500

Unavailable

38

SCREW

13601-04148

$2.81

39

HOSE 4X7X600 This part replaces 09343-04104.

09352-40706-600

$5.11

40

HOSE 4X7X600 This part replaces 09343-04104.

09352-40706-600

$5.11

41

HOSE 4X7X600 This part replaces 09343-04104.

09352-40706-600

$5.11

42

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

43

JET, MAIN | OPT This part replaces 09491-52001.

09491-52006

$10.38

43

JET, MAIN (270) | OPT This part replaces 09491-54001.

09491-54002

Unavailable

43

JET, MAIN (290) | OPT

09491-58002

Unavailable

43

JET, MAIN (300) | OPT

09491-60007

$13.05

43

JET, MAIN (320) | OPT

09491-64002

$11.83

43

JET, MAIN (330) | OPT

09491-66002

$11.38

43

JET, MAIN (340) | OPT

09491-68002

$11.38

43

JET, MAIN (350) | OPT

09491-70011

$11.38

44

JET, NEEDLE (Q-8) | OPT

09494-00393

Unavailable

44

JET, NEEDLE (R-0) | OPT

09494-00357

Unavailable

44

JET, NEEDLE (R-2) | OPT

09494-00453

Unavailable

44

JET, NEEDLE (R-4) | OPT

09494-00403

Unavailable

44

JET, NEEDLE (R-6) | OPT

09494-00404

Unavailable

45

JET, PILOT (40) | OPT

09492-40004

$10.05

45

JET, PILOT (50) | OPT

09492-50010

Unavailable

45

JET, PILOT (60) | OPT.106551~

09492-60004

Unavailable
