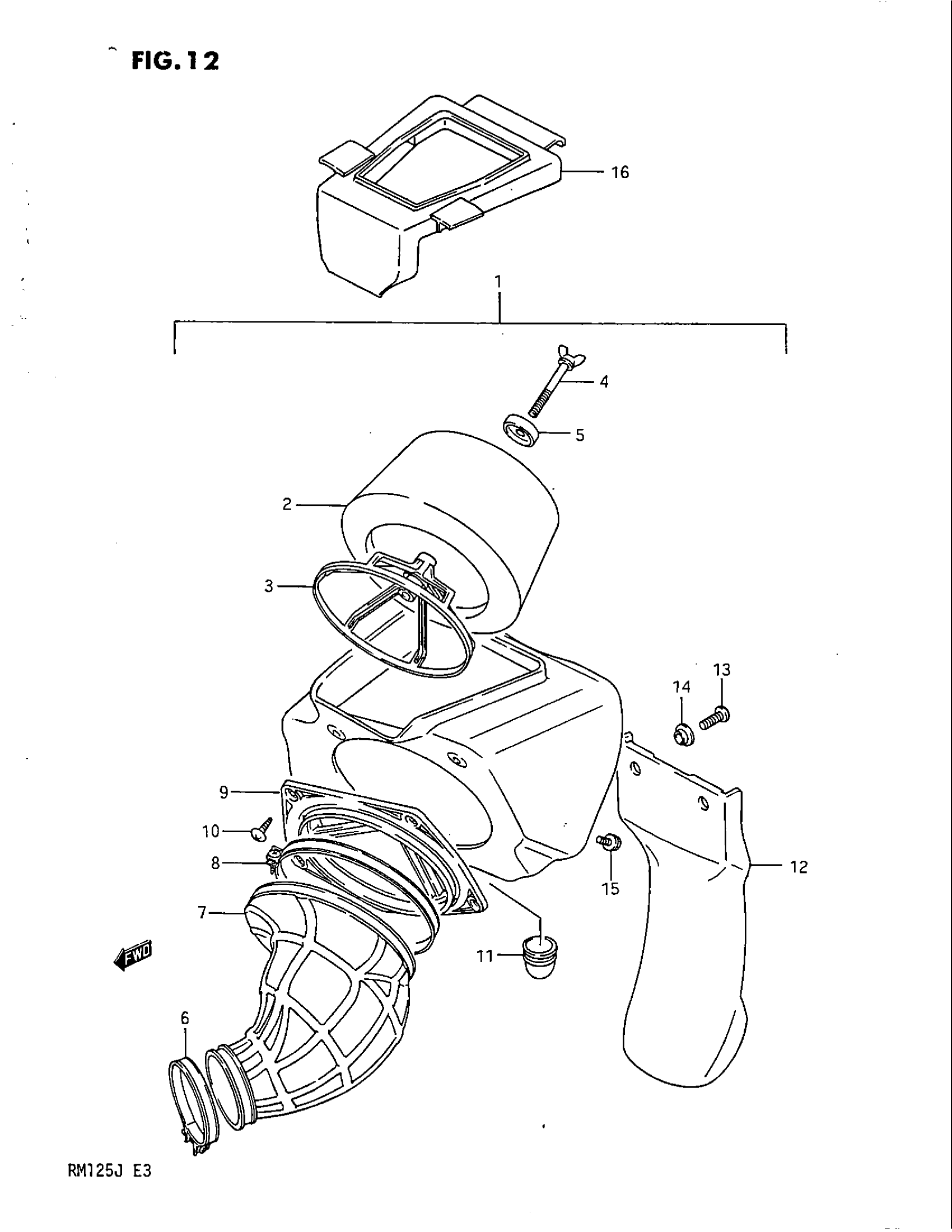

Suzuki RM125 (1988) AIR CLEANER (MODEL H/J) Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL H

13700-01B21

Unavailable

1

CLEANER ASSY, AIR | MODEL J; Includes Item(s) 2 - 14

13700-01B30

Unavailable

2

FILTER This part replaces 13780-00B20.

13780-28C10

Unavailable

3

HOLDER, FILTER

13791-00B20

Unavailable

4

BOLT, WING

13831-02B00

$5.80

5

WASHER

13792-13A01

$4.34

6

CLAMP | MODEL H This part replaces 09402-64208.

09402-64203

$6.58

6

CLAMP | MODEL J

09402-68208

$5.58

7

TUBE, OUTLET | MODEL H

13881-01B21

Unavailable

7

TUBE, OUTLET | MODEL J

13881-01B30

Unavailable

8

CLAMP This part replaces 13826-01B20.

13826-43D00

Unavailable

9

BASE, FILTER This part replaces 13790-01B20.

13790-05D00

Unavailable

10

SCREW This part replaces 03241-05125.

03241-0512A

$1.49

11

TUBE, DRAIN

13873-18900

Unavailable

12

GUARD, MUD

13738-01B00

Unavailable

13

SCREW

02142-06167

$1.49

14

SPACER

13838-02B00

$3.56

15

BOLT | MODEL H This part replaces 01517-06164.

01550-0616A

$1.97

15

BOLT, CLAMP | MODEL J This part replaces 01517-06123.

01550-0612A

$1.97

16

GUARD, MUD | MODEL H This part replaces 13739-00B20.

13739-00B22

Unavailable

16

GUARD, MUD | MODEL J

13739-00B22

Unavailable
