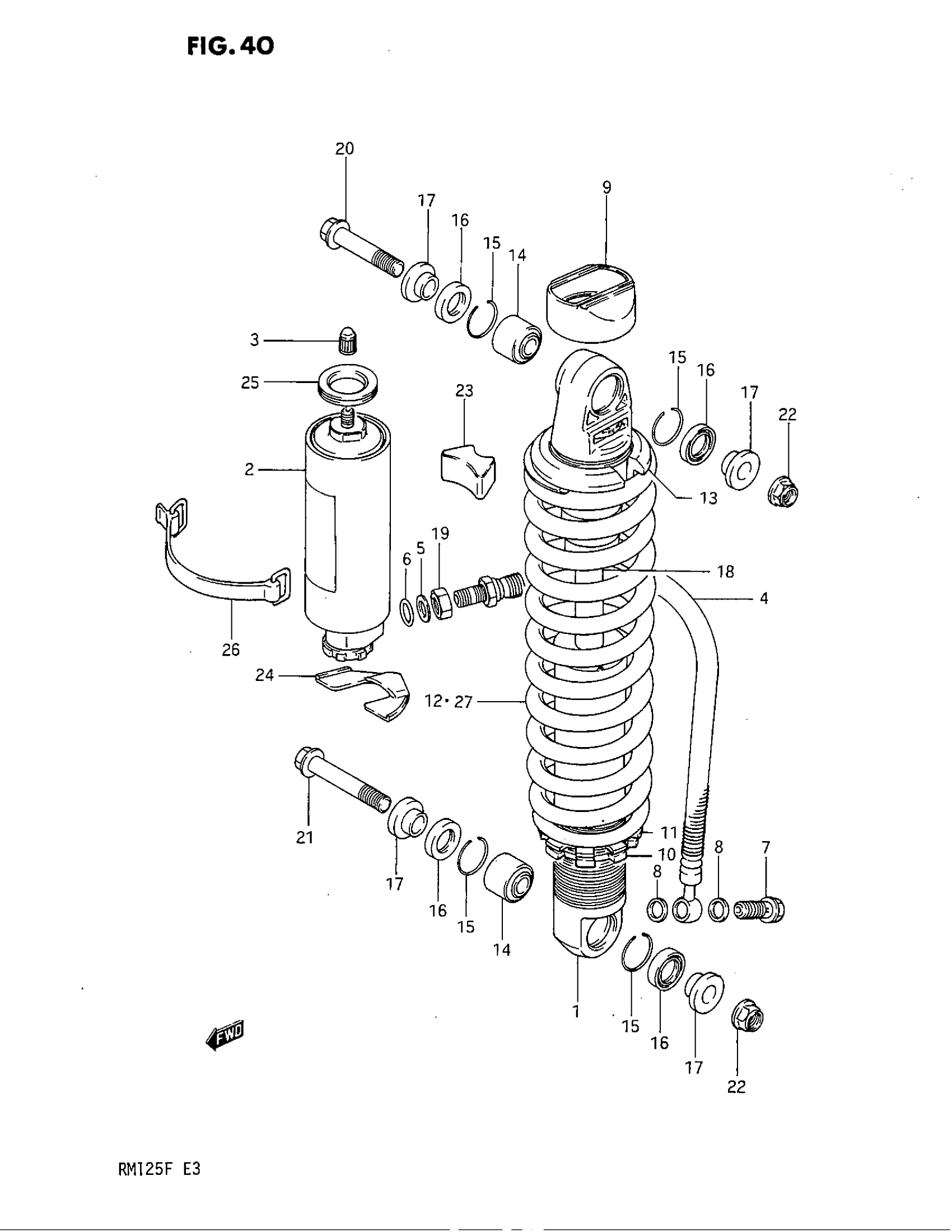

Suzuki RM125 (1985) SHOCK ABSORBER (MODEL E) Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR | Includes Item(s) 2 - 19

62100-14510

Unavailable

2

TANK

62270-14500

Unavailable

3

CAP

51294-20400

$7.37

4

HOSE

62280-14500

Unavailable

5

WASHER

62285-14100

Unavailable

6

O RING

62154-40200

Unavailable

7

BOLT

62281-14140

Unavailable

8

GASKET

51148-41310

$2.26

9

CAP

62179-38200

Unavailable

10

NUT

62194-14140

Unavailable

11

GUIDE, SPRING

62191-14140

Unavailable

12

SPRING

62211-14500

Unavailable

13

GUIDE, SPRING

62225-14500

Unavailable

14

BEARING, REAR (10x24x14.5) This part replaces 62175-43400.

62175-00B00

$61.15

15

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$1.99

16

DUST SEAL

62226-43410

Unavailable

17

COLLAR

62684-43401

$10.75

18

PISTON ROD

62120-14500

Unavailable

19

NUT, FIXED DRIVE FACE This part replaces 08310-22128.

09140-12039

$3.05

20

BOLT (10X58) This part replaces 62311-14500.

09103-10428

$5.07

21

BOLT, LOWER

09103-10030

$6.45

22

NUT This part replaces 08319-31108.

08319-31107

$2.73

23

CUSHION,RESEAVO This part replaces 62331-14500.

62331-14502

Unavailable

24

CUSHION, TANK LOWER

62423-14500

Unavailable

25

CUSHION, TANK UPPER

62423-14510

Unavailable

26

BAND This part replaces 09462-00082.

09462-00082-XC0

Unavailable

27

SPRING | OPT This part replaces 62211-14507.

62211-14500

Unavailable
