1985 Suzuki RM125 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1985 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

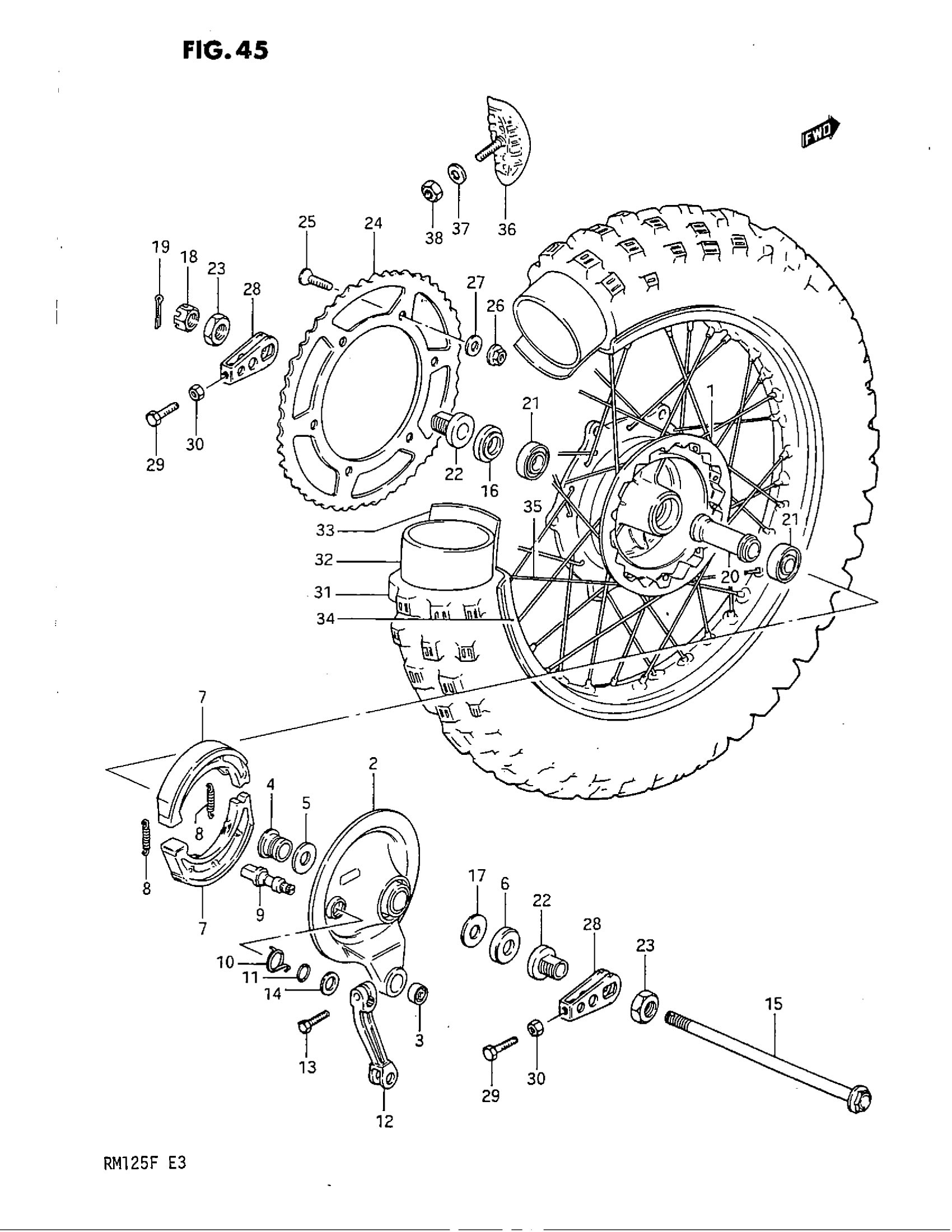

1985 Suzuki RM125 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 64110-14110.

64110-01B02

1
Out of stock

2

PANEL, REAR HUB | Includes Item(s) 3 This part replaces 64200-14880.

64200-14881

1
Out of stock

3

BEARING This part replaces 64352-14500.

09269-08002

1
Out of stock

4

SPACER, PANEL

64213-14100

1
Out of stock

5

DUST SEAL, INNER

09283-20031

1
Out of stock

6

COVER, PANEL DUST SEAL

64845-14100

1
Out of stock

7

SHOE SET, BRAKE This part replaces 64410-14100.

64400-14820

2
Out of stock

8

SPRING This part replaces 09443-07001.

09443-07025

2
Out of stock

9

CAM, BRAKE

54441-14101

1
Out of stock

10

SPRING This part replaces 09448-30007.

09448-30007-XC0

1
Out of stock

11

DUST SEAL

09280-12001

1
Out of stock

12

LEVER, BRAKE CAM

64451-14500

1
Out of stock

13

BOLT This part replaces 01107-06258.

01500-06257

1
Out of stock

14

WASHER (12.5X20X1)

09160-12011

1
Out of stock

15

AXLE, REAR

64711-14510

1
Out of stock

16

SPACER, AXLE LH

64750-14500

1
Out of stock

17

WASHER, GOVERNOR THRUST This part replaces 08211-15281.

09181-15223

1
Out of stock

18

NUT

09141-14004

1
Out of stock

19

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

20

SPACER, HUB BEARING

64730-14101

1
Out of stock

21

BEARING

08123-62027

2
Out of stock

22

SPACER, CHAIN ADJUSTER

64781-14500

2
Out of stock

23

NUT

09140-22006

2
Out of stock

24

SPROCKET, REAR (NT:48) | TO 64511-40285WITH 27600-14130 This part replaces 64511-14500.

64511-14D60

1
Out of stock

24

SPROCKET, REAR (NT:48) This part replaces 64511-40285.

64511-14D60

1
Out of stock

24

SPROCKET, REAR (NT:52) | OPT

64511-40266

1
Out of stock

24

SPROCKET,RR (NT:50) | OPT This part replaces 64511-40271.

64511-36E00

1
Out of stock

25

SCREW

09120-08004

6
Out of stock

26

NUT This part replaces 08319-31088.

08319-3108A

6
Out of stock

27

WASHER This part replaces 08322-11088.

08322-01087

6
Out of stock

28

ADJUSTER, CHAIN This part replaces 61410-40200.

61410-40201

2
Out of stock

29

BOLT (8X50) This part replaces 09104-08006.

09104-08034

2
Out of stock

30

NUT This part replaces 08310-12088.

08310-00087

2
Out of stock

31

TIRE, REAR (120/80-18) | DUNLOP

65100-14550

1
Out of stock

32

TUBE ASSY, WHEEL INNER This part replaces 65200-14540.

65200-42AA1

1
Out of stock

33

PROTECTOR, INNER TUBE This part replaces 65261-14540.

65261-15D00

1
Out of stock

34

RIM, WHEEL (185X18) GOLD

65311-14510

1
Out of stock

35

SPOKE ASSY, REAR

65320-14112

1
Out of stock

36

STOPPER, BEAD This part replaces 65270-46910.

65270-43D00

1
Out of stock

37

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

38

NUT This part replaces 08310-12088.

08310-00087

1
Out of stock
